Electric motors are becoming smaller, lighter, faster, and more powerful across automotive, industrial automation, robotics, appliances, pumps, power tools, and other applications. As motor designs become more compact and operating conditions become more demanding, the method used to secure permanent magnets becomes increasingly important. In many permanent magnet motors, the adhesive is not simply a means of attaching two components. It is a structural material that must maintain magnet position while resisting heat, vibration, centrifugal forces, chemicals, and long-term mechanical stress.
Epoxy adhesive is widely used for motor magnet bonding because it can provide high bond strength, good dimensional stability, chemical resistance, and reliable adhesion to metals and magnetic materials. Depending on the formulation, epoxy adhesives can also be engineered for high-temperature operation, rapid processing, gap filling, electrical insulation, and resistance to thermal cycling.
This article explains the key properties of epoxy adhesive for motor magnet bonding, common applications, major benefits, selection factors, surface preparation, curing considerations, and manufacturing practices.
Epoxy adhesive for motor magnet bonding is a structural adhesive designed to secure permanent magnets to motor components such as rotors, stator housings, sleeves, or other supporting structures. The adhesive forms a durable bond between materials that may have different surface properties and thermal expansion behavior.
Typical magnet materials include neodymium iron boron magnets, ferrite magnets, and other permanent magnetic materials. The mating components may include steel, stainless steel, aluminum, engineering plastics, composites, or coated metal surfaces.
In a permanent magnet motor, magnets must remain accurately positioned during operation. Even a small amount of magnet movement can affect the magnetic air gap, balance, efficiency, noise, vibration, and overall reliability of the motor. Adhesive bonding can therefore become an important part of the motor assembly process rather than a secondary fastening method.
Industrial adhesive manufacturers commonly identify magnet-to-rotor bonding, magnet-to-housing bonding, stator bonding, and other motor assembly operations as important applications for electric motor adhesives. Adhesive bonding can also reduce the need for mechanical fasteners and help manufacturers accommodate dimensional tolerances.
Permanent magnets inside an electric motor are exposed to several forms of stress simultaneously. The adhesive must therefore provide more than simple initial adhesion.
In a rotating motor, magnets attached to a rotor experience centrifugal forces. The force becomes increasingly significant as rotor speed increases. High-speed motors therefore require an adhesive system capable of maintaining sufficient bond strength under continuous dynamic loading.
A properly selected epoxy adhesive can provide a rigid structural connection that helps prevent magnet displacement during rotation. Adhesive selection should consider the actual rotor speed, magnet mass, bond area, joint geometry, operating temperature, and safety requirements.
Electric motors generate vibration during normal operation. Additional vibration can come from bearings, imbalance, electromagnetic forces, connected machinery, or road conditions in automotive applications.
A motor magnet adhesive must maintain adhesion under repeated loading. Depending on the formulation, a toughened epoxy can provide a useful balance between high strength and resistance to vibration and shock.
Motor temperatures can rise significantly during operation. The adhesive therefore needs to retain adequate mechanical performance at the actual service temperature rather than only at room temperature.
High-temperature epoxy formulations are available for demanding motor applications. Some specialized motor magnet adhesives are designed for high-temperature applications and can maintain structural performance at elevated temperatures.
A motor may repeatedly move from a relatively cool condition to an elevated operating temperature and then cool down again. The magnet, rotor, adhesive, and surrounding materials may have different coefficients of thermal expansion.
Repeated expansion and contraction can create stress in the bonded joint. An epoxy formulation with suitable toughness, thermal stability, and adhesion can help the joint withstand thermal cycling over the expected service life.
Motors may be exposed to moisture, lubricants, cleaning agents, coolants, salt, dust, and other contaminants. Depending on the application, the adhesive may need resistance to specific chemicals and environmental conditions.
Epoxy adhesives are often selected because they can provide good resistance to moisture and chemicals when properly formulated and cured. However, chemical resistance should always be verified against the actual operating environment.
The best adhesive is not necessarily the one with the highest room-temperature tensile strength. Motor magnet bonding is a system-level application, so several properties should be evaluated together.
Shear strength is particularly important when the adhesive must resist forces acting parallel to the bonded interface. In many magnet bonding designs, the adhesive joint is exposed to a combination of shear, tension, peel, and dynamic loads.
A high-strength epoxy can provide strong adhesion to suitable metal and magnetic surfaces, but test results should be evaluated using the actual substrates and joint design.
The glass transition temperature, or Tg, is an important consideration for thermosetting epoxy adhesives. It indicates a major transition in polymer behavior as temperature increases.
For motor applications operating at elevated temperatures, a suitable Tg can help the adhesive retain stiffness and reduce the risk of excessive creep. However, Tg should not be treated as the only indicator of service temperature. Actual hot strength, thermal aging, joint geometry, and formulation-specific data are also important.
Creep refers to gradual deformation under sustained load. For motor magnets, excessive creep can cause the magnet to move from its designed position over time.
A rigid structural epoxy with suitable high-temperature performance can help minimize magnet movement. This is particularly important in high-speed motors where magnet positioning affects rotor balance and electromagnetic performance.
Motor magnet bonding may involve a combination of steel, coated magnets, ferrite, neodymium magnets, aluminum, composites, and engineered plastics.
The adhesive should be compatible with the actual surfaces. Surface coatings on magnets can have a significant influence on adhesion, so the adhesive should be tested on the production-grade magnet finish rather than on an idealized laboratory surface.
Viscosity affects manufacturing. An adhesive that is too fluid may run away from the bond line or contaminate surrounding components. An adhesive that is too viscous may be difficult to dispense into narrow or complex joints.
Thixotropic epoxy formulations can help maintain position after application while still allowing controlled dispensing.
Manufacturing tolerances can create small gaps between the magnet and its mating surface. An adhesive with suitable gap-filling capability can help maintain contact and reduce sensitivity to minor dimensional variation.
However, the bond line should still be designed within the adhesive manufacturer's recommended thickness range. Excessive adhesive thickness can change curing behavior and mechanical performance.
Epoxy adhesives are used in a variety of electric motor designs.
One of the most important applications is bonding permanent magnets to a rotor. The adhesive secures the magnets while maintaining their designed position during rotation.
This application is common in permanent magnet motors, brushless DC motors, permanent magnet synchronous motors, servo motors, traction motors, and other motor architectures.
Electric vehicles place particularly demanding requirements on motor components. Traction motors may experience high rotational speeds, temperature changes, vibration, and long operating cycles.
For these applications, the adhesive must be selected according to the motor's actual thermal, mechanical, chemical, and durability requirements. Specialized high-temperature magnet adhesives are available for demanding motor applications.
Servo motors require accurate and stable positioning. Magnet movement can affect motor characteristics and control performance.
A structural epoxy adhesive can help maintain magnet positioning while providing a durable connection between the magnet and rotor assembly.
Brushless DC motors are widely used in fans, pumps, appliances, power tools, robotics, and other equipment. Permanent magnets are commonly incorporated into the rotor, creating a need for reliable magnet fixation.
The adhesive must be compatible with the motor's speed, temperature, production cycle, and magnet surface.
Small motors may have limited space for mechanical fastening. Adhesive bonding can provide a compact joining method without adding screws, clips, or other mechanical components.
This approach can help reduce part count and simplify assembly. Adhesives are widely used for securing magnets, shafts, rotors, housings, and other electric motor components.
Adhesive bonding does not require the same mechanical features as screws, clips, or other fasteners. This can give engineers greater freedom when designing compact motor assemblies.
Adhesives can also bond surfaces that are difficult to join mechanically.
A bonded joint may eliminate some mechanical fastening components. Fewer components can simplify assembly, reduce inventory requirements, and potentially lower manufacturing complexity.
Mechanical fasteners can introduce localized stress around holes, threads, or contact points. Adhesive joints distribute load over a bonded area, which can help reduce localized stress concentrations when the joint is properly designed.
Adhesive bonding has also been recognized as a way to improve stress distribution, reduce vibration and noise, and support compact motor designs.
A properly selected adhesive can help keep magnets securely positioned under repeated vibration. This can be particularly valuable in automotive motors, industrial equipment, power tools, and other dynamic systems.
Epoxy adhesives can be supplied in different packaging and dispensing formats, including cartridges and automated metering systems. This makes them suitable for controlled production environments.
Depending on the formulation, manufacturers can choose room-temperature curing, heat curing, or specialized activation methods. Process selection should be matched to production speed and equipment.
The choice between one-part and two-part epoxy depends heavily on the manufacturing process.

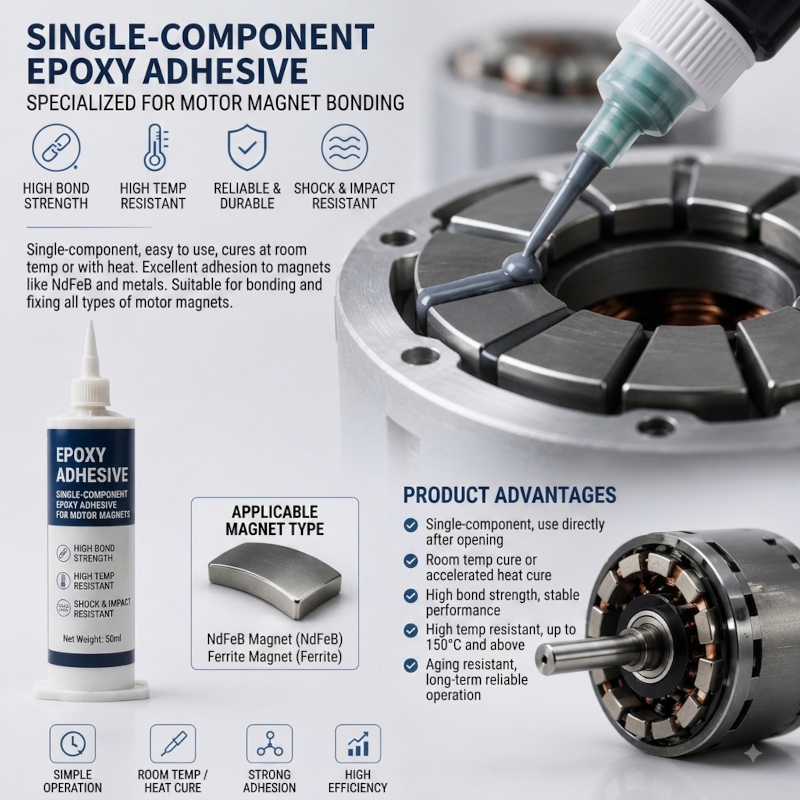

One-part epoxy adhesives are supplied ready to use and generally do not require on-site mixing. Many are designed for heat curing.
Their advantages can include consistent mixing, easier automated dispensing, and long working life before activation. They can be particularly attractive for high-volume production where controlled oven curing is already available.
Some one-part epoxy adhesives are specifically designed for motor magnet bonding and can cure at relatively moderate temperatures.
Two-part epoxy adhesives contain a resin and hardener that are mixed before application. They can offer flexible processing options and may cure at room temperature or with additional heat depending on the formulation.
Two-part systems can be useful when the production process cannot accommodate a high-temperature oven or when the manufacturer needs a defined working time before curing.
The mixing ratio, pot life, cure schedule, and final mechanical properties should be carefully controlled.
Surface preparation is one of the most important factors affecting adhesive performance.
Oil, grease, dust, moisture, release agents, and other contaminants can reduce adhesion. Surfaces should be cleaned using a method compatible with the substrate and production process.
Particular attention should be paid to magnets because some may have protective coatings such as nickel, epoxy, or other surface finishes.
Depending on the substrate and adhesive system, controlled abrasion may improve mechanical adhesion. The method should not damage the magnet coating or change critical dimensions.
Some substrates or coatings may benefit from a primer. If a primer is used, compatibility with the adhesive and the magnet coating should be validated.
Laboratory coupon testing is useful, but production validation should include the actual magnet material, coating, rotor material, bond line, curing process, and environmental conditions.
Curing is as important as adhesive selection.
The manufacturer should control adhesive storage, mixing, dispensing, assembly time, fixture time, cure temperature, cure duration, and post-cure requirements where applicable.
For automated production, consistent dispensing is especially important. Variations in adhesive volume or bond-line thickness can lead to inconsistent joint performance.
The assembly process should also maintain accurate magnet positioning before the adhesive develops sufficient handling strength. Some specialized adhesives use fast tacking or dual-activation approaches to hold components in position before final curing.
Choosing an epoxy should begin with the motor's operating conditions rather than the adhesive's marketing description.
Consider the following factors:
Determine the continuous and peak temperature at the adhesive joint. Do not select an adhesive based only on its nominal temperature rating. Hot strength and long-term aging data are more useful for demanding applications.
Rotor speed affects centrifugal loading. High-speed applications require careful evaluation of bond strength, joint geometry, magnet mass, and safety factors.
Test the adhesive against the actual magnet grade and surface coating. Neodymium magnets with different coatings can behave differently during bonding.
The adhesive manufacturer's recommended bond-line range should be considered during fixture and component design.
Check whether the factory can support room-temperature curing, heat curing, or another activation method. Cure time can directly affect production capacity.
Consider exposure to oil, coolant, cleaning chemicals, humidity, salt spray, and other environmental factors.
Evaluate shear strength, tensile strength, peel resistance, impact resistance, vibration resistance, and fatigue behavior according to the actual joint design.
For high-volume manufacturing, the adhesive should be compatible with automated dispensing, mixing, metering, assembly, and curing processes.
If the adhesive has low initial holding strength or the assembly is not properly fixtured, magnets may move before curing.
Excessive adhesive application or excessive assembly pressure can cause adhesive to flow into unwanted areas. This can interfere with rotor clearance or other motor components.
Poor surface preparation, contamination, incompatible coatings, or incorrect curing can reduce bond strength.
An adhesive that performs well at room temperature may lose strength when exposed to elevated temperature. Testing at the actual operating temperature is therefore essential.
Variations in adhesive volume can cause differences in bond-line thickness and final bond strength. Automated dispensing equipment and process monitoring can improve consistency.
A reliable motor magnet bonding process should combine adhesive characterization with production-level validation.
Common evaluation areas include lap shear strength, tensile or pull-off strength, temperature aging, thermal cycling, humidity exposure, chemical resistance, vibration testing, and dimensional inspection.
The exact test program should be determined by the motor design, customer requirements, industry standards, and expected operating environment.
For high-speed rotor applications, mechanical safety validation is especially important. Adhesive performance should be evaluated under conditions representative of actual rotational speed and temperature.
Epoxy is not the only technology available for motor magnet bonding. Acrylic adhesives, anaerobic adhesives, polyurethane systems, adhesive films, and other specialized materials can also be used.
Epoxy is often selected when high structural strength, temperature resistance, chemical resistance, and dimensional stability are important. Acrylic adhesives may offer faster fixture or cure characteristics in some manufacturing processes, while adhesive films can provide controlled application and gap-filling properties.
The best solution depends on the motor architecture, production process, performance requirements, and total cost.
Epoxy adhesive for motor magnet bonding is an important enabling material for modern electric motor manufacturing. As motors become faster, smaller, more powerful, and more efficient, the adhesive must perform as a structural component rather than simply as a conventional glue.
A suitable epoxy adhesive can provide strong magnet fixation, resistance to vibration and thermal cycling, good chemical durability, and reliable performance under demanding operating conditions. It can also support compact designs, reduce mechanical fasteners, improve stress distribution, and enable automated manufacturing.
The most important point is that adhesive selection should be based on the complete application. Motor speed, operating temperature, magnet material, surface coating, bond-line thickness, curing process, chemical exposure, vibration, and long-term durability all need to be considered.
By selecting the correct epoxy formulation and controlling surface preparation, dispensing, magnet positioning, curing, and quality testing, manufacturers can build more reliable motor assemblies and reduce the risk of magnet displacement or premature bond failure.
A structural epoxy specifically designed for electric motor magnet bonding is generally a strong starting point. The best formulation depends on operating temperature, rotor speed, magnet material, coating, bond-line thickness, cure process, and environmental exposure. High-temperature or toughened epoxy may be appropriate for demanding motor applications.
Yes. Epoxy adhesives can be formulated to bond neodymium magnets to steel and other substrates. However, the actual magnet coating and steel surface should be tested because surface condition has a major influence on adhesion.
In many motor applications, yes. The adhesive should maintain sufficient mechanical strength at the actual operating and peak temperatures of the motor. Temperature aging and thermal cycling should be considered rather than relying only on room-temperature strength.
Neither is universally better. One-part epoxy can be advantageous for automated heat-cure production, while two-part epoxy can offer flexible curing conditions and may be suitable where room-temperature or lower-temperature processing is preferred. The choice should match the manufacturing process.
Magnets should generally be clean, dry, and free from oil, dust, and other contaminants. Depending on the coating and adhesive, controlled abrasion or primer may be required. Surface preparation should be validated using the actual production magnet and coating.
A properly formulated and cured structural epoxy can provide good vibration resistance, but performance depends on the formulation and joint design. Vibration testing should be performed under conditions representative of the actual motor.
Common causes include poor surface preparation, insufficient adhesive coverage, incorrect curing, excessive temperature, unsuitable adhesive selection, excessive vibration, thermal cycling, or inadequate joint design. Investigating the failure requires examining both the adhesive and the complete bonding process.
Yes, specialized epoxy adhesives are used in high-speed motor applications. However, the bond must be evaluated against centrifugal forces, operating temperature, magnet mass, bond area, rotor geometry, and safety requirements.
Epoxy can be suitable for EV motor magnet bonding when the selected formulation meets the motor's temperature, mechanical, chemical, durability, and manufacturing requirements. Automotive applications typically require extensive validation because the motor can experience demanding thermal and vibration conditions.
Reliability can be improved by selecting an application-specific adhesive, controlling magnet and rotor surface preparation, maintaining consistent bond-line thickness, accurately positioning magnets, controlling the curing process, and conducting representative thermal, mechanical, vibration, and environmental testing.
