Viscoelastic Polymer Tapes are designed to prevent corrosion by bonding effectively to steel and both factory and field-applied pipeline coatings. It consists of polyiso-butylene(PIB). Non-toxic, cold-applied wrap coatings are prefabricated and based on pure homopolymer. This low-viscosity, non-crystalline, non-crosslinked (fully amorphous) compound provides excellent protection for pipelines.
Features:
• Controlled cold flow providing permanent inflow into the finest pores of the substrate
• Resistant to low temperatures without getting brittle
• Conforms to irregular shapes
• Low surface tension; adheres to many types of dry substrates at a molecular level
• Self-healing of small dents, voids, and cracks
• Inert to aging and weathering
• Resistant to many chemicals like water, salts, acids, alkalis, and polar solvents.
Application:

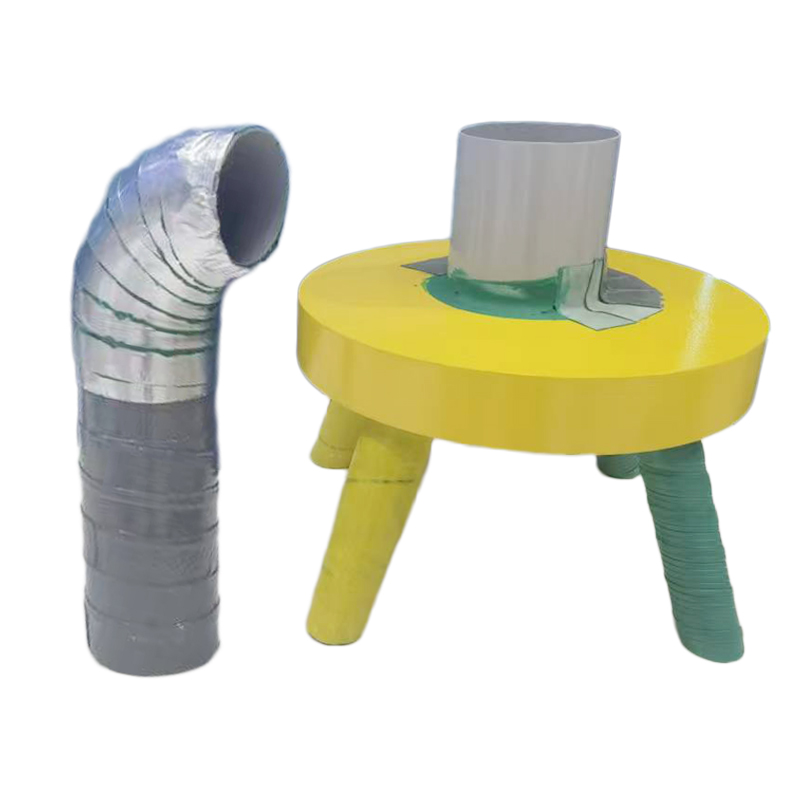

Viscoelastic materials are effective for sealing and corrosion protection in valves, pipes, vessels, field joints, fittings, marine facilities, offshore pipelines, offshore wind power devices, and for pipe repair and rehabilitation.
Product Parameters
Item | Test method | Performance |
color | Visual estimation | green |
thickness | ISO21809-3 | ≥1.8mm |
Glass transition temperature | ISO11357-2 | -20℃min |
Crystallization temperature | ISO11357-3 | No evidence of crystallization |
Holiday detection at 5KV/mm, max. 25KV | ISO21809-3 | No holiday |
Drip resistance | ISO21809-3 | No dripping |
Lap shear strength at 23℃ | ISO21809-3 | 0.027 N/mm2 |
Lap shear strength at 70℃ | ISO21809-3 | 0.005N/mm2 |
Impact resistance | EN12068 | 15 J |
Indentation resistance | EN12068 | 0.6mm remaining |
Self healing | ISO 21809-3 | ＜24 hours@23℃ |
Cathodic disbondment resistance at 23℃ | ISO21809-3 | 0mm self healing <24 hours |
Cathodic disbondment resistance at 70℃ | ISO21809-3 | 0mm self healing <24 hours |
Electrical resistance | EN12068 | >10^15 ohm/cm |
Low temp. Flexibility @-30℃ | EN12068 | No separation, tears or cracks |
