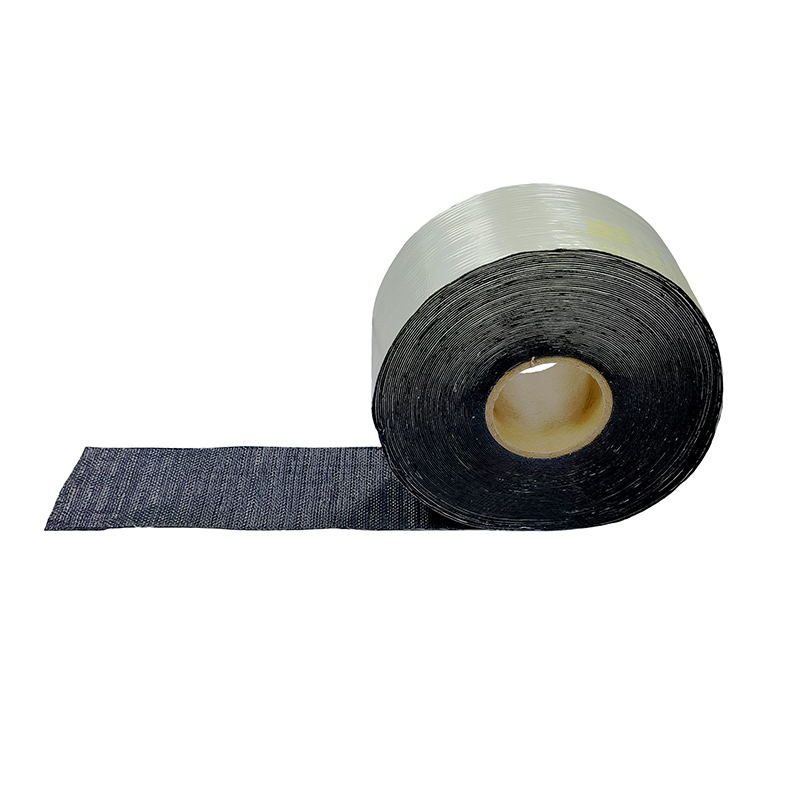

It is a composite of a polypropylene backing with a mesh fiber and a viscoelastic butyl sealant for use with an anti-corrosive primer.

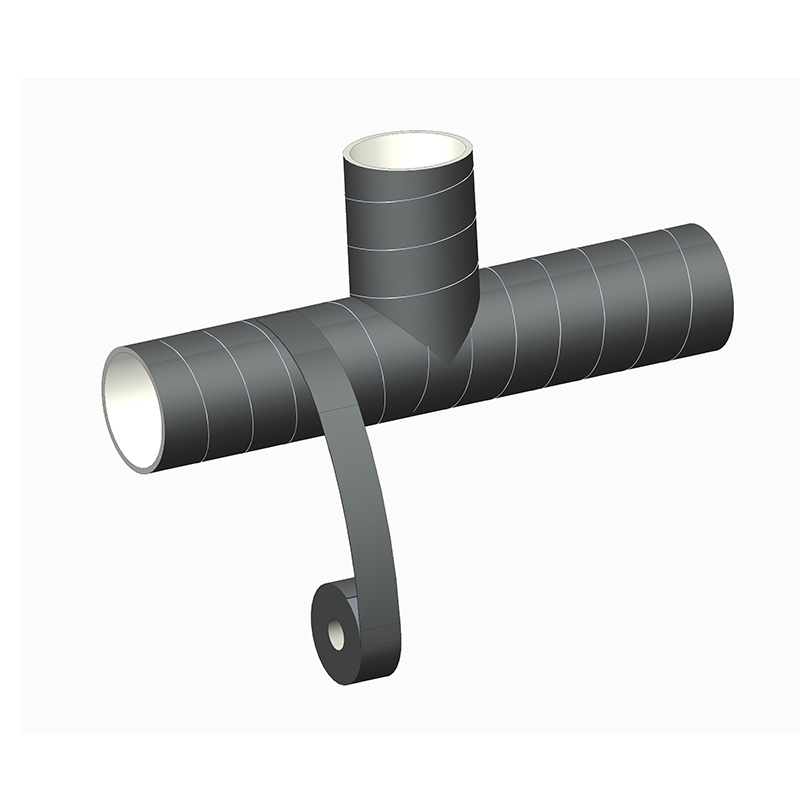

During the installation and construction, after the steel pipe has been de-rusted, the anti-corrosion primer of the sleeve is evenly coated on the surface of the steel pipe with a plate brush. After the surface is dried, the tape is wrapped on the steel pipe by hand or equipment, and the anti-corrosion tape is pressed by a pressure roller. The corners are solid. After the installation, the product will form a completely sealed anti-corrosion body on the surface of the steel pipe. The anti-corrosion primer covers the surface of the steel pipe to form the first layer of the anti-corrosion barrier; the viscoelastic butyl sealant as the second anti-corrosion barrier has a pole. The low water vapor transmission performance can effectively block the intrusion of corrosive media; the outer mesh fiber polypropylene tape is the third layer of the anti-corrosion barrier and provides good mechanical protection for the entire anti-corrosion system to resist external force erosion.
This product is mainly used for external anti-corrosion of steel pipes, especially for anti-corrosion of pipelines and storage tank systems such as elbows and station valve rooms. It has the characteristics of less construction restrictions, convenient construction, and long anti-corrosion life.
Suitable for steel pipe anti-corrosion, also suitable for anti-corrosion of elbows, elbows, flanges, tees, etc.
The maximum operating temperature of steel pipe can reach 100°C, and it can be used in low-temperature environments of -30°C.
Convenient construction, suitable for prefabrication of factory anti-corrosion layer, also suitable for on-site anti-corrosion layer production and filling anti-corrosion
Multi-thickness backings and adhesive layers are available
Excellent anti-corrosion performance and low overall cost
Physical Properties | Test Method | Typical Value | |
English | Metric | ||
Total thickness | ASTM D 1000 | 15.0 mil | 0.38 mm |
PE backing thickness | ASTM D 1000 | 9.0 mil | 0.23 mm |
Butyl rubber adhesive thickness | ASTM D 1000 | 6.0 mil | 0.15 mm |
Tensile strength at +23℃(N/10mm tape width) | ASTM D 1000 | 22.5 lbs/in | 40 N/ cm |
Elongation at break at 23℃ | ASTM D 1000 | 300 % | |
Adhesion to primed steel at 23℃ at 300mm/min rate of extension (N/10mm tape width) | ASTM D 1000 | 183 oz/in | 20 N/cm |
Dielectric Strength | ASTM D 149 | 30 Kv | |
Water Absorptivity | ASTM D 570 | 0.07 % | |
Application Temperature | 14℉-140℉ | -10 ℃ - 60 ℃ | |
Max Service Temperature | -40℉-176℉ | - 40 ℃ - 80℃ |
Color | black |
Width(mm) | 50,75,100,150,200mm |
Length(mm) | 30m, 60m |
