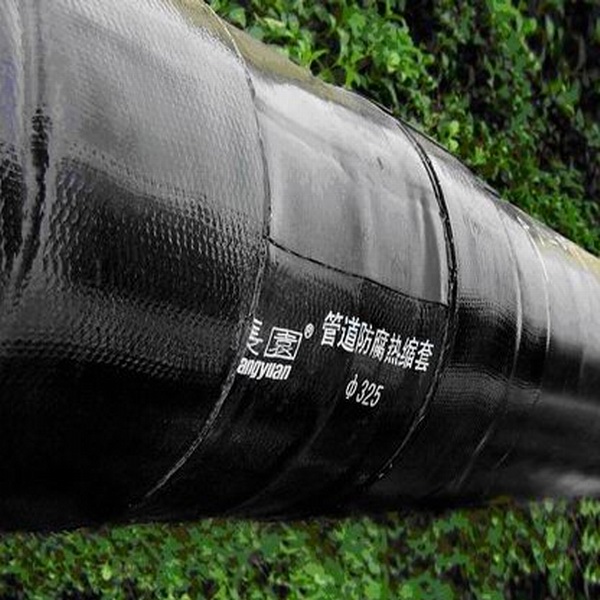

FRDK is a high-performance fiberglass reinforced sleeve specifically designed for girth weld corrosion protection on pipes used in directional drilling applications.
Construction: three-layer system
First layer: liquid epoxy, solvent-free, two-component
Second layer: high-shear strength hot-melt adhesive
Third layer: radiation cross-linked, high-density polyethylene, fiber-reinforced composite structure.

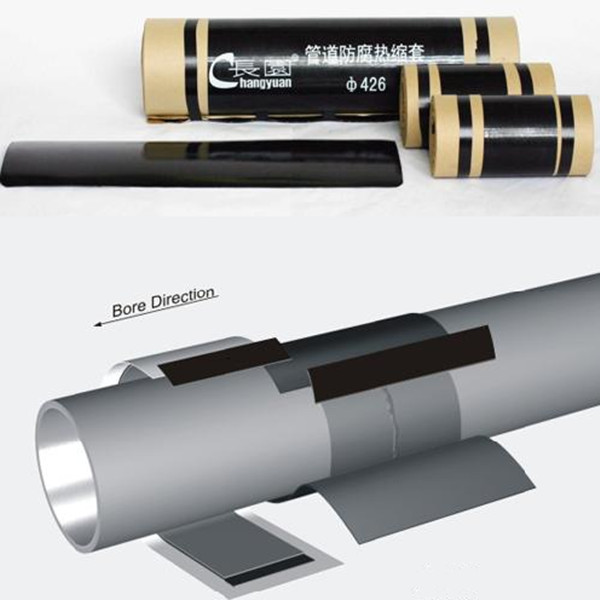

Additional component: Wear a Cone as extra protection against pull-through forces, of the same construction as the main sleeve.

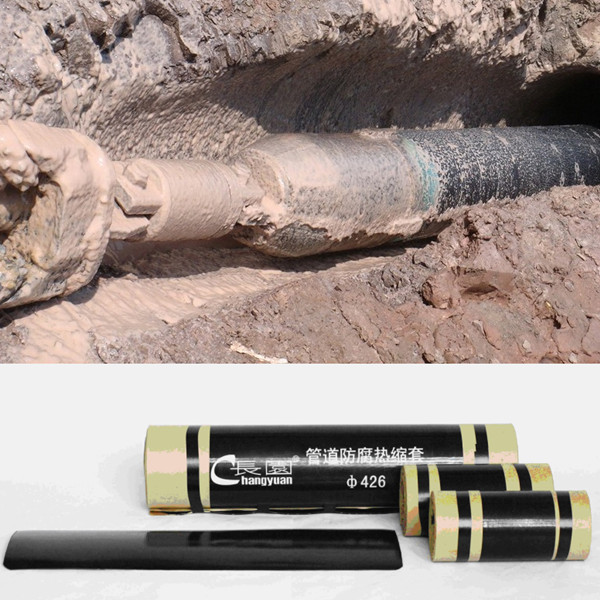

The FRDK heat shrinkable fiberglass reinforced sleeves provide effective protection against abrasion and wear forces that occur during the pull-through operation. The system is fully compatible with cathodic protection systems, resists cathodic disbandment, and is designed for a wide range of operating temperatures.
Features:
— Superior cathodic disbondment and hot water immersion resistance.
— High resistance to shear and peel forces induced by soil and thermal movement.
— Easy to apply with minimal training
— Superior abrasion resistance
— Excellent adhesion performance
— Preheat requirement for product installation.
Application:
— Oil & gas pipelines for directional drilling
— Water pipelines for directional drilling
— Compatible line coating: PE, FBE, Coal Tar
Technical Performance:
Properties | Typical Value | Test Method |
Backing |
Burst Strength (N) | 3026 | EN 12068 |
Volume Resistivity (Ω·cm) | 3.6*10^15 | ASTM D 257 |
Dielectric Strength (KV) | 32 | ASTM D 149 |
Adhesive |
Ring & Ball Softening Point (oC) | 111 | ASTM E 28 |
Lap Shear (MPa) (23℃) (MPa) | 7.11 | ISO 21809-3 |
Installed System |
Holiday Test (kV) | 15 | EN 12068 |
Peel Strength to steel (N/mm) | 23℃ | 11.06 | ISO 21809-3 |
65℃ | 2.1 | ISO21809-3 |
Indentation Resistance (mm) | ≥0.6 | EN 12068 |
Impact Strength (23±3) (J) | ≥15 | EN 12068 |
Cathodic Disbonding Resistance 28 day, 1.5V (mm) (23±3oC) | 2.05 | ISO 21809-3 |
Hot Water Immersion
(120d, 65oC) | No delaminating, no blisters or water ingress | ASTM D 870 |
Product Specification:
Specification | Circumferential length of sleeve | Closure patch width | Wear cone width |
FRDK159*500-1.5/1.0 | 680 | 100 | ≥150 |
FRDK219*500-1.5/10 | 900 | 120 | ≥150 |
FRDK273*500-1.5/10 | 1070 | 120 | ≥150 |
FRDK325*500-1.5/10 | 1260 | 120 | ≥150 |
FRDK355*500-1.5/10 | 1360 | 120 | ≥150 |
FRDK426*500-1.5/10 | 1600 | 150 | ≥200 |
FRDK508*500-1.5/10 | 1900 | 150 | ≥200 |
FRDK529*500-1.5/10 | 1940 | 150 | ≥200 |
FRDK610*500-1.5/10 | 2220 | 200 | ≥200 |
FRDK711*500-1.5/10 | 2560 | 200 | ≥200 |
FRDK813*500-1.5/10 | 2880 | 200 | ≥250 |
FRDK1219*500-1.5/10 | 4180 | 200 | ≥250 |
The above data is normal size .We can produce special size according to the customer’s demand.
