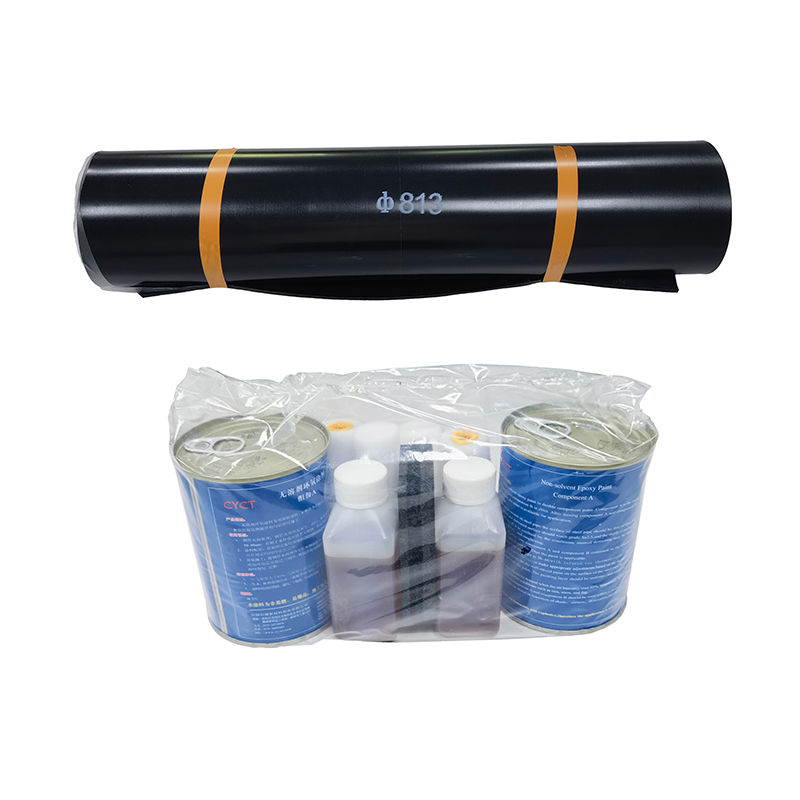

The 3PE heat shrink sleeve is a specialized product designed for the protection of pipelines, particularly at joints and welds. It is widely used in various industries due to its excellent corrosion resistance and mechanical protection.
Three-Layer Structure: The sleeve consists of a radiation cross-linked polyethylene outer layer, a heat-melting adhesive middle layer, and a concrete coating inner layer. This structure enhances mechanical strength and electrical insulation performance while providing good chemical resistance.
High-Temperature Resistance: The material can withstand high temperatures, making it suitable for various environmental conditions.
Corrosion Protection: Primarily used for the corrosion protection of buried and overhead steel pipelines, especially at welds.
Mechanical Protection: Provides a robust barrier against mechanical damage and environmental factors.
Property | Test temp. | Unit | Requirement | Test result | Test method |
Thickness | — | mm | ≥ 0.85 × nominal value | 0.88 × nominal value | Annex A |
Holiday detection at 5 kV/mm + 5 kV | — | — | no holiday | no holiday | Annex B |
Impact resistance (holiday detection at 5 kV/mm 5 kV after recovery) | 20℃ | J/mm | ≥ 5 | 6.8 | Annex G |
Indentation resistance (holiday detection at 5 kV/mm 5 kV after recovery) | 50℃ | N/m㎡ | 1.0 | 1.0 | Annex H |
— | mm | ≥ 0.6 | 1.26 | ||
Cathodic disbondment at 30 days | 23℃ | mm | ≤ 10.0 | 6.5 | Annex F |
50℃ | mm | ≤15 | 10 | ||
Peel strength at 10 mm/min to pipe surface primed with epoxy and to plant coating | 23℃ | N/mm | ≥ 2.50 | 8.5 | Annex D |
50℃ | N/mm | ≥ 0.20 | 0.46 | ||
Peel strength at 10 mm/min | 23℃ | N/mm | ≥ 0.4 | 8.2 | Annex D |
Peel strength at 10 mm/min | 23℃ | N/mm | ≥ 0.2 | 7.0 | Annex I |
Peel strength at 10 mm/min | 23℃ | N/mm | ≥ 0.4 | 7.5 | Annex I |
Lap shear strength at 10 mm/min | 23℃ | N/m㎡ | ≥ 0.05 | 3.8 | Annex L |
50℃ | N/m㎡ | ≥ 0.07 | 0.39 | ||
Thermal ageing resistance (aged at Tmax + 20 °C) | 23℃ | E100/E0 | ≥ 0.75 | 0.89 | Annex N |
23℃ | P100/P70 | ≥ 0.80 | 0.92 | ||
23℃ | A100/A70 | ≥ 0.80 | 0.88 |
Ordering Information | ||

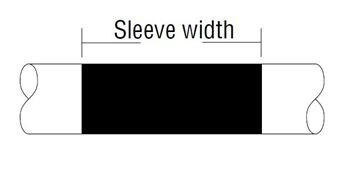

Select sleeve width that will overlap onto the mill-applied coating by 2 inches( 50mm) minimum on each side of the weld joint. Take a 10% shrinkage during installation of sleeve width into account when calculating the minimum sleeve width. | Range for available dimension: | |
Sleeve length | Length of PE shrink sleeves | |
Sleeve width | We can provide 450mm, 480mm, 500mm, 520mm and 550mm supplied PE shrink sleeves width. | |
Sleeve thickness | We can provide 1.8mm, 2.0mm, 2.2mm, 2.5mm, 2.8mm , 3.0mm and 3.2mm supplied PE shrink sleeves thickness. | |
Primer thickness | There are two kinds of primer application way, wet film and dry film. We can provide 120um, 150um, 200um, 300um and 400um primer thickness. | |
