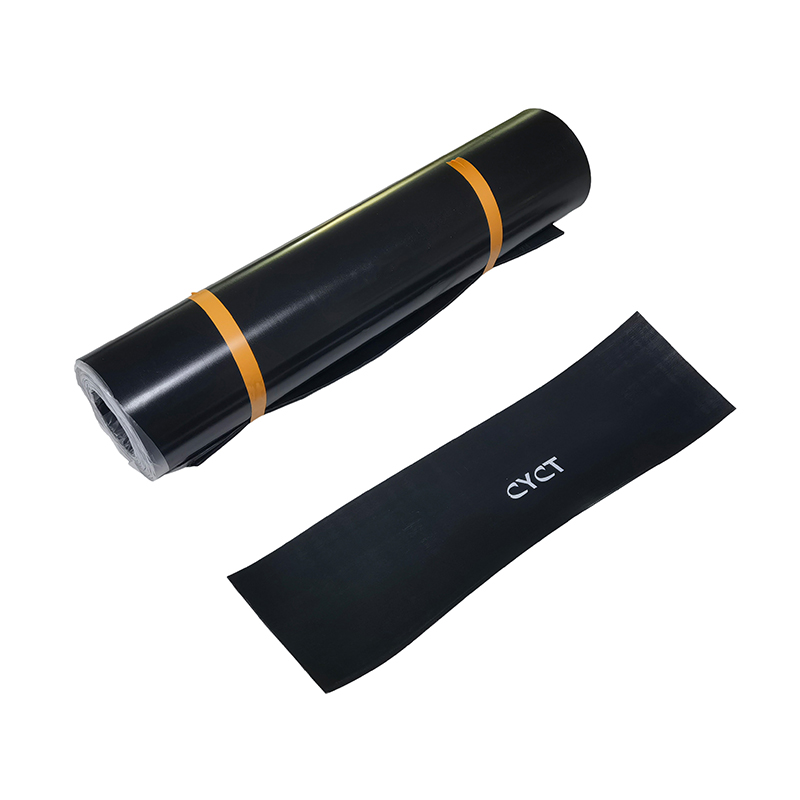

2PE Heat-shrinkable pressure -sensitive adhesive sleeve is designed to protect oil &gas pipelines from corrosion.
First layer: modified pressure-sensitive adhesive from butyl rubber
Second layer: radiation cross-linked, high-density polyethylene, fiber-reinforced composite structure.
Feature:
— Suitable for the project of newly built pipe and in-service pipe
— Short preparation time; only need to remove the vapor in the surface of steel pipe, no demand for preheating
— There is no need for primer; only need to use a wire brush and abrasive tape to clean the surface of the steel pipe.
Application:

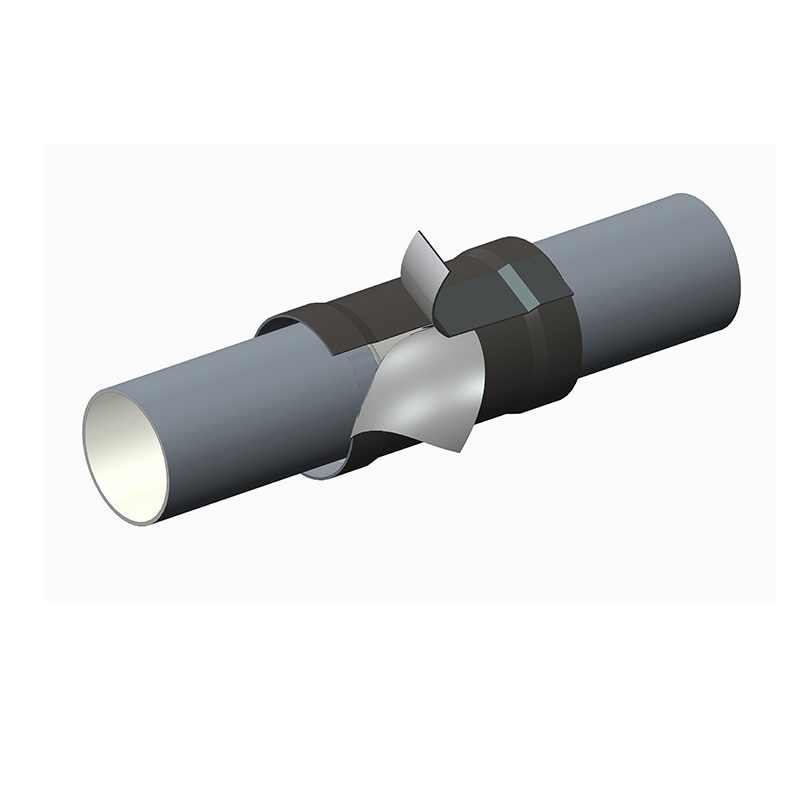

The 2PE heat shrink wrap is primarily used for the joints of steel pipelines, providing a reliable seal that prevents moisture and other corrosive substances from penetrating.
Installation: The installation process is straightforward and quick. Upon heating, the wrap shrinks radially, conforming tightly to the surface of the pipe, which enhances its protective capabilities.
Product Performance:
Item | Test method | Performance |
PE Backing |
Tensile strength | ASTM D 638 | 21.1 MPa |
Elongation | GB/T1040.2 | 585% |
Hardness, Shore D | ASTM D 2240 | 52 |
Dielectric Strength | ASTM D 149 | 31KV/mm |
Volume Resistivity | ASTM D 257 | 10^17 ohm-cm |
Adhesive |
Softening point | ASTM E 28 | 100 ℃ |
Lap shear@23℃ | DIN30672 | 72N/c㎡ |
Installed Product |
Peel Strength@23℃ | EN 12068 | 32N/cm |
Impact Resistance | EN 12068 | ≥15J |
Indentation resistance | EN 12068 | Pass |
Cathodic disbandment @23℃ | ISO21809-3 | 6mm rad |
Resistance to thermal ageing | ISO21809-3 |
|
-Tensile strength |
| 19.4 MPa |
-Elongation |
| 520% |
Ultraviolet Irradiation resistance ratio of | EN12068 |
|
-Tape strength |
| 0.94 |
-Elongation at break |
| 0.94 |
Product Specification
Diameter | length | diameter | length | thickness |
108*500 | 470 | 508*500 | 1810 | Backing material≥1.2mm
Adhesive layer ≥1.3mm
Total thickness ≥2.5mm
We can design and produce special size according to customer’s demand. |
114*500 | 490 | 529*500 | 1870 |
159*500 | 610 | 559*500 | 1940 |
168*500 | 630 | 610*500 | 2130 |
219*500 | 860 | 660*500 | 2300 |
273*500 | 1030 | 711*500 | 2450 |
325*500 | 1190 | 813*500 | 2770 |
377*500 | 1360 | 914*500 | 3080 |
406*500 | 1450 | 1016*500 | 3400 |
457*500 | 1610 | 1219*500 | 4030 |
