How Can We Protect Gas Pipeline? A Comprehensive Guide

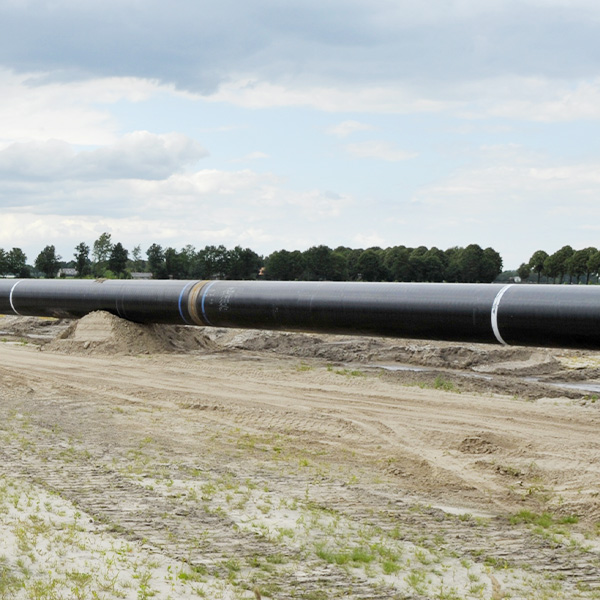

Gas pipelines are vital components of our energy infrastructure, transporting natural gas and other gaseous fuels across vast distances. Given their importance, ensuring the safety and integrity of these pipelines is paramount. The risks associated with gas pipelines, such as leaks, ruptures, and environmental contamination, necessitate robust protective measures. This article explores various methods, technologies, and best practices for protecting gas pipelines, ensuring their safe and efficient operation.
Before delving into protective measures, it’s essential to understand the risks that gas pipelines face:

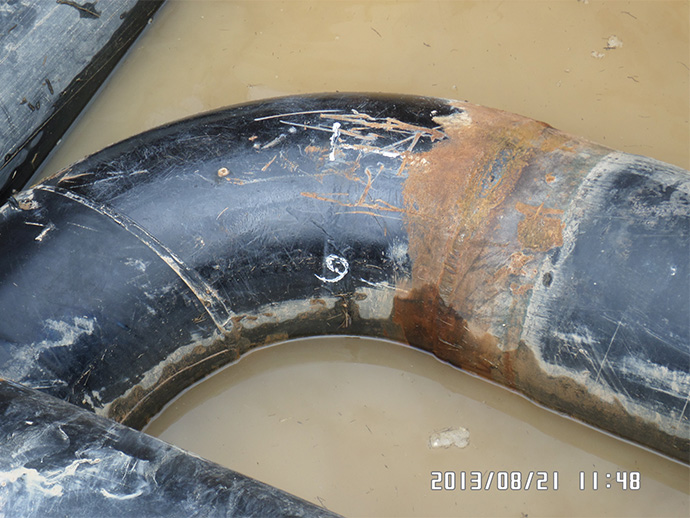

This is one of the most significant threats to gas pipelines. Corrosion can lead to material degradation, resulting in leaks and potential failures.
External forces, such as soil movement, construction activities, and natural disasters, can physically damage pipelines.
Temperature fluctuations, moisture, and chemical exposure can accelerate corrosion and other forms of degradation.
Activities such as excavation or drilling near pipeline routes can pose significant risks.
Changes in pressure and temperature during gas transport can affect the integrity of the pipeline.
Several methods can be employed to protect gas pipelines from these risks, each offering unique advantages and applications. Here are some of the most effective strategies:
Description:

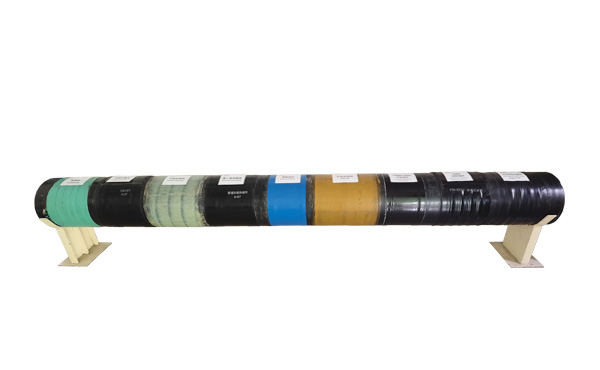

Coatings are protective layers applied to the exterior and, in some cases, the interior surfaces of pipelines. They serve as a barrier against corrosive elements and mechanical damage.
Types:
Fusion Bonded Epoxy (FBE): A thermosetting powder coating that provides excellent adhesion and corrosion resistance.
Polyethylene (PE)/Polypropylene(PP): A thermoplastic coating that offers good mechanical protection and chemical resistance.

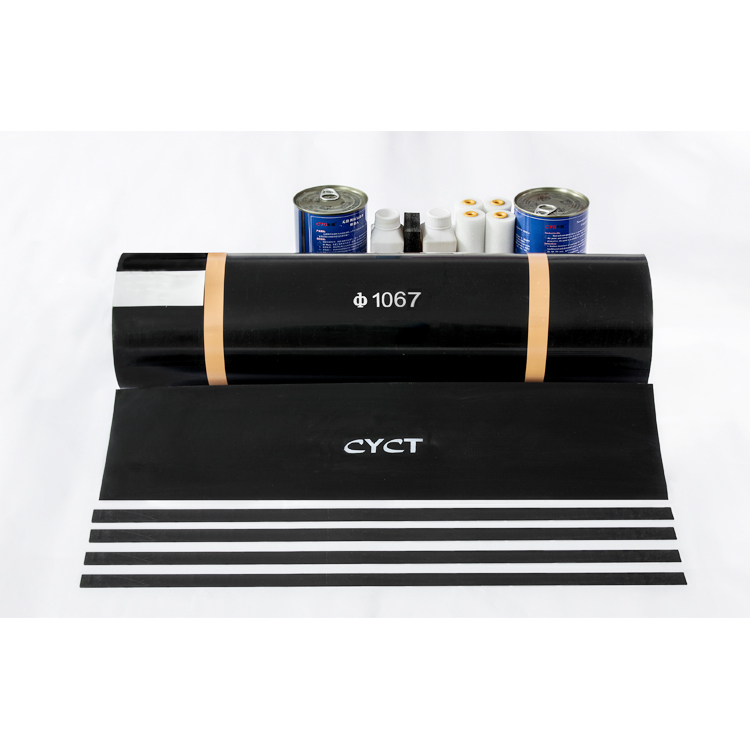

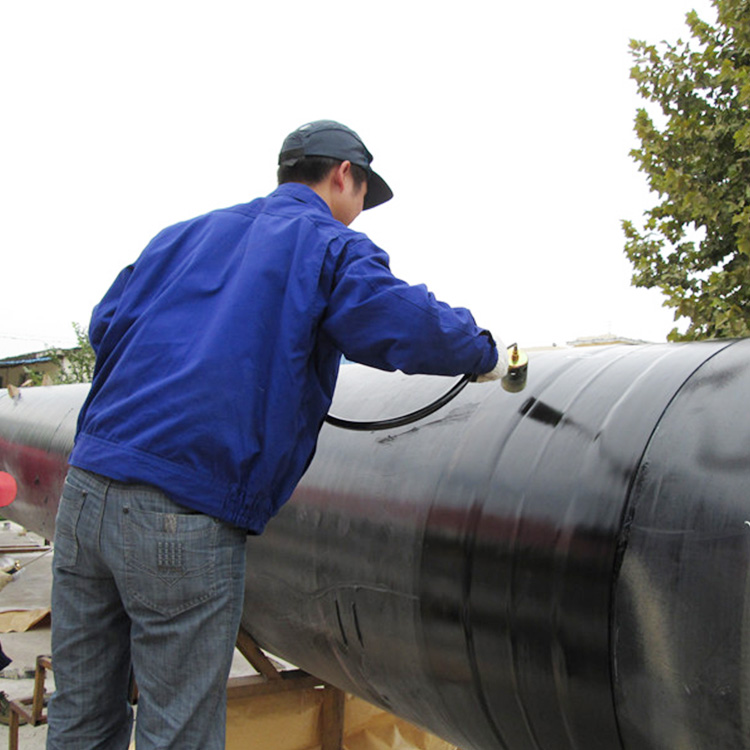

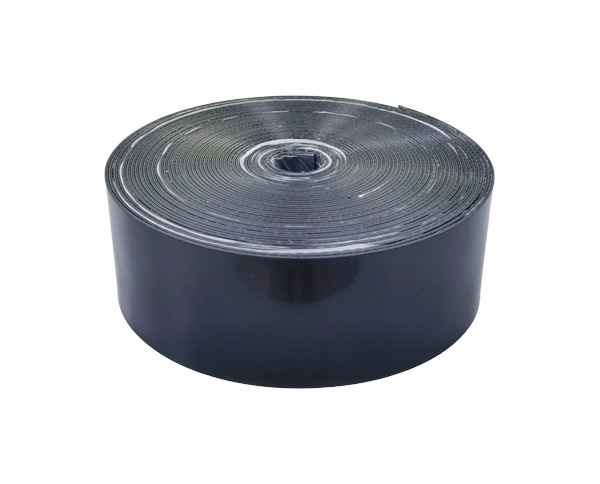

3-layer PE/PP Heat Shrinkable Sleeve: A three-layer protective system designed for corrosion protection of pipelines, particularly for Field Welded Joints.

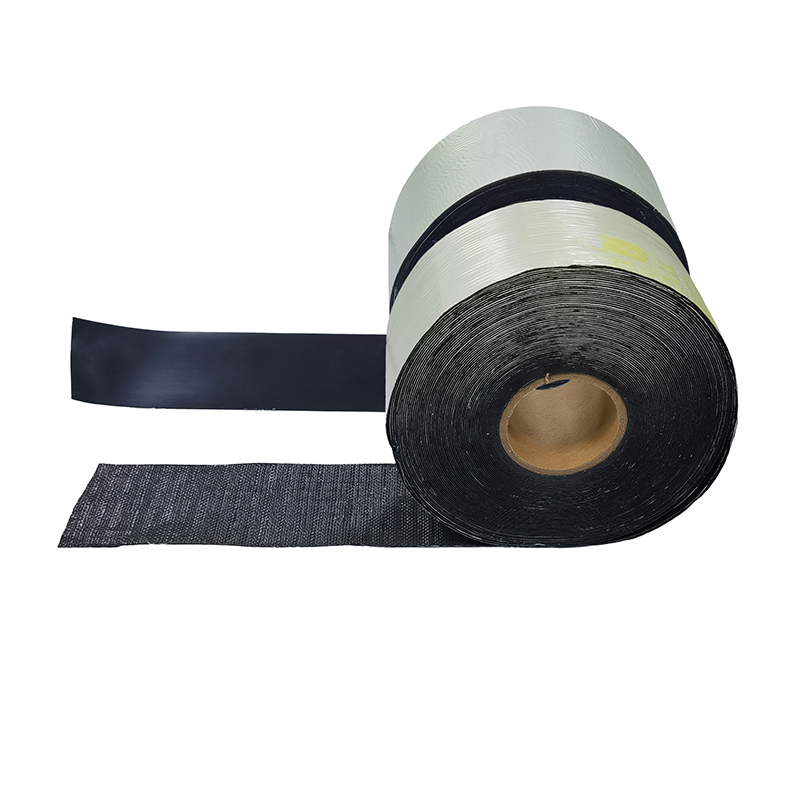

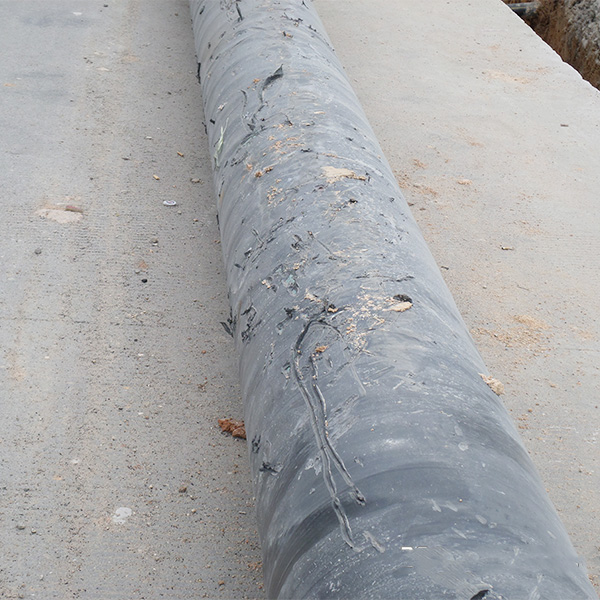

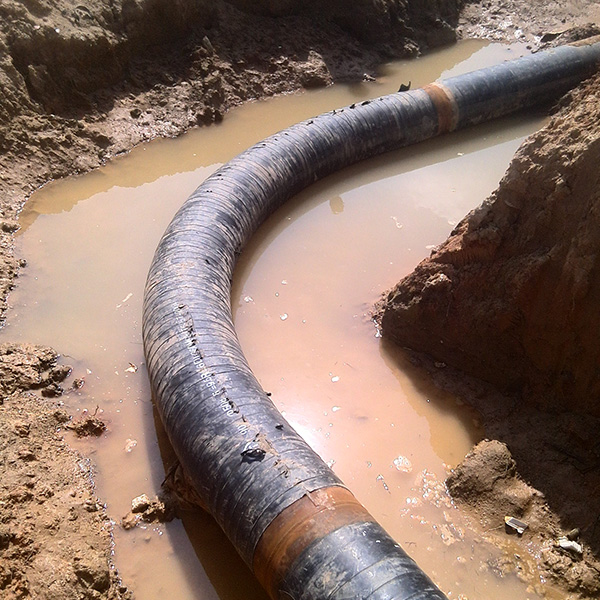

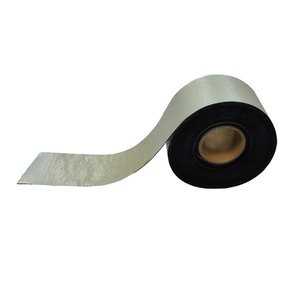

PP/PE Cold-applied Tape: Pipeline Polyethylene Polypropylene Cold Applied Tape is a specialized protective solution designed to safeguard various surfaces, particularly pipelines, from corrosion and environmental damage.

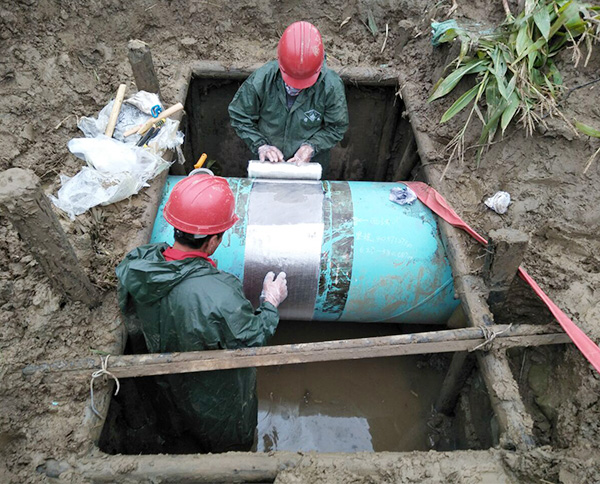

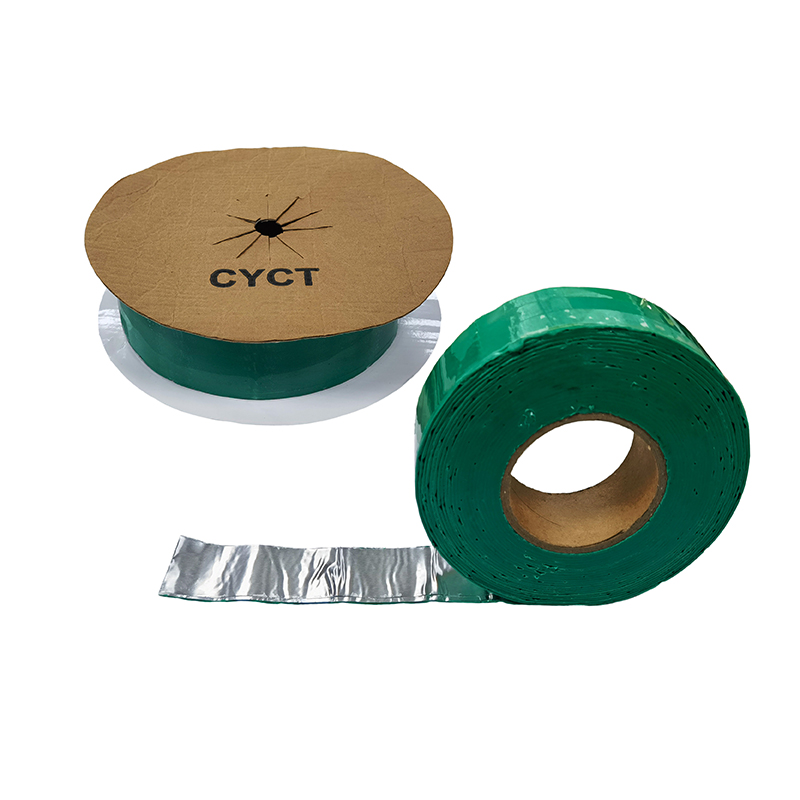

Viso Elastic Coating: Visco-elastic materials can be used to protect the valve from corrosion. Normally viscoelastic anticorrosive tape and viscoelastic anticorrosive paste are used together.
Coal Tar Enamel: A traditional coating used for underground pipelines, providing high resistance to moisture and chemicals.
Applications:
Coatings are widely used in oil and gas, water distribution, and wastewater management.
Advantages:
Provides long-lasting protection against corrosion
Enhances the mechanical strength of the pipeline
Can be applied to both new and existing pipelines
Description:
Cathodic protection is a technique used to control the corrosion of a metal surface by making it the cathode of an electrochemical cell. This is achieved by applying a small electrical current to the pipeline.
Types:
Sacrificial Anode Cathodic Protection (SACP): Sacrificial anodes made of a more reactive metal corrode instead of the pipeline.

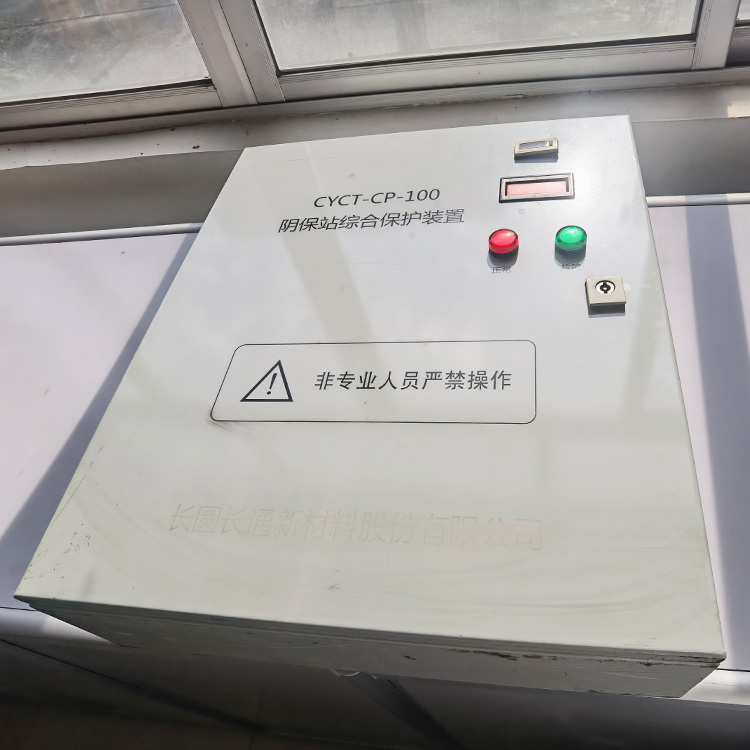

Impressed Current Cathodic Protection (ICCP): An external power source provides a continuous electrical current to the pipeline.
Applications:
Cathodic protection is commonly used in underground pipelines, where the risk of corrosion is high.
Advantages:
Effective in preventing corrosion
Can be used in various environments
Long-term protection
Description:
Corrosion inhibitors are chemicals added to the fluid inside the pipeline or the surrounding environment to reduce the rate of corrosion. They form a protective film on the metal surface.
Types:
Anodic Inhibitors: Form a protective oxide layer on the metal surface.
Cathodic Inhibitors: Slow down the cathodic reaction, reducing the overall corrosion rate.
Applications:
Corrosion inhibitors are commonly used in gas pipelines that transport corrosive gases, such as hydrogen sulfide or carbon dioxide.
Advantages:
Can be easily added to the pipeline fluid
Provides continuous protection
Cost-effective
Description:
Choosing the Right Materials for pipeline construction is a fundamental step in preventing corrosion and ensuring durability. Materials with inherent corrosion resistance can significantly reduce the risk of degradation.
Types:
Stainless Steel: Known for its excellent corrosion resistance.
Alloy Steel: Contains additional elements to enhance corrosion resistance.

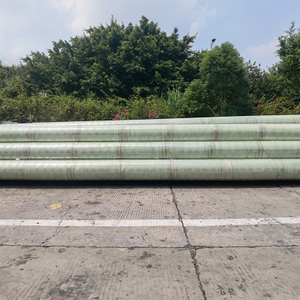

Plastic and Composite Materials: Non-metallic materials that are inherently resistant to corrosion.
Applications:
Material selection is critical in gas pipeline applications where exposure to aggressive environments is expected.
Advantages:
Provides long-term corrosion resistance
Reduces the need for additional protective measures
Enhances the overall durability of the pipeline
Description:
Controlling the environment around the pipeline can help reduce the risk of corrosion and other forms of degradation. This involves managing factors such as moisture, temperature, and chemical exposure.
Methods:
Dehumidification: Reducing humidity levels around the pipeline to prevent moisture-induced corrosion.
Temperature Control: Maintaining a stable temperature to minimize thermal stress and condensation.
Applications:
Environmental control is used in various gas pipeline applications, particularly in areas with high humidity or aggressive soil conditions.
Advantages:
Reduces the risk of corrosion
Enhances the effectiveness of other protective measures
Can be implemented in both new and existing pipelines
To achieve the best results in protecting gas pipelines, consider the following best practices:
Conduct regular inspections to identify and address any signs of corrosion or damage early. Use advanced techniques such as ultrasonic testing and magnetic particle inspection for thorough assessments.
Implement a comprehensive maintenance program to ensure the effectiveness of protective measures. This includes cleaning, repairing, and re-coating as necessary.
Use monitoring systems, such as corrosion probes and sensors, to continuously assess the condition of the pipeline. Real-time data can help in making informed decisions regarding maintenance and repairs.
Ensure that personnel are trained and educated on pipeline protection techniques and best practices. A knowledgeable workforce is essential for effective pipeline management.
Combine multiple methods and techniques to provide comprehensive protection against corrosion and other threats. An integrated approach can enhance the overall effectiveness of pipeline protection strategies.
Protecting gas pipelines is essential for maintaining their integrity, safety, and longevity. By understanding the various methods and best practices for pipeline protection, you can implement effective strategies to safeguard your pipeline systems. Whether through coatings, cathodic protection, corrosion inhibitors, material selection, or environmental control, each method offers unique advantages and applications. By adopting a comprehensive and integrated approach, you can ensure the safe and efficient operation of your gas pipelines for years to come, ultimately protecting both the environment and public safety. If you want to learn more about pipeline corrosion protection knowlege, you can connect with CYCT Changyuan Changtong New Materials, it is a professional maufacturer specializing in manufacturing, R&D, supplying in pipeline anti-corrosion materials, with over 24 years of experience.
