Film capacitors are widely used in modern electrical and electronic systems because of their excellent stability, low losses, high insulation resistance, and long operational life. They are commonly found in power electronics, renewable energy systems, electric vehicles, industrial automation equipment, consumer electronics, and power distribution networks. Despite their inherent durability, film capacitors are often exposed to demanding operating environments that can significantly affect their performance and lifespan.
Factors such as moisture, thermal cycling, vibration, mechanical shock, contamination, voltage stress, and environmental pollutants can gradually degrade capacitor performance. To address these challenges, manufacturers increasingly rely on film capacitor potting compounds. These specialized materials encapsulate and protect capacitors, creating a barrier against environmental and mechanical threats while improving thermal management and electrical insulation.
This article explores how film capacitor potting compounds improve reliability and service life, the key properties of potting materials, their benefits, application methods, and the factors engineers should consider when selecting the most suitable solution.
Film capacitors are capacitors that use a thin plastic film as the dielectric material. Common dielectric materials include polypropylene, polyester, polyphenylene sulfide, and polyethylene naphthalate.
The dielectric film is either metallized directly or combined with metal foil electrodes to create a capacitor structure capable of storing electrical energy efficiently.
Film capacitors are valued for:
* High insulation resistance
* Excellent self-healing properties
* Low dielectric losses
* Long service life
* Stable capacitance over time
* High voltage handling capability
These characteristics make them suitable for applications requiring reliability and long-term performance.
Film capacitors are used in various industries and systems, including:
* Electric vehicle power systems
* Solar power inverters
* Wind energy converters
* Industrial motor drives
* UPS systems
* Medical equipment
* Railway traction systems
* Power factor correction equipment
* Consumer electronics
* Telecommunications infrastructure
As these applications often involve harsh operating conditions, protecting film capacitors becomes critical for ensuring system reliability.

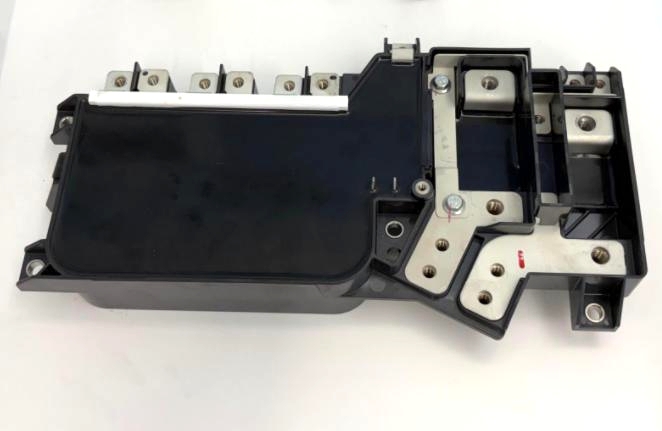

Film capacitor potting compounds are protective materials used to encapsulate capacitors and related electronic components within a housing or enclosure.
After curing, the potting compound forms a solid or semi-flexible protective barrier around the capacitor assembly.
Potting compounds can be formulated from various materials, including:
* Epoxy resins
* Silicone compounds
* Polyurethane systems
* Hybrid resin technologies
Each material offers unique advantages depending on the application requirements.
The primary functions include:
* Environmental protection
* Electrical insulation
* Thermal management
* Mechanical reinforcement
* Vibration resistance
* Moisture prevention
* Chemical protection
* Extended service life
By performing these functions simultaneously, potting compounds become an essential part of capacitor reliability engineering.
Reliability is a major concern in modern electrical systems. A single capacitor failure can lead to:
* System downtime
* Production losses
* Safety risks
* Costly repairs
* Equipment damage
In mission-critical applications such as renewable energy systems, electric vehicles, aerospace equipment, and industrial automation, component reliability directly impacts operational efficiency and profitability.
Potting compounds help minimize failure risks by protecting film capacitors from the factors most likely to cause degradation.
Environmental exposure is one of the leading causes of capacitor degradation.
Moisture penetration can significantly affect capacitor performance.
Water molecules entering the capacitor structure may cause:
* Insulation degradation
* Corrosion of metal electrodes
* Increased leakage current
* Reduced dielectric strength
High-quality potting compounds create an effective moisture barrier that prevents water ingress and maintains electrical performance throughout the product's life.
This protection is particularly important for outdoor applications such as:
* Solar inverters
* Wind turbines
* EV charging stations
* Telecommunications cabinets
Industrial environments often contain dust, dirt, oils, and conductive contaminants.
Without adequate protection, these contaminants can accumulate on capacitor surfaces and contribute to:
* Electrical tracking
* Surface leakage
* Insulation failure
Potting compounds completely encapsulate sensitive components and prevent contamination-related issues.
Many industrial facilities expose electronic equipment to:
* Solvents
* Fuels
* Cleaning agents
* Industrial chemicals
Properly selected potting materials resist chemical attack and prevent damage to capacitor structures.
Electrical insulation is one of the most important functions of film capacitor potting compounds.
Capacitors operating at high voltages require strong insulation systems.
Potting compounds increase dielectric strength and reduce the likelihood of:
* Arcing
* Corona discharge
* Electrical breakdown
* Partial discharge activity
This added insulation layer significantly improves system reliability.
Potting compounds help increase effective insulation distances between conductive elements.
As a result, engineers can design more compact systems while maintaining electrical safety standards.
Partial discharge is a major contributor to long-term insulation degradation.
Air voids and contaminants can create localized electrical stress concentrations.
High-quality potting compounds minimize these voids and reduce the occurrence of partial discharge events, extending capacitor lifespan.
Heat is one of the most significant factors affecting capacitor aging.
Film capacitors generate heat during operation due to:
* Dielectric losses
* Ripple currents
* Switching frequencies
* Ambient temperature conditions
Excessive heat accelerates material degradation and shortens service life.
Advanced potting formulations contain thermally conductive fillers that improve heat transfer.
Benefits include:
* Lower operating temperatures
* Improved thermal stability
* Reduced hot spots
* Better heat distribution
By efficiently transferring heat away from critical components, potting compounds contribute directly to longer capacitor life.
Applications such as:
* DC-link capacitors
* EV inverters
* Industrial drives
* Renewable energy converters
often generate substantial heat.
Thermally conductive potting compounds help maintain acceptable operating temperatures and support long-term reliability.
Mechanical stress can damage capacitors over time.
Many capacitor installations experience continuous vibration.
Examples include:
* Electric vehicles
* Rail transportation systems
* Wind turbines
* Industrial machinery
Potting compounds immobilize internal components and reduce vibration-induced fatigue.
Mechanical shocks can occur during:
* Transportation
* Installation
* Equipment operation
Potting materials absorb and distribute impact energy, reducing the risk of internal damage.
Encapsulation strengthens the overall assembly and prevents movement of internal elements.
This reinforcement contributes to improved durability under demanding operating conditions.
Corrosion is a common cause of electrical component failure.
Film capacitors contain metalized layers and conductive terminals that may be vulnerable to corrosion.
Potting compounds isolate these components from:
* Humidity
* Salt spray
* Industrial pollutants
* Chemical contaminants
By reducing corrosion-related degradation, potting compounds help maintain:
* Capacitance stability
* Electrical insulation
* Mechanical integrity
This contributes directly to longer operational life.
One of the primary reasons for using potting compounds is service life extension.
Environmental and thermal stress accelerate aging mechanisms.
Potting compounds reduce these stresses and slow degradation processes.
Protected capacitors can operate more reliably in:
* High humidity environments
* Outdoor installations
* High-temperature locations
* Industrial facilities
Reduced exposure to damaging factors results in fewer failures over time.
This improves overall system availability and reduces maintenance requirements.
Different applications require different material properties.
Epoxy systems offer:
* Excellent electrical insulation
* High mechanical strength
* Good chemical resistance
* Strong adhesion
They are commonly used in industrial and high-voltage applications.
Silicone materials provide:
* High flexibility
* Wide temperature resistance
* Excellent weatherability
* Reduced mechanical stress
They are ideal for applications experiencing thermal cycling.
Polyurethane systems offer:
* Good flexibility
* Excellent moisture resistance
* Strong impact resistance
These materials are frequently used in outdoor environments.
Hybrid technologies combine the benefits of multiple resin systems and can be tailored to meet specific performance requirements.
Choosing the right potting material is critical for achieving optimal performance.
Applications generating significant heat should use thermally conductive formulations.
High-voltage systems require materials with superior insulation properties.
Applications exposed to vibration and thermal expansion may benefit from flexible materials such as silicone.
Outdoor equipment requires resistance to:
* UV exposure
* Moisture
* Temperature fluctuations
* Chemical contaminants
Manufacturers should also consider:
* Mixing ratio
* Viscosity
* Cure time
* Production efficiency
Renewable energy systems place unique demands on capacitors.
Solar inverters operate under:
* High temperatures
* Continuous electrical stress
* Outdoor exposure
Potting compounds improve durability and operational stability.
Wind turbines experience:
* Vibration
* Humidity
* Temperature changes
Proper encapsulation protects capacitors and reduces maintenance costs.
Electric vehicles rely heavily on power electronics.
Film capacitors are used in:
* Inverters
* On-board chargers
* DC-DC converters
* Battery management systems
Potting compounds help address challenges such as:
* Thermal stress
* Road vibration
* Moisture exposure
* Mechanical shock
As a result, vehicle reliability and safety are enhanced.
As power electronics continue to evolve, potting technologies are also advancing.
Key trends include:
* Higher thermal conductivity materials
* Lightweight formulations
* Low-stress encapsulation systems
* Environmentally friendly chemistries
* Faster curing technologies
* Improved electrical insulation performance
These innovations will further improve the reliability and service life of next-generation film capacitors.
Film capacitor potting compounds play a critical role in enhancing the reliability and service life of electronic and electrical systems. By providing environmental protection, electrical insulation, thermal management, mechanical reinforcement, and corrosion resistance, these materials help capacitors withstand harsh operating conditions and maintain consistent performance over extended periods.
Whether used in renewable energy systems, electric vehicles, industrial equipment, or high-voltage power electronics, properly selected potting compounds significantly reduce failure risks and maintenance costs. As technology advances and performance demands increase, the importance of high-quality potting solutions will continue to grow, making them an indispensable component in modern capacitor design and protection strategies.
# Frequently Asked Questions (FAQ)
A: The primary purpose is to protect film capacitors from moisture, contamination, vibration, thermal stress, and electrical hazards while improving reliability and extending service life.
A: Silicone potting compounds are often preferred for high-temperature environments because they maintain flexibility and performance across a wide temperature range.
A: Yes. Thermally conductive potting compounds transfer heat away from capacitor components, reducing operating temperatures and improving lifespan.
A: They reduce exposure to environmental contaminants, improve electrical insulation, minimize vibration damage, and protect against corrosion and moisture ingress.
A: Yes. Epoxy potting compounds provide excellent dielectric strength, mechanical stability, and chemical resistance, making them suitable for many high-voltage applications.
A: Electric vehicles expose components to vibration, thermal cycling, moisture, and electrical stress. Potting compounds help ensure long-term reliability and safety under these demanding conditions.
A: Yes. By reducing environmental, mechanical, and thermal stresses, potting compounds can significantly increase the operational lifespan of film capacitors.
