Product description:

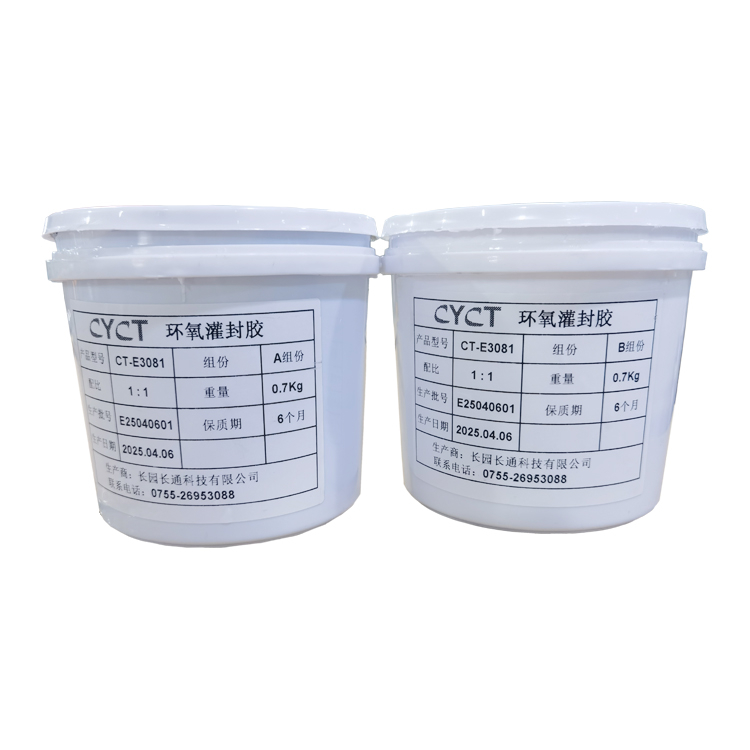

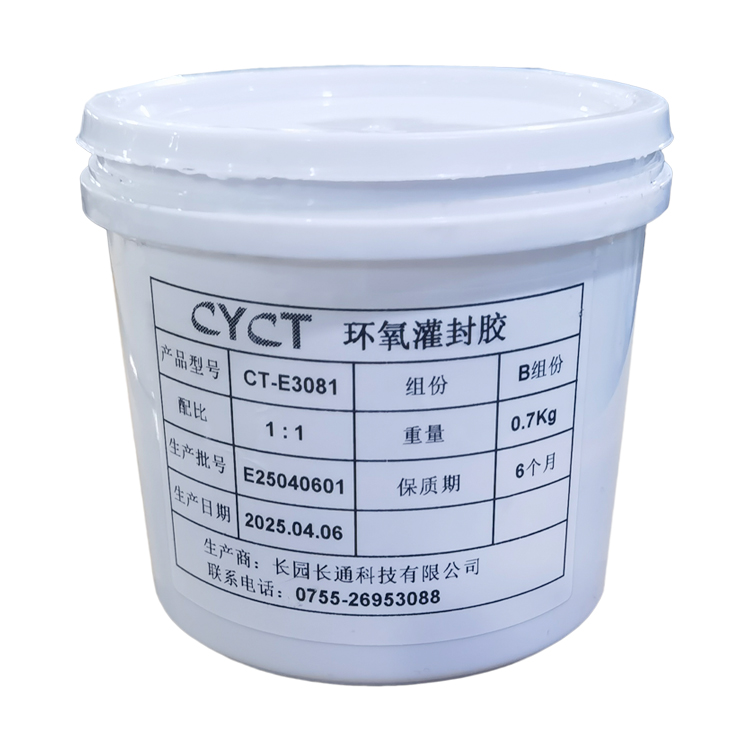

CT-E3081 is a two-component epoxy thermal conductive potting compound. Component A of this product is a black viscous liquid mainly composed of epoxy resin and functional powder, and component B is a white viscous liquid mainly composed of alicyclic anhydride and functional powder. This product has good fluidity and can be manually poured or automatically poured by a dispensing machine. After curing, 304 has high bonding strength to stainless steel, AL alloy, PPS and other materials.
Product features:
1. High bonding strength, with high bonding strength for stainless steel, AL alloy, PPS and other materials;
2. Good waterproof performance. After 1000h double 85 test, the physical properties of the product such as tensile strength and shear strength decay less than 5%;
3. Excellent high and low temperature impact resistance (-40℃~105℃), no cracking and deformation after 1000h high and low temperature impact;
4. Good thermal conductivity, thermal conductivity coefficient of 0.8W/m.K, which is conducive to the heat dissipation of electronic equipment and capacitors;
5. Flame retardant grade reaches UL94-V0;
6. It has good dielectric properties, high volume resistivity and electrical breakdown strength, and good leakage resistance;
7. High hardness, high glass transition temperature Tg, and small linear expansion coefficient CTE.
Specifications:
1. 50kg/set (Component A: 25kg/barrel, Component B: 25kg/barrel):
2. Can be customized according to customer needs.
Storage and transportation:
1. Store in a cool, dry and dark place below 25℃ and keep sealed;
2. This product is a non-flammable and explosive material and can be transported as a general chemical. During transportation, it should be protected from exposure, squeezing and collision to prevent leakage;
3. The shelf life of this product is 6 months.
Application areas:

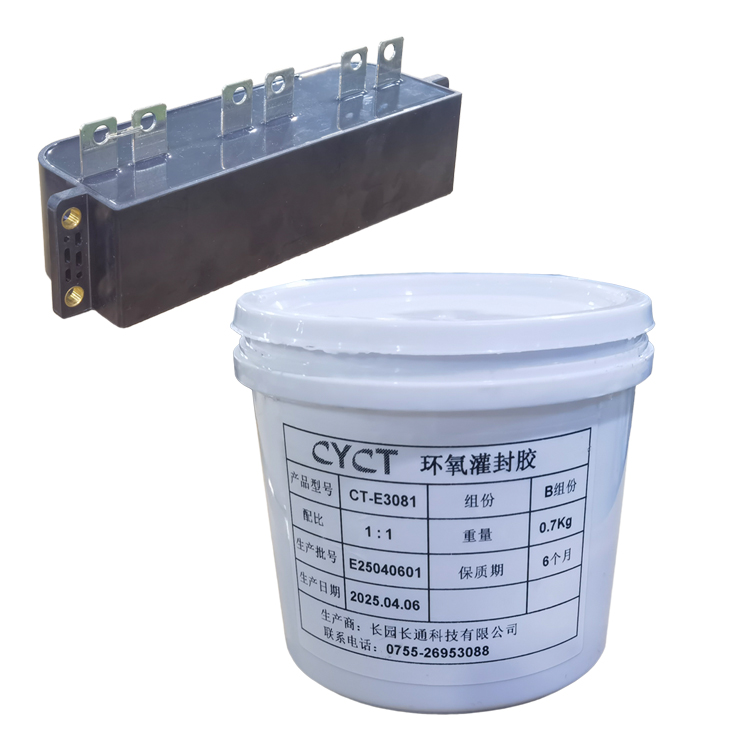

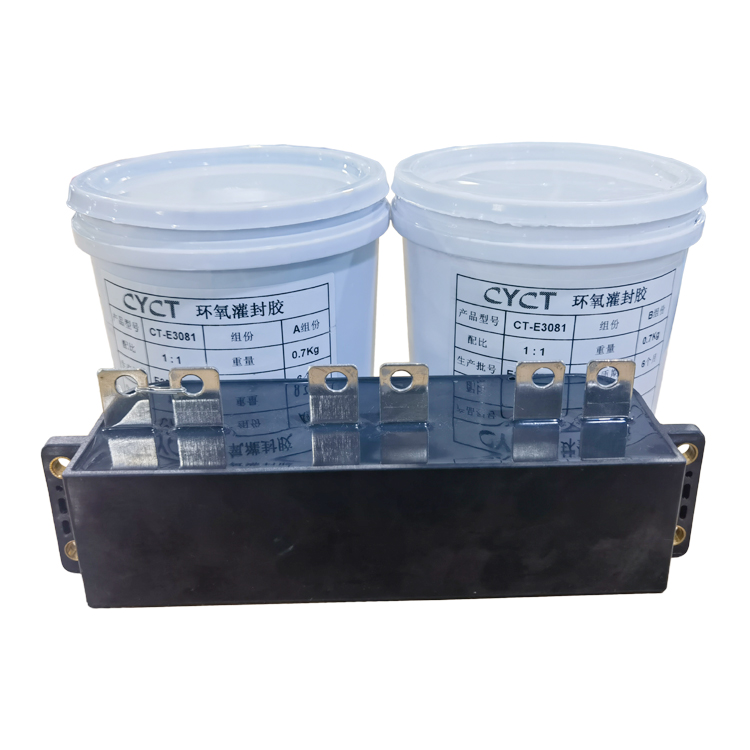

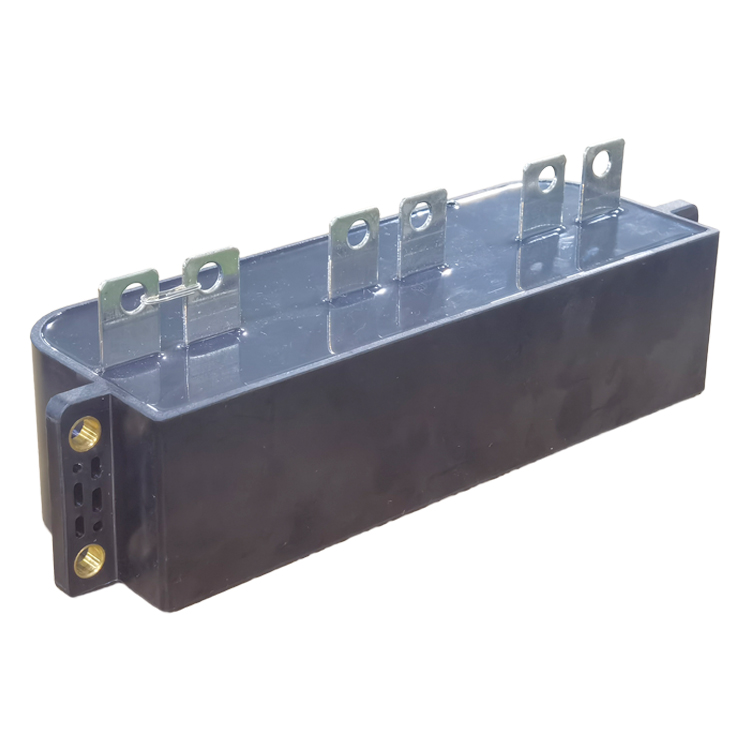

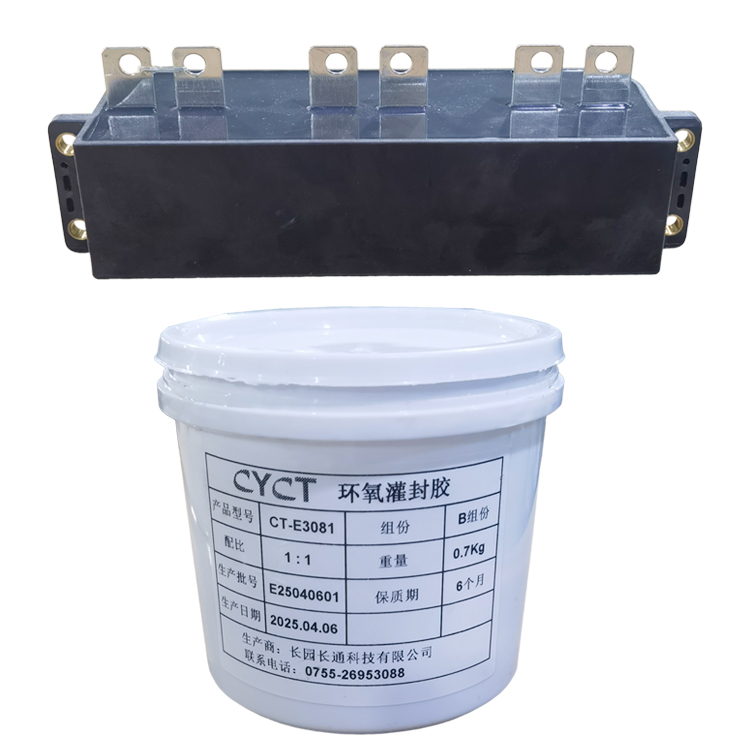

Mainly suitable for waterproof sealing and heat dissipation protection of new energy film capacitor products, power supplies and other large and medium-sized electronic products.
Item | Unit | Performance | Test method |
Before Curing | Appearance | A component | / | Black viscous liquid | Visual |
B component | / | Gray-white liquid | Visual |
Viscosity | A component | mPa·s | 125000±5000 | GB/T 2794-2022 |
B component | mPa·s | 35000±5000 | GB/T 2794-2022 |
Density | A component | g/cm3 | 1.75±0.05 | GB/T 13354-1992 |
B component | g/cm3 | 1.80±0.05 | GB/T 13354-1992 |
Mixing ratio | A:B | 1 ： 1 | Mass Ratio |
Mix viscosity 70℃ | mPa·s | 1500±500 | GB/T 2794-2022 |
Operation time | min | 70 | / |
| After Curing | Density | g/cm3 | 1.80
| GB/T 4472-2011 |
Hardness | Shore D | 100 | GB/T 531.1-2008 |
| Glass transition temperature | ℃ | ≥105 |
|
| Linear expansion coefficient CTE | μm/m.℃ | 27.3 |
|
| Tensile strength | MPa | 41 |
|
| Elongation at break |
| 0.3% |
|
| Flexural strength | MPa | 66 |
|
Dielectric strength | KV/mm | ≥25 | GB/T 1695-2005 |
| Volume resistivity | Ω·cm | ≥1.0x1017 | GB/T 1692-2008 |
| Shear strength |
|
|
|
| Al3003/AI3003 | MPa | ≥6 |
|
| PPS+GF | MPa | ≥5 |
|
| Dielectric constant |
| 3.6 |
|
| Dielectric loss |
| 0.7% |
|
| Water absorption after boiling for 1h |
| ＜0.1% |
|
Thermal conductivity | W/m · K | 0.7-0.9 | ASTM D5470 |
| Comparative leakage index CTI | V | 600 |
|
Flame Retardancy | / | V-0 | UL 94 |
