How Do You Protect a Capacitor?

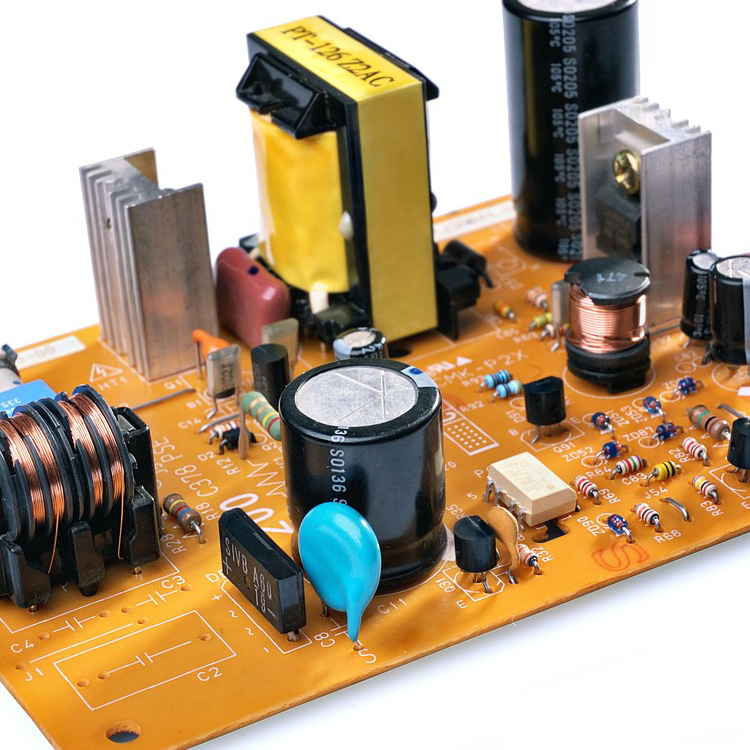

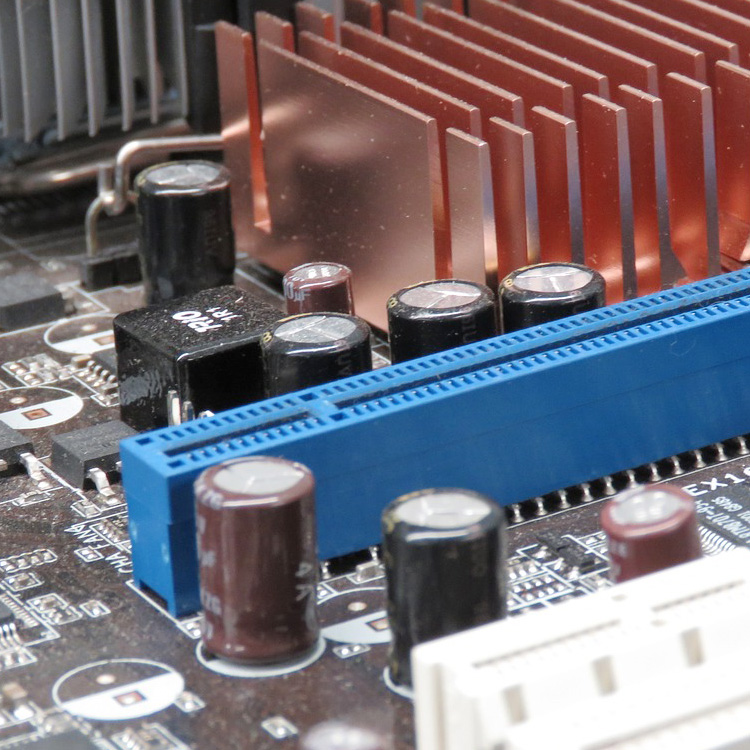

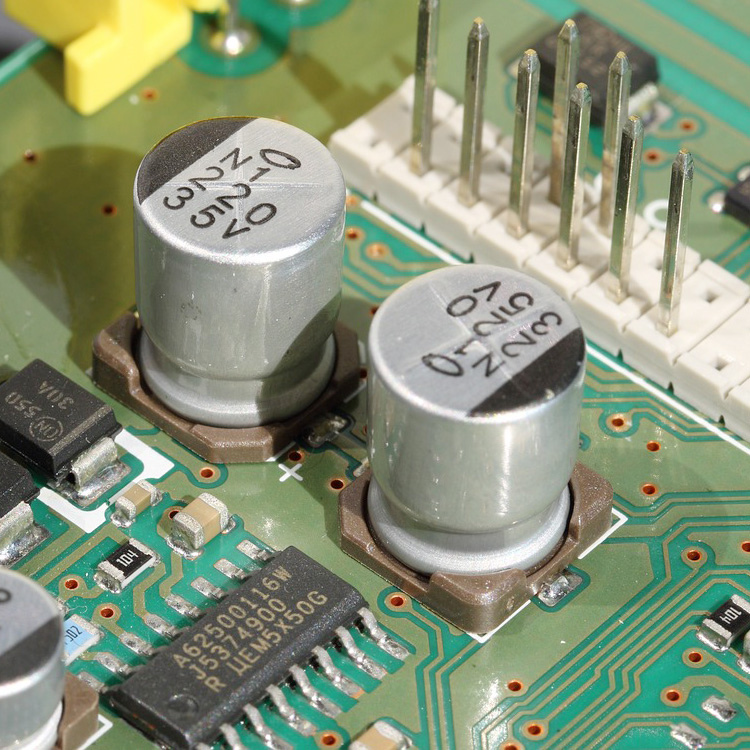

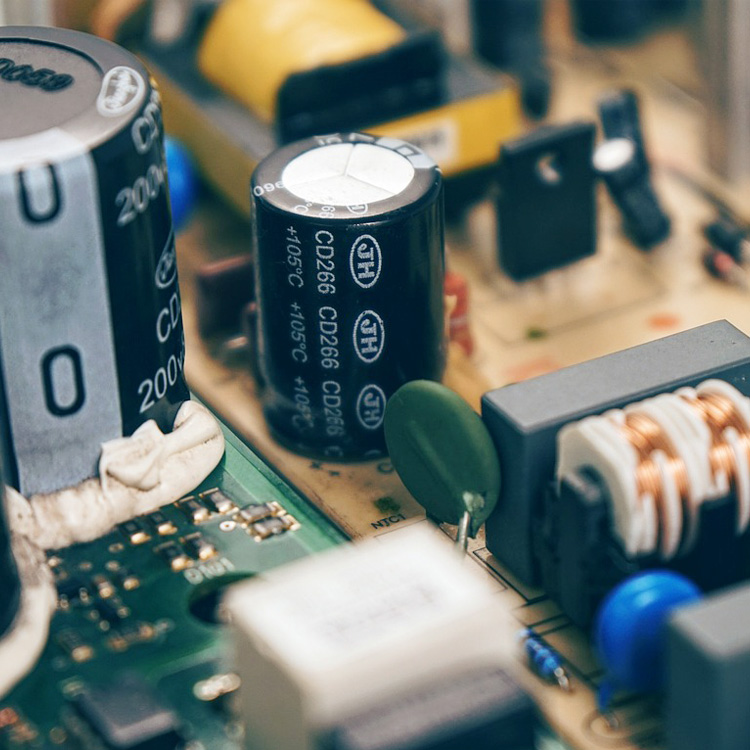

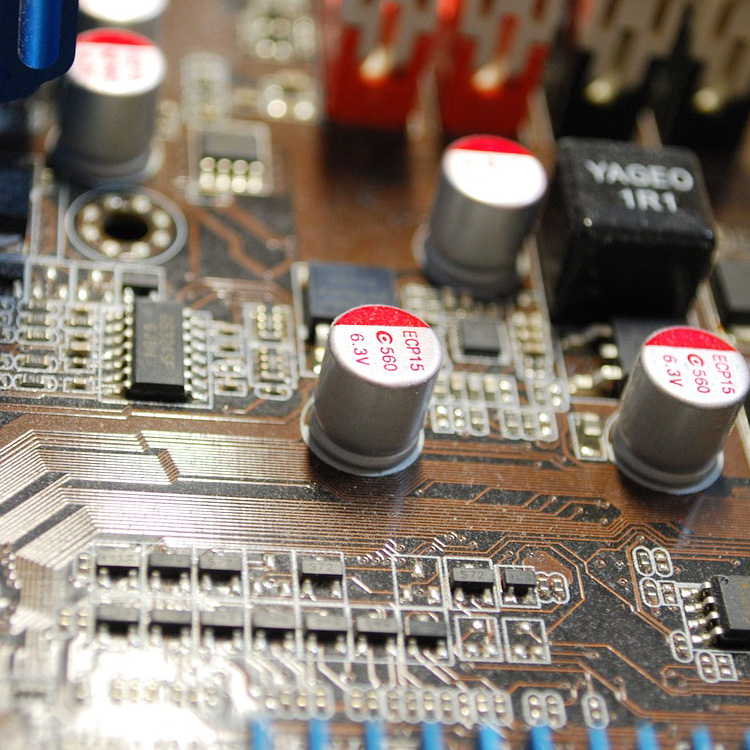

Capacitors are vital components in electronic circuits, serving functions such as energy storage, signal filtering, and voltage regulation. While capacitors are robust and reliable, they can be vulnerable to damage from electrical, thermal, mechanical, and environmental stresses. Protecting capacitors is essential to ensure the longevity and efficiency of electronic devices. This article delves into various methods and practices for protecting capacitors and preventing premature failure.
Capacitors are exposed to several risks in their operating environments, including:
Overvoltage: Exceeding a capacitor’s voltage rating can lead to dielectric breakdown, causing the component to fail.
Overcurrent: Excessive current can overheat the capacitor, damaging its internal structure.
Thermal Stress: High operating temperatures or rapid temperature changes can degrade a capacitor’s materials over time.
Mechanical Stress: Vibrations, shocks, or improper mounting can lead to physical damage.
Environmental Factors: Moisture, dust, and corrosive substances can affect a capacitor’s performance and longevity.
Implementing protective measures can mitigate these risks and ensure reliable operation.
One of the simplest ways to protect a capacitor is to select one with an appropriate voltage rating. Capacitors should always have a voltage rating higher than the maximum voltage they are expected to encounter in the circuit. A common practice is to add a safety margin of 20-50% to the rated voltage.
Excessive current can cause overheating and damage the capacitor’s dielectric material. To prevent this:
Use resistors or inductors to limit inrush current.
Incorporate circuit designs that distribute current evenly across multiple capacitors.
Select capacitors with a ripple current rating suitable for the application.
Capacitors are sensitive to high temperatures, which can degrade their performance and shorten their lifespan. Effective thermal management includes:
Ensuring adequate airflow or ventilation around capacitors.
Using heat sinks or thermal pads to dissipate heat.
Selecting capacitors with a high-temperature rating for demanding environments.
To protect capacitors from moisture, dust, and corrosive substances:
Use conformal coatings or potting compounds to seal the capacitor.
Encase the capacitor in a protective housing or enclosure.
Install capacitors in controlled environments to minimize exposure to harsh conditions.
Voltage surges can damage capacitors by exceeding their voltage rating. Surge protection devices, such as varistors or transient voltage suppressors (TVS), can absorb excess energy and protect capacitors from spikes.
Proper mounting can reduce mechanical stress on capacitors. Key practices include:
Using flexible leads or mounting techniques to absorb vibrations and shocks.
Avoiding excessive force during installation to prevent bending or cracking.
Ensuring the capacitor is securely fastened to prevent movement.
Fuses or circuit breakers can provide an additional layer of protection by interrupting the circuit in case of a fault, preventing further damage to the capacitor or surrounding components.
Periodic inspection and maintenance can identify potential issues before they lead to capacitor failure. Look for:
Signs of bulging, leakage, or discoloration.
Changes in capacitance or equivalent series resistance (ESR) values.
Loose connections or mounting issues.
Derating involves operating a capacitor below its maximum voltage, current, or temperature limits to increase reliability. For example:
Use a capacitor rated for 105°C in a circuit that operates at 85°C.
Select a capacitor with a voltage rating 1.5 to 2 times the circuit’s operating voltage.

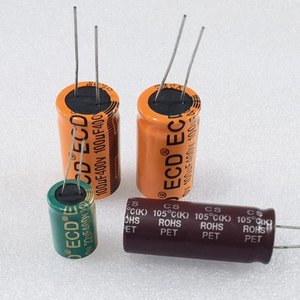

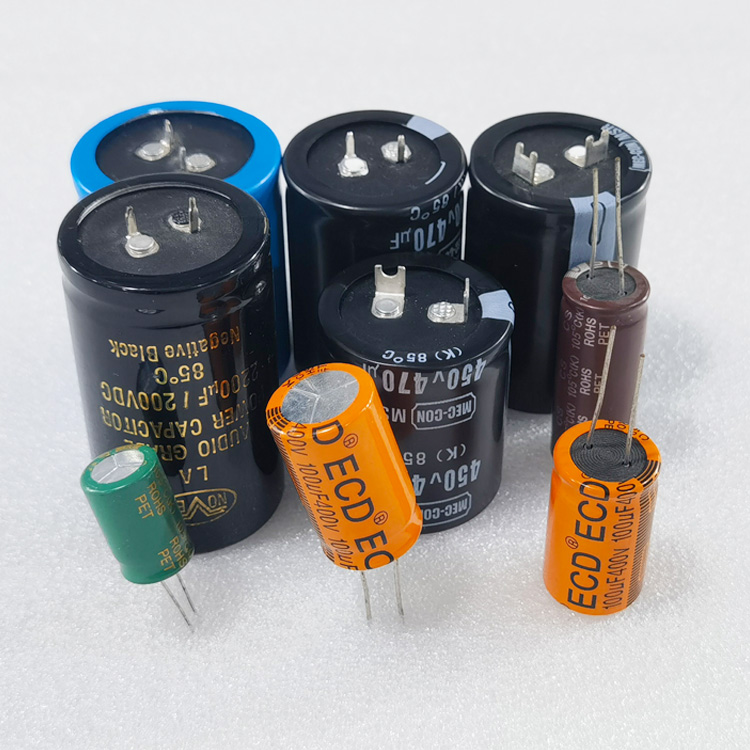

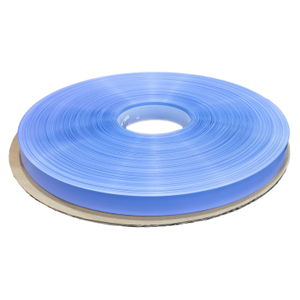

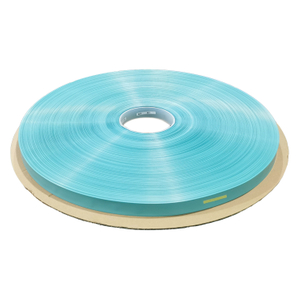

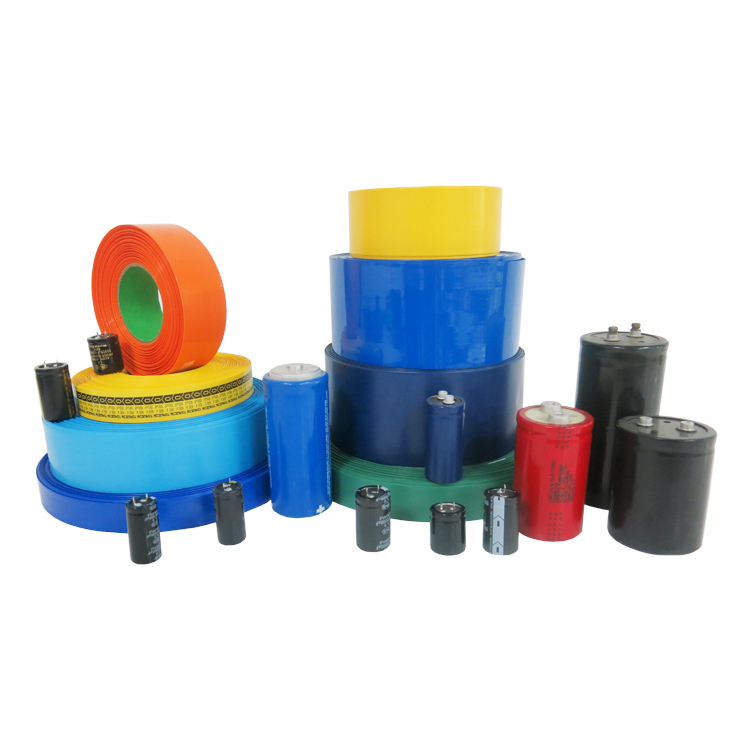

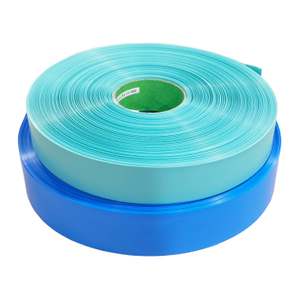

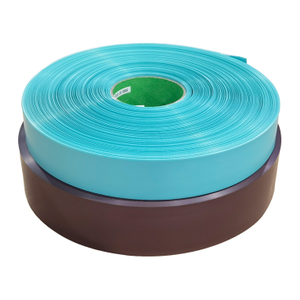

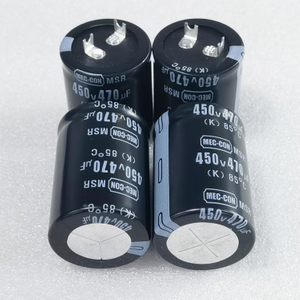

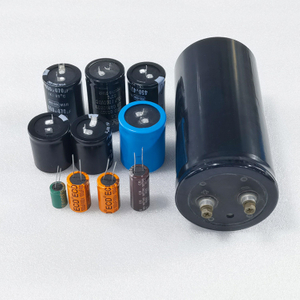

Capacitor sleeves provide an additional layer of protection by insulating the capacitor body, preventing short circuits, and shielding it from physical and environmental damage. Sleeves are typically made of heat-shrinkable plastic such as PET heat shrink sleeves and PVC heat shrink sleeves, and are especially useful in high-density circuit boards.
For polarized capacitors, such as electrolytic capacitors, reverse polarity can cause catastrophic failure. To prevent this:
Use diodes or polarity protection circuits to ensure correct installation.
Clearly label capacitor terminals and circuit connections.
Different capacitor types have varying strengths and weaknesses. Choosing the right capacitor for the application can reduce the risk of failure. For example:
Ceramic Capacitors: Suitable for high-frequency applications but sensitive to mechanical stress.
Electrolytic Capacitors: High capacitance but prone to leakage and aging.
Film Capacitors: Excellent stability and longevity but larger in size.
Recognizing early signs of capacitor damage can help prevent larger system failures. Symptoms include:
Bulging or swelling of the capacitor body.
Leakage of electrolyte or unusual odors.
Increased circuit noise or instability.
Decreased capacitance or increased ESR.
Protecting capacitors is a crucial aspect of maintaining the reliability and efficiency of electronic circuits. By implementing appropriate measures, such as using the right voltage ratings, ensuring proper thermal management, and incorporating surge protection, you can extend the lifespan of capacitors and prevent costly failures. Regular maintenance and careful selection of components further enhance the durability and performance of capacitors in various applications. By prioritizing capacitor protection, you ensure the overall stability and longevity of your electronic systems.
