When it comes to working with lithium-ion batteries, particularly the 21700 size, ensuring proper insulation and protection is crucial. One of the most effective ways to achieve this is through the use of heat shrink tubing. This article will explore the various aspects of selecting the right size heat shrink for 21700 batteries, including the types of heat shrink available, the importance of proper sizing, and the installation process.

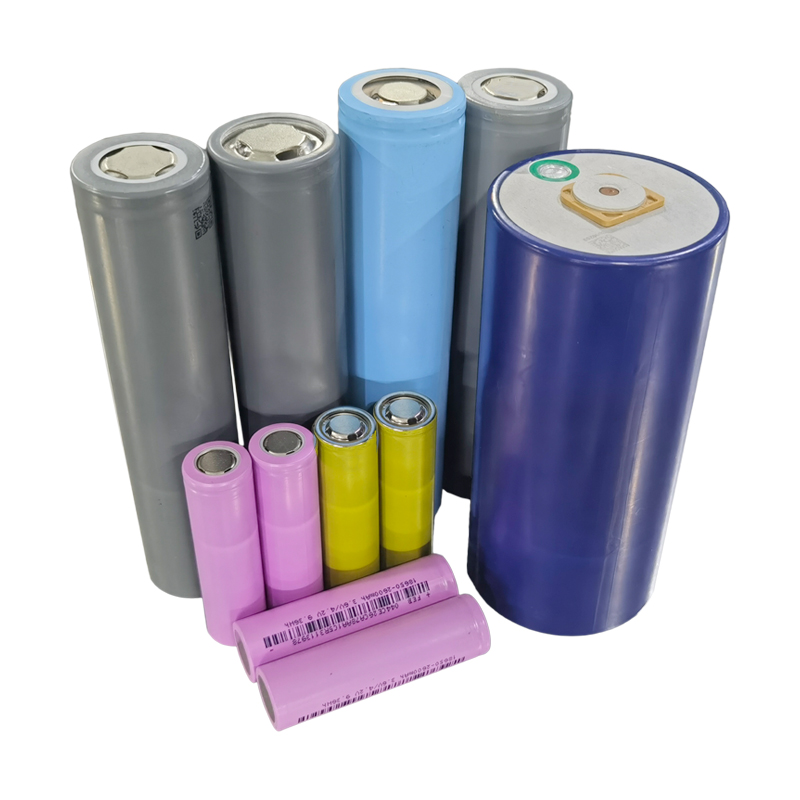

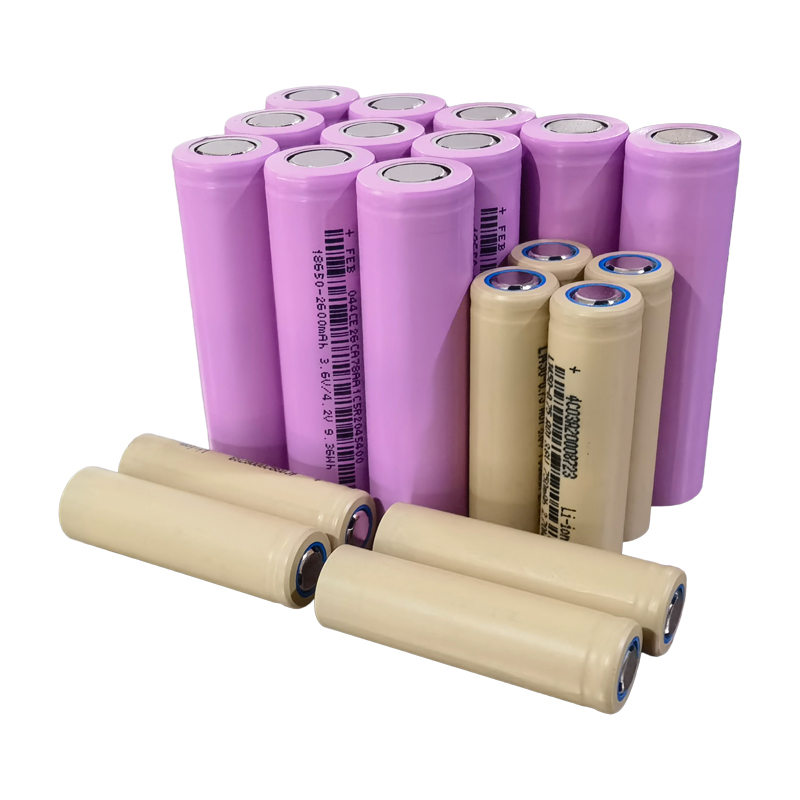

The 21700 battery is a cylindrical lithium-ion battery that measures 21mm in diameter and 70mm in length. It has gained popularity in various applications, including electric vehicles, power tools, and portable electronics, due to its high energy density and capacity. The 21700 battery typically has a capacity ranging from 3000mAh to 5000mAh, making it a preferred choice for high-performance devices.
The versatility of 21700 batteries allows them to be used in a wide range of applications. Some common uses include:
- Electric Vehicles (EVs): Many EV manufacturers are adopting 21700 batteries for their superior energy density and performance. The increased capacity allows for longer driving ranges and improved efficiency.
- Power Tools: The high capacity of these batteries makes them ideal for power tools that require sustained energy output. They provide the necessary power for demanding tasks while maintaining a lightweight profile.
- Consumer Electronics: Devices such as laptops, drones, and flashlights benefit from the compact size and high capacity of 21700 batteries. Their ability to deliver high currents makes them suitable for devices that require quick bursts of energy.
Heat shrink tubing is a type of plastic tubing that shrinks in diameter when heated. It is commonly used to insulate electrical wires and components, providing protection against abrasion, moisture, and environmental factors. In the context of batteries, heat shrink tubing serves several important functions:
- Insulation: It prevents short circuits by insulating the battery terminals and connections. This is particularly important in high-capacity batteries like the 21700, where the risk of short circuits can lead to catastrophic failures.
- Protection: It shields the battery from physical damage and environmental exposure. Heat shrink tubing can withstand various conditions, including moisture, dust, and mechanical stress.
- Identification: Different colors of heat shrink can be used to identify battery types or specifications. This is useful in applications where multiple battery types are used, allowing for easy identification and organization.
Using heat shrink tubing for 21700 batteries is essential for several reasons:
- Safety: Proper insulation reduces the risk of short circuits, which can lead to battery failure or even fires. The high energy density of 21700 batteries makes them particularly sensitive to short circuits.
- Durability: Heat shrink provides a robust protective layer that can withstand harsh conditions. This is crucial for batteries used in outdoor or industrial applications where exposure to the elements is common.
- Aesthetics: A clean, professional appearance can be achieved by using heat shrink tubing. This is particularly important in consumer electronics, where presentation matters.
To select the appropriate size of heat shrink tubing for a 21700 battery, accurate measurements are essential. The key dimensions to consider include:
- Diameter: Measure the diameter of the battery at its widest point. For a 21700 battery, this is typically around 21mm.
- Length: Measure the length of the battery, which is usually 70mm.
When choosing heat shrink tubing, it is important to consider the shrink ratio. Heat shrink tubing is available in various shrink ratios, typically ranging from 2:1 to 6:1. This means that the tubing can shrink to a size that is 50% to 16.67% of its original diameter.
For 21700 batteries, a common choice is to use heat shrink tubing with a 2:1 shrink ratio. This allows for a snug fit while providing enough room for any additional components, such as battery management systems (BMS) or connectors.
Based on the measurements of a 21700 battery, the following sizes of heat shrink tubing are generally recommended:
- Diameter: Choose heat shrink tubing with an expanded diameter of approximately 25mm to 30mm. This will ensure that the tubing can easily fit over the battery and any additional components.
- Length: The length of the heat shrink should be at least 80mm to provide adequate coverage for the entire battery and any connections.
Before applying heat shrink tubing, it is important to prepare the battery:
1. Clean the Surface: Ensure that the battery surface is clean and free from dust or debris. This will help the heat shrink adhere properly and provide a better seal.
2. Inspect Connections: Check all connections to ensure they are secure and properly soldered. Loose connections can lead to increased resistance and potential overheating.
Once the battery is prepared, follow these steps to apply the heat shrink tubing:
1. Cut the Tubing: Cut a piece of heat shrink tubing to the desired length, ensuring it is long enough to cover the battery and any connections.
2. Slide the Tubing: Carefully slide the heat shrink tubing over the battery, ensuring it covers all exposed areas.
3. Heat the Tubing: Use an automatic sleeving machine or a heat gun to evenly heat the tubing. Move the heat source around to avoid overheating any one area. The tubing will begin to shrink and conform to the shape of the battery.
4. Allow to Cool: Once the tubing has fully shrunk, allow it to cool before handling the battery. This ensures that the tubing maintains its shape and provides a secure fit.
After installation, perform a final inspection to ensure that the heat shrink tubing is securely in place and that there are no exposed areas on the battery. This step is crucial for ensuring the safety and longevity of the battery.
One common issue when applying heat shrink tubing is overheating, which can damage the battery. To avoid this, maintain a safe distance between the heat source and the tubing, and keep the heat gun moving. Overheating can lead to melting of the battery casing or even thermal runaway in extreme cases.
If the tubing does not shrink completely, it may not provide adequate protection. Ensure that the heat is applied evenly and that the tubing is of the correct size. If necessary, reapply heat until it shrinks properly. Incomplete shrinking can leave areas of the battery exposed, increasing the risk of damage.
If the tubing is not aligned properly, it may not cover the battery completely. Take care to position the tubing correctly before applying heat. Misalignment can lead to uneven protection and potential short circuits.

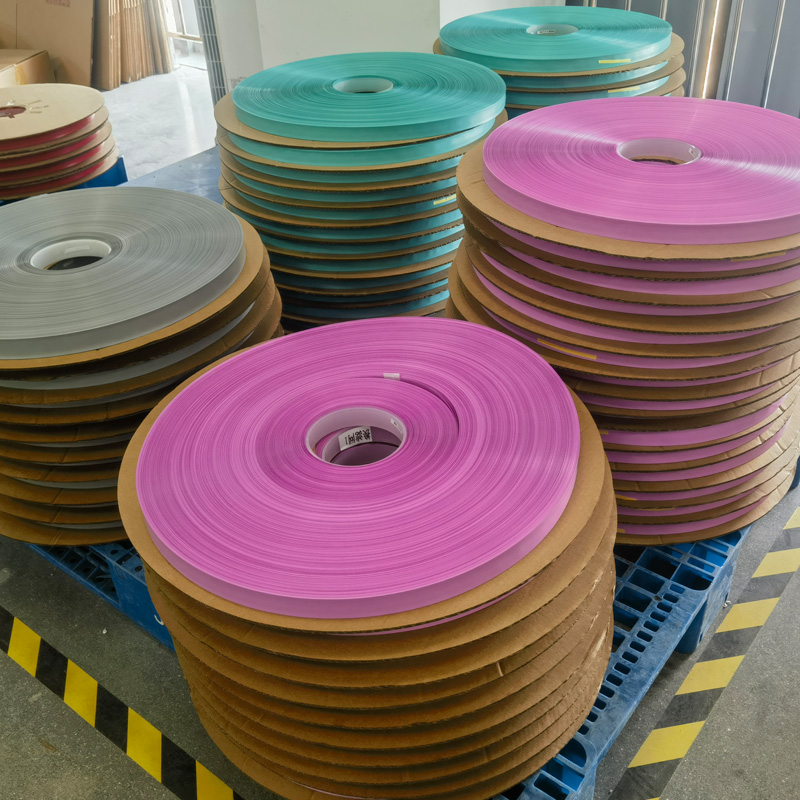

PET is one of the most common materials used for heat shrink tubing, with environmentally friendly and recyclable performance, and compliant with global sustainable development. It offers excellent electrical insulation properties and is resistant to chemicals and moisture. PET Heat Shrink Tube is flexible and can withstand a wide range of temperatures, making it suitable for various applications, including battery cell insulation.
Polyvinyl chloride (PVC) is another popular material for heat shrink tubing. It is less flexible than PET but offers good insulation and is often used in applications where cost is a concern. PVC tubing is available in various colors, making it useful for identification purposes.
Fluoropolymer heat shrink tubing is known for its high-temperature resistance and chemical inertness. It is often used in specialized applications where exposure to harsh chemicals or extreme temperatures is expected. While more expensive than other materials, its durability makes it a worthwhile investment in critical applications.
Heat shrink tubing provides thermal insulation, which can help maintain the optimal operating temperature of the battery. This is particularly important for high-capacity batteries like the 21700, which can generate significant heat during operation. Proper thermal management can enhance battery performance and longevity.
While heat shrink tubing provides insulation, it is also important to consider heat dissipation. In some cases, excessive insulation can trap heat, leading to overheating. It is essential to balance insulation with the need for heat dissipation, especially in high-drain applications.
When working with heat shrink tubing and batteries, it is important to wear appropriate personal protective equipment. This may include safety goggles, gloves, and heat-resistant clothing to protect against burns and other injuries.
Ensure that the work area is well-ventilated when using heat guns or other heating devices. Fumes from heated materials can be harmful if inhaled, so proper ventilation is essential for safety.
Always handle batteries with care, especially lithium-ion batteries, which can be sensitive to physical damage. Avoid puncturing or crushing the battery, as this can lead to leaks or thermal runaway.
Selecting the right size heat shrink tubing for 21700 batteries is crucial for ensuring safety, durability, and performance. By understanding the dimensions of the battery, the properties of heat shrink tubing, and the installation process, you can effectively protect your batteries and enhance their longevity. Always remember to choose high-quality heat shrink tubing and follow proper installation techniques to achieve the best results.
1. What is the typical diameter of heat shrink tubing for a 21700 battery?
- The typical diameter for heat shrink tubing for a 21700 battery is around 25mm to 30mm when expanded.
2. What is the recommended shrink ratio for heat shrink tubing?
- A 2:1 shrink ratio is commonly recommended for 21700 batteries.
3. How long should the heat shrink tubing be for a 21700 battery?
- The heat shrink tubing should be at least 80mm long to adequately cover the battery and connections.
4. Can I use a lighter instead of a heat gun for shrinking?
- Yes, a lighter can be used, but it requires careful handling to avoid overheating the tubing or damaging the battery.
5. What should I do if the heat shrink tubing does not shrink completely?
- Ensure that you are applying heat evenly and that the tubing is the correct size. If necessary, reapply heat until it shrinks properly.
