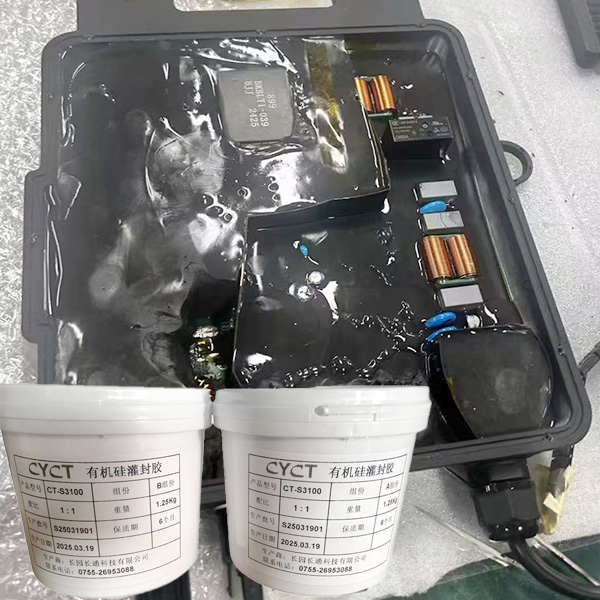

Silicone potting compounds have become essential materials in various industries, particularly in electronics and electrical applications where thermal management is crucial. These versatile materials protect sensitive components from environmental factors while often needing to address heat dissipation requirements. This comprehensive article explores the thermal conductivity of silicone potting compounds, examining their properties, applications, and how they compare to other potting materials.
Thermal conductivity refers to a material's ability to conduct heat. Measured in watts per meter-kelvin (W/m·K), this property determines how effectively heat transfers through a material. For electronic components that generate heat during operation, using a potting compound with appropriate thermal conductivity can significantly impact performance and longevity.
Silicone potting compounds generally exhibit thermal conductivity values ranging from:
- 0.15-0.3 W/m·K for standard formulations
- Up to 1-3 W/m·K for thermally enhanced versions
Several factors influence the thermal performance of silicone potting materials:
The silicone polymer matrix itself has relatively low intrinsic thermal conductivity. However, the flexibility and temperature resistance of silicone make it an excellent base for thermally conductive formulations.
Manufacturers enhance thermal conductivity by adding various fillers:
- Alumina (aluminum oxide)
- Boron nitride
- Aluminum nitride
- Silicon carbide
- Metallic particles (in some specialized formulations)
Higher filler content generally increases thermal conductivity but may affect other properties:
- Viscosity increases
- Pot life may decrease
- Mechanical properties can change
The size, shape, and distribution of filler particles significantly impact thermal pathways:
- Larger particles can create more continuous thermal paths
- Proper particle size distribution improves packing density
- Anisotropic particles (like flakes or fibers) can create directional conductivity
| Material Type | Typical Thermal Conductivity (W/m·K) | Key Characteristics |
| Standard Silicone | 0.15-0.3 | Excellent flexibility, wide temp range |
| Thermally Conductive Silicone | 0.5-3.0 | Enhanced heat transfer, maintains flexibility |
| Epoxy | 0.2-1.5 | Rigid, good adhesion, higher strength |
| Polyurethane | 0.2-0.5 | Good moisture resistance, moderate flexibility |
| Non-silicone Thermal Compounds | Up to 10+ | Specialized high-performance applications |
LED drivers and high-power LED arrays generate significant heat. Thermally conductive silicone potting:
- Protects against environmental factors
- Helps transfer heat to heat sinks
- Maintains performance in high-temperature conditions
- Power supplies
- Inverters
- Motor drives
- Battery management systems
Modern vehicles contain numerous electronic systems that benefit from silicone potting:
- ECU modules
- Sensor assemblies
- Charging systems for electric vehicles
Solar inverters and wind turbine electronics require both protection and thermal management.
Beyond thermal conductivity, silicone potting offers several benefits:
1. Wide Temperature Range: Typically -40°C to +200°C or higher
2. Excellent Electrical Insulation: Even when filled with conductive particles
3. Flexibility: Maintains performance under thermal cycling and vibration
4. Chemical Resistance: Withstands many environmental challenges
5. Low Stress: Minimizes stress on components during temperature changes
While thermally conductive silicone potting compounds offer many advantages, there are some limitations:
1. Cost: Thermally enhanced formulations are more expensive than standard silicones
2. Process Requirements: Some high-fill compounds require special mixing or degassing
3. Cure Time: Many silicones require longer cure times than epoxy alternatives
4. Adhesion: May require primers for optimal bonding to some substrates
When choosing a silicone potting compound for thermal management, consider:
1. Required Thermal Conductivity: Match to your specific heat dissipation needs
2. Operating Temperature Range: Ensure compatibility with application requirements
3. Viscosity and Flow Characteristics: Important for proper encapsulation
4. Cure Chemistry: Room temperature vulcanizing (RTV) vs. heat cure
5. UL and Other Certifications: May be required for certain applications
Proper application affects thermal performance:
1. Component Preparation: Clean surfaces for best thermal transfer
2. Mixing: Thoroughly mix two-part systems for consistent properties
3. Degassing: Remove air bubbles that can insulate heat transfer
4. Cure Conditions: Follow manufacturer recommendations for complete curing
Research continues to improve silicone potting compounds:
1. Nanotechnology: Incorporating nano-fillers for enhanced properties
2. Hybrid Systems: Combining different filler types for optimized performance
3. Smart Materials: Phase-change materials for dynamic thermal management
4. Sustainable Formulations: Environmentally friendly alternatives
While both transfer heat, silicone potting provides complete environmental protection and can conform perfectly to complex geometries. Thermal pads are typically used between two solid surfaces.
In rare cases, excessive thermal conductivity might rapidly transfer heat to sensitive areas. Proper thermal design considers the entire system's heat flow.
While filler type and loading primarily determine conductivity, some pigments can slightly affect performance. Carbon black, for instance, may marginally increase conductivity.
Properly formulated and applied silicone potting can last 10-20 years or more, depending on environmental conditions.
This is not recommended. Formulating potting compounds requires precise control of multiple factors. DIY modifications typically degrade overall performance.
Silicone potting compounds can indeed be thermally conductive, especially when formulated with appropriate fillers. While standard silicones have modest thermal conductivity, specially engineered versions offer significantly improved heat transfer capabilities while maintaining the other beneficial properties of silicone. The choice between standard and thermally enhanced silicone potting depends on your specific application requirements, balancing thermal performance against other factors like cost, processing requirements, and mechanical properties.
