18650 batteries are widely used in various applications, from electric vehicles to portable electronics. However, they are susceptible to environmental factors such as moisture, vibration, and temperature fluctuations. One effective way to enhance their durability and performance is by using potting compounds. This article will explore how to protect 18650 batteries with potting compounds, detailing the process, benefits, and considerations involved. By understanding the importance of potting compounds, you can ensure that your batteries remain safe and functional in diverse conditions.

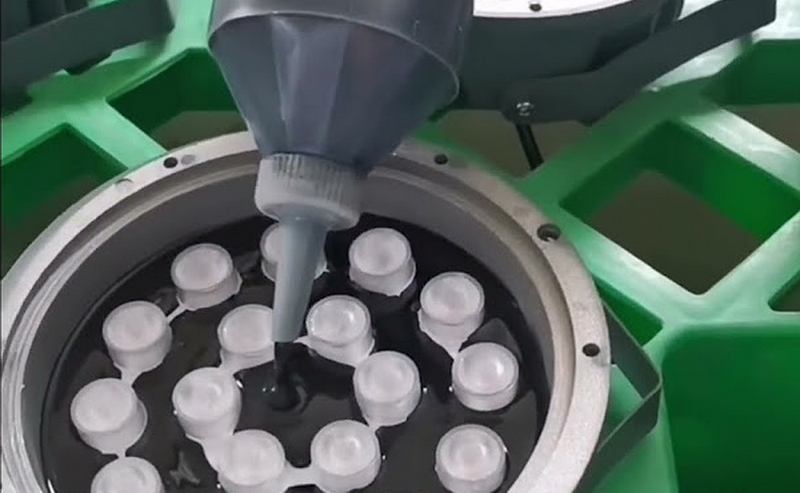

Potting compounds are materials used to encapsulate electronic components, providing protection against environmental hazards. These compounds can be made from various materials, including epoxy, silicone, and polyurethane. Each type of potting compound has unique properties that make it suitable for different applications. They serve multiple purposes, such as:
- Moisture Protection: Potting compounds create a hermetic seal around the battery, preventing water ingress that can lead to corrosion and short-circuiting. This is particularly important in applications where batteries may be exposed to rain or high humidity.
- Vibration Dampening: Batteries are often subjected to mechanical shocks and vibrations, especially in portable devices and vehicles. Potting compounds absorb these shocks, protecting the battery cells from damage and ensuring reliable performance.
- Thermal Management: Batteries generate heat during operation, and excessive heat can lead to reduced efficiency or even failure. Potting compounds help dissipate heat, maintaining optimal operating temperatures and enhancing battery life.
1. Epoxy: Known for its durability and chemical resistance, epoxy potting compounds are ideal for applications requiring a hard protective shell. They provide excellent adhesion and can withstand harsh environmental conditions, making them suitable for industrial applications.
2. Silicone: Offers flexibility and excellent thermal conductivity, making it suitable for applications where heat dissipation is critical. Silicone potting compounds can absorb vibrations and are often used in consumer electronics where durability and flexibility are essential.
3. Polyurethane: Provides a balance between flexibility and hardness, often used in applications requiring moderate protection. Polyurethane compounds are versatile and can be tailored to meet specific performance requirements, making them a popular choice for various battery applications.
Using potting compounds for 18650 batteries offers several advantages that enhance both safety and performance:
- Enhanced Safety: Potting compounds can help prevent thermal runaway, a dangerous condition where a battery overheats and potentially catches fire. By encapsulating the battery, the potting compound acts as a barrier against external factors that could trigger such events.
- Increased Longevity: By protecting against moisture and mechanical stress, potting compounds can extend the lifespan of the batteries. This is particularly important in applications where battery replacement is costly or inconvenient, such as in electric vehicles.
- Improved Performance: Potting compounds can help maintain optimal operating temperatures, ensuring the batteries perform efficiently. This is crucial in high-drain applications where consistent performance is necessary for user satisfaction.
- 18650 Batteries: Ensure they are clean and free from any contaminants. This step is vital as any dirt or oil can affect the adhesion of the potting compound.
- Potting Compound: Choose the appropriate type based on your application. Consider factors such as thermal conductivity, flexibility, and environmental resistance when selecting a compound.
- Mixing Tools: For combining the potting compound components. Proper mixing is essential to achieve the desired properties of the compound.
- Dispensing Tools: Syringes or squeeze tubes for applying the compound. These tools allow for precise application, ensuring that the compound fills all necessary areas.
1. Preparation:
- Clean the batteries to remove any dust or oils. Use isopropyl alcohol and a lint-free cloth to ensure a clean surface.
- Prepare the workspace, ensuring it is well-ventilated. This is important as some potting compounds can emit fumes during the curing process.
2. Mixing the Potting Compound:
- Follow the manufacturer's instructions for mixing the potting compound. Typically, this involves combining two parts (resin and hardener) in a specific ratio.
- Mix thoroughly to avoid air bubbles. Air bubbles can compromise the integrity of the potting and reduce its effectiveness.
3. Applying the Potting Compound:

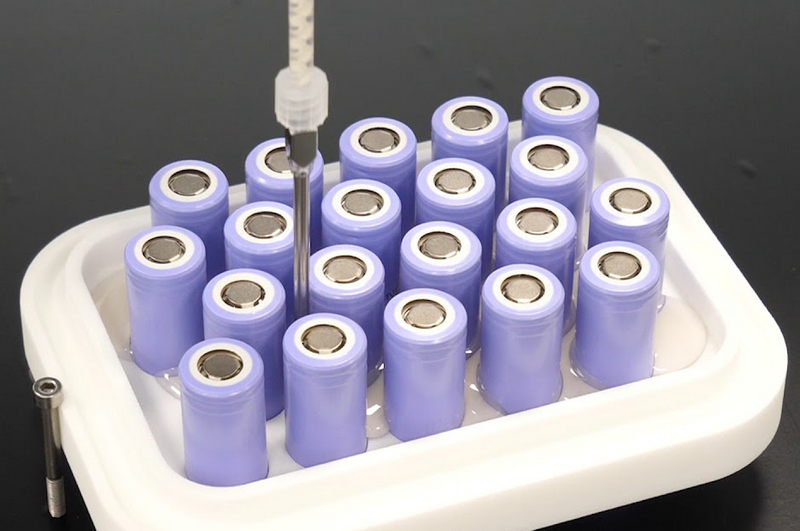

- Use a syringe or squeeze tube to apply the compound around the battery cells. Start from one end and work your way to the other, ensuring even coverage.
- Ensure that the compound fills all voids and encapsulates the batteries completely. This step is crucial for maximizing protection against environmental factors.
4. Curing:
- Allow the potting compound to cure as per the manufacturer's instructions. This may take several hours to days, depending on the compound used. Proper curing is essential for achieving the desired mechanical and thermal properties.
5. Final Inspection:
- Once cured, inspect the batteries to ensure they are fully encapsulated and there are no exposed areas. This step is important to confirm that the potting process was successful and that the batteries are adequately protected.
- Thermal Conductivity: Choose a potting compound with good thermal conductivity to manage heat effectively. This is especially important in high-drain applications where heat generation is significant.
- Flexibility vs. Rigidity: Depending on the application, you may need a flexible compound to absorb vibrations or a rigid one for maximum protection. Consider the operating environment and potential mechanical stresses when making your choice.
- Environmental Resistance: Ensure the potting compound is resistant to chemicals and moisture relevant to your application. This is particularly important in outdoor or industrial settings where exposure to harsh conditions is likely.
Potting compounds are used in various applications, including:
- Electric Vehicles: Protecting battery packs from environmental stressors. In electric vehicles, the battery is subjected to vibrations, temperature changes, and moisture, making potting essential for safety and performance.
- Consumer Electronics: Ensuring the longevity of batteries in devices like laptops and smartphones. Potting compounds help protect against accidental spills and drops, which are common in everyday use.
- Industrial Equipment: Providing robust protection for batteries used in heavy machinery. In industrial settings, batteries may be exposed to dust, moisture, and extreme temperatures, making potting a critical component of battery design.
Protecting 18650 batteries with potting compounds is a highly effective method to enhance their durability and performance. By following the proper procedures and selecting the right materials, you can ensure that your batteries are well-protected against environmental hazards. This not only improves safety but also extends the lifespan of the batteries, making them a reliable choice for various applications. As technology continues to evolve, the importance of effective battery protection will only grow, making potting compounds an essential consideration for manufacturers and users alike.
1. What is the best potting compound for 18650 batteries?
- The best potting compound depends on your specific application. Epoxy is great for durability, while silicone is better for thermal management. Consider the operating environment and performance requirements when making your choice.
2. How long does it take for potting compound to cure?
- Curing time varies by compound but typically ranges from a few hours to several days. Always refer to the manufacturer's instructions for specific curing times.
3. Can I remove the potting compound later?
- Removing potting compound can be challenging and may damage the batteries. It is generally not recommended unless absolutely necessary, as it can compromise the integrity of the battery.
4. Is potting compound waterproof?
- Most potting compounds provide excellent moisture resistance, making them suitable for waterproofing applications. However, it's essential to verify the specific properties of the compound you choose.
5. Can I pot multiple batteries together?
- Yes, you can pot multiple batteries together, but ensure that they are properly spaced to avoid thermal runaway. Proper spacing helps manage heat and prevents one battery's failure from affecting others.
