Radiation crosslinking is a sophisticated process that enhances the properties of polymers by creating covalent bonds between their molecular chains. This technique is widely utilized in various industries, particularly in the production of heat shrink tubing, corrosion-resistant materials, and other advanced polymer applications. In this article, we will explore the fundamentals of radiation crosslinking, its applications, the types of radiation used, and its significance in modern material science.
Crosslinking refers to the process of chemically joining two or more polymer chains together. This can be achieved through various methods, including chemical agents or physical processes. Radiation crosslinking specifically utilizes high-energy radiation, such as gamma rays or electron beams, to initiate the crosslinking reaction. The result is a three-dimensional network structure that significantly enhances the material's mechanical and thermal properties.
When polymers are exposed to ionizing radiation, the energy from the radiation breaks the chemical bonds within the polymer chains, creating free radicals. These free radicals are highly reactive and can interact with neighboring polymer chains, forming new covalent bonds. This process results in a network structure that enhances the material's strength, durability, and resistance to various environmental factors.
1. Gamma Radiation: Gamma radiation is produced by radioactive isotopes and is commonly used in industrial applications due to its deep penetration capabilities. It is effective for crosslinking thick materials and is often employed in the sterilization of medical devices.
2. Electron Beam (E-Beam) Radiation: E-beam radiation is generated by accelerating electrons to high speeds and directing them onto the material. This method allows for precise control over the radiation dose and is often used for thinner materials, such as films and coatings.
3. X-ray Radiation: X-ray radiation is another form of ionizing radiation that can be used for crosslinking. It has applications in various fields, including medical imaging and material processing. X-rays can penetrate materials to a certain depth, making them suitable for specific crosslinking applications.
Heat shrink tubing is one of the most common applications of radiation crosslinking. This tubing is made from polymer materials that shrink uniformly when heat is applied. The crosslinking process enhances the tubing's ability to conform tightly around electrical connections and components, providing a secure and protective covering. The improved properties of crosslinked heat shrink tubing include increased resistance to heat, chemicals, and mechanical stress, making it ideal for various electrical and electronic applications.
In industries such as oil and gas, radiation crosslinking is used to produce corrosion-resistant coatings and linings for pipes and tanks, such as 3-layer PE/PP coatings and PE/PP heat shrinkable sleeves for pipeline welded joint protection. The enhanced properties of crosslinked polymers make them suitable for withstanding harsh environmental conditions, including exposure to chemicals, moisture, and extreme temperatures. Crosslinked materials exhibit improved adhesion, flexibility, and durability, which are essential for maintaining the integrity of pipelines and storage tanks.

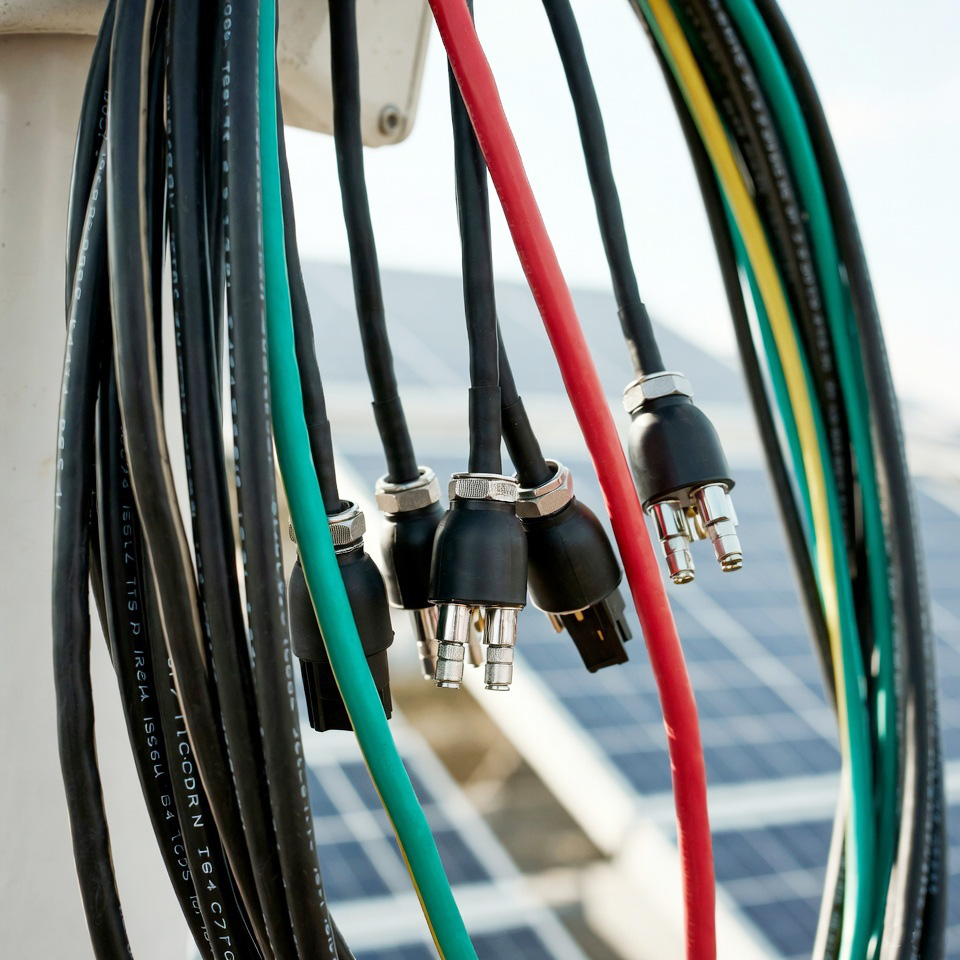

Radiation crosslinking is extensively used in the production of crosslinked cables and wires. The process improves the electrical insulation properties, thermal stability, and mechanical strength of the cables, making them suitable for demanding applications in automotive, aerospace, and industrial settings. Crosslinked cables are more resistant to abrasion, heat, and chemicals, ensuring reliable performance in challenging environments.
In the medical field, radiation crosslinking is employed to enhance the performance of various devices, including catheters, surgical instruments, and implants. The crosslinked materials exhibit improved biocompatibility, durability, and resistance to sterilization processes. This is particularly important in applications where materials must maintain their integrity and performance under harsh conditions, such as exposure to bodily fluids and sterilization methods.
Radiation crosslinking is also applied in the production of packaging materials. Crosslinked polymers can provide enhanced barrier properties, making them suitable for food packaging and other applications where moisture and oxygen resistance are critical. The improved mechanical properties of crosslinked films allow for thinner packaging solutions that still maintain strength and durability.
In the production of foam products, radiation crosslinking is used to enhance the properties of flexible and rigid foams. Crosslinked foams exhibit improved resilience, dimensional stability, and resistance to compression set. These properties are essential for applications in furniture, automotive seating, and insulation materials.
One of the primary benefits of radiation crosslinking is the significant improvement in the physical properties of polymers. Crosslinked materials typically exhibit:
- Increased Strength: The formation of a three-dimensional network structure enhances the tensile strength and impact resistance of the material.
- Improved Thermal Stability: Crosslinked polymers can withstand higher temperatures without melting or deforming, making them suitable for high-temperature applications.
- Chemical Resistance: The crosslinked structure provides enhanced resistance to solvents, oils, and other chemicals, extending the material's lifespan.
Radiation crosslinking can be applied to a wide range of polymers, including polyethylene, polypropylene, and rubber. This versatility allows manufacturers to tailor materials for specific applications, optimizing performance and cost-effectiveness.
Unlike chemical crosslinking methods that often require hazardous chemicals, radiation crosslinking is a cleaner process. It does not produce harmful byproducts, making it a more environmentally friendly option for enhancing polymer materials.
The initial investment in radiation crosslinking equipment can be significant. Facilities must be equipped with specialized radiation sources, such as electron beam accelerators or gamma irradiators. Additionally, the operational costs associated with maintaining these systems can be high.
Working with ionizing radiation poses safety risks. Proper safety protocols and shielding must be in place to protect workers and the environment from radiation exposure. Regulatory compliance is essential in facilities that utilize radiation crosslinking.
Not all polymers are suitable for radiation crosslinking. The effectiveness of the process can vary depending on the polymer's chemical structure and the desired properties. Manufacturers must carefully select materials and optimize processing conditions to achieve the best results.
As technology continues to evolve, new methods and equipment for radiation crosslinking are being developed. Innovations in electron beam technology, for example, are improving the efficiency and precision of the crosslinking process, allowing for better control over material properties. The development of more compact and cost-effective radiation sources is also making radiation crosslinking more accessible to smaller manufacturers.
The demand for high-performance materials is driving the expansion of radiation crosslinking applications. Industries such as automotive, aerospace, and renewable energy are increasingly adopting crosslinked polymers for their superior properties, leading to new opportunities for growth in this field. For instance, the automotive industry is utilizing crosslinked materials for lightweight components that require high strength and durability.
With a growing emphasis on sustainability, radiation crosslinking is being recognized for its environmentally friendly attributes. As industries seek to reduce their environmental impact, the adoption of radiation crosslinking processes is likely to increase, further enhancing the appeal of crosslinked materials. The ability to recycle crosslinked materials is also being explored, with research focused on developing methods to reclaim and reuse these materials in new applications.
The future of radiation crosslinking may also involve integration with other advanced technologies, such as additive manufacturing and nanotechnology. Combining radiation crosslinking with 3D printing could lead to the development of new materials with tailored properties for specific applications. Similarly, incorporating nanomaterials into crosslinked polymers could enhance their performance characteristics, such as strength, conductivity, and thermal stability.

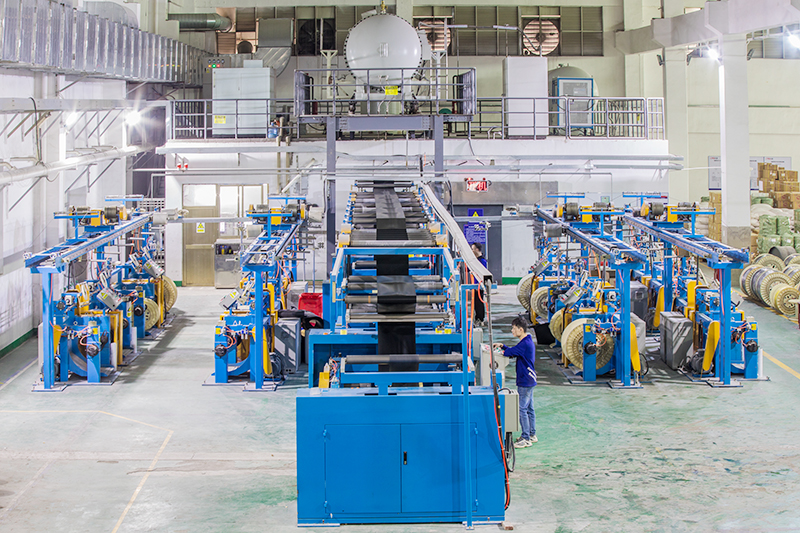

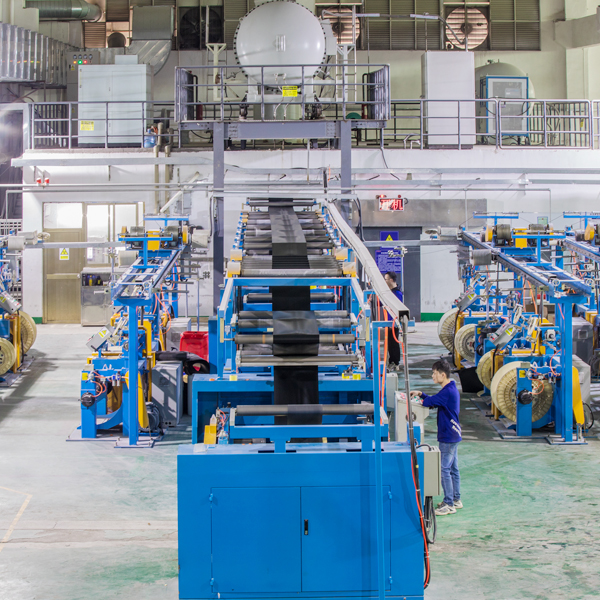

Radiation crosslinking is a vital process in modern material science, offering significant enhancements to the properties of polymers. Its applications span various industries, from heat shrink tubing to corrosion-resistant materials and medical devices. As technology advances and the demand for high-performance materials grows, radiation crosslinking will continue to play a crucial role in the development of innovative solutions. The ongoing research and development in this field promise to unlock new possibilities for crosslinked materials, contributing to a more sustainable and efficient future. CYCT has three e-beams, which can provide professional radiation cross-linking processing service for heat shrink tubes, cables, wires, and PE/PP/Polyolefin backing. If you are interested, please feel free to reach out.
1. What equipment is used for radiation crosslinking of heat shrink tubing?
- Equipment such as electron beam accelerators and gamma irradiators are commonly used for radiation crosslinking of heat shrink tubing.
2. How does radiation crosslinking improve the corrosion resistance of pipes?
- Radiation crosslinking enhances the adhesion, flexibility, and durability of polymer coatings, making them more resistant to chemicals and environmental factors.
3. What are the safety protocols for radiation crosslinking facilities?
- Safety protocols include proper shielding, monitoring radiation levels, and ensuring that workers are trained in radiation safety practices.
4. What types of radiation are used in crosslinking?
- The primary types of radiation used in crosslinking are gamma radiation, electron beam radiation, and X-ray radiation.
5. What are the advantages of using radiation crosslinking over chemical methods?
- Radiation crosslinking is cleaner, does not produce harmful byproducts, and can enhance material properties without the need for hazardous chemicals.
