Heat shrink sleeves are versatile and essential components in various industries, providing protection and insulation for wires, cables, and other materials. This article will explore the definition, applications, benefits, and installation processes of heat shrink sleeves, along with visual aids and videos to enhance understanding.
A heat shrink sleeve is a thermoplastic tube that shrinks when exposed to heat. It is typically made from materials like polyolefin, which is designed to provide insulation and protection against environmental factors such as moisture, abrasion, and chemicals. When heated, the sleeve shrinks radially, conforming tightly to the surface of the object it covers. This unique property makes heat shrink sleeves an ideal choice for a wide range of applications, from electrical insulation to mechanical protection.
The manufacturing process of heat shrink sleeves involves extruding a thick polyolefin sheet, which is then subjected to electron irradiation. This process cross-links the material, enhancing its strength and durability. The result is a product that not only shrinks effectively but also maintains its integrity under various environmental conditions.
The process of heat shrinking involves applying heat to the sleeve, causing it to shrink to a predetermined size. This is achieved through a combination of heat and the material's properties, which allow it to return to its original shape when heated. The heat shrink sleeve typically has an adhesive lining that bonds it to the surface, providing a secure and waterproof seal. This adhesive not only enhances the sleeve's grip but also acts as a barrier against moisture and contaminants, ensuring long-lasting protection.
The effectiveness of heat shrink sleeves is further enhanced by their ability to conform to irregular shapes and surfaces. This adaptability makes them suitable for a variety of applications, including those in challenging environments where traditional insulation methods may fail.
Heat shrink sleeves are used in various applications, including:
1. Electrical Insulation: They provide insulation for electrical wires and connections, preventing short circuits and electrical failures. This is particularly important in high-voltage applications where safety is paramount.

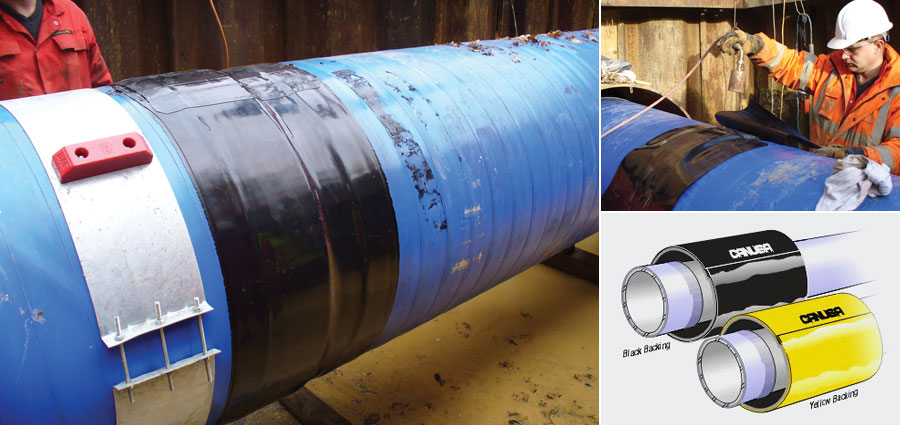

2. Corrosion Protection: Used in pipelines and other metal structures to protect against corrosion, especially at joints and welds. The adhesive lining of the sleeves creates a barrier that prevents moisture from reaching the metal surface, significantly extending the lifespan of the infrastructure.
3. Cable Management: Helps organize and bundle cables, making installations neater and more manageable. This is especially useful in complex electrical systems where multiple wires need to be routed together.
4. Mechanical Protection: Shields components from physical damage, such as abrasion and impact. This is crucial in environments where equipment is subject to wear and tear, ensuring that the underlying materials remain intact.

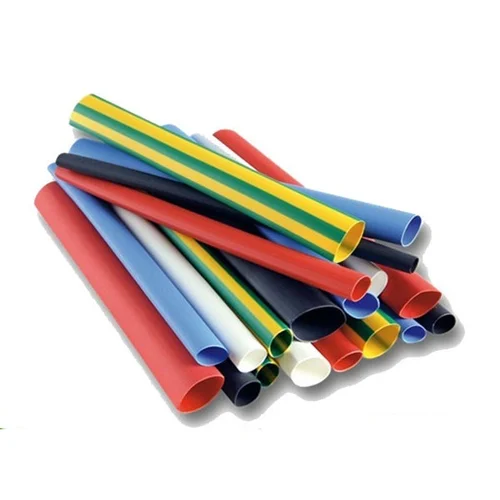

5. Identification: Available in various colors, heat shrink sleeves can be used to color-code wires and cables for easy identification. This feature is particularly beneficial in large installations where quick identification of wires can save time and reduce errors.
Heat shrink sleeves are designed to withstand harsh environmental conditions, making them ideal for outdoor and industrial applications. Their resistance to UV radiation, chemicals, and extreme temperatures ensures that they maintain their protective qualities over time.
The adhesive lining provides a waterproof seal, protecting the underlying materials from moisture and corrosion. This feature is essential in applications where exposure to water or humidity is a concern, such as in marine environments or outdoor installations.
Installation is straightforward; simply slide the sleeve over the component and apply heat. This simplicity reduces installation time and labor costs. Additionally, the ability to quickly and easily apply heat shrink sleeves makes them a preferred choice for both professional electricians and DIY enthusiasts.
Available in various sizes, colors, and materials, heat shrink sleeves can be tailored to meet specific application needs. This versatility allows for their use in a wide range of industries, including automotive, aerospace, telecommunications, and construction.
Heat shrink sleeves are a cost-effective solution for protecting and insulating wires and cables compared to other methods like taping or molding. Their long-lasting nature means that they can reduce the need for frequent replacements, further enhancing their value.
- Heat gun or lighter
- Scissors or wire cutters
- Clean cloth
1. Prepare the Surface: Ensure the surface is clean and free from dust or grease. This step is crucial for achieving a strong bond between the sleeve and the surface.
2. Cut the Sleeve: Measure and cut the heat shrink sleeve to the desired length, ensuring it covers the area adequately. It's important to choose a sleeve that is slightly longer than the area to be covered to ensure complete protection.
3. Position the Sleeve: Slide the sleeve over the component or joint that needs protection. Make sure it is centered and aligned properly to avoid any gaps.
4. Apply Heat: Use a heat gun or lighter to evenly apply heat to the sleeve. Move the heat source around to avoid overheating any one area. This ensures that the sleeve shrinks uniformly and adheres properly.
5. Cool Down: Allow the sleeve to cool and set, ensuring a tight fit. Once cooled, the sleeve will maintain its shape and provide a secure seal.
Heat shrink sleeves are typically made from polyolefin, but they can also be made from other materials like PVC and fluoropolymers, depending on the application. Each material offers different properties, such as flexibility, temperature resistance, and chemical compatibility.
No, heat shrink sleeves are designed for single use. Once they have been heated and shrunk, they cannot return to their original size. This characteristic ensures that they provide a secure and permanent fit for the duration of their use.
The shrink ratio refers to how much the sleeve will shrink when heated. Common ratios are 2:1 and 3:1, meaning the sleeve will shrink to half or one-third of its original diameter. Selecting the appropriate shrink ratio is crucial for ensuring a proper fit.
Yes, when properly installed, heat shrink sleeves provide a waterproof seal, protecting the underlying materials from moisture. This feature is particularly important in applications where exposure to water or humidity is a concern.
Heat shrink sleeves can be purchased at hardware stores, electrical supply shops, and online retailers. Many suppliers offer a wide range of sizes, colors, and materials to suit various applications.
Heat shrink sleeves are an essential tool in various industries, providing protection, insulation, and organization for wires and cables. Their ease of use, durability, and versatility make them a preferred choice for many applications. Understanding how to use and install heat shrink sleeves can significantly enhance the longevity and reliability of electrical systems.
