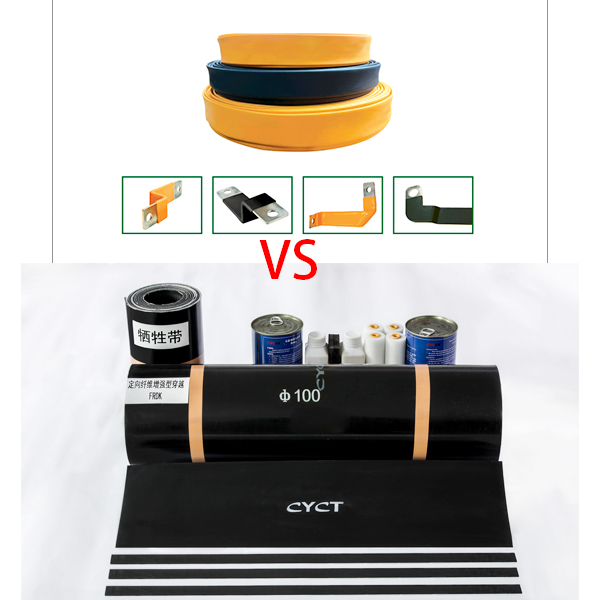

Heat shrink and heat shrinkable sleeves are terms often used interchangeably in various industries, particularly in electrical and construction applications. However, they refer to different products with distinct characteristics and uses. This article will explore the differences between heat shrink tubing and heat shrinkable sleeves, focusing on their materials, applications, and benefits.
Heat shrink tubing is a type of plastic tube that shrinks in diameter when heat is applied. It is primarily used to insulate electrical wires and connections, providing protection against moisture, dust, and mechanical abrasion. The tubing is made from materials such as polyolefin, PVC, PET, or fluoropolymer, which are designed to withstand high temperatures and provide excellent electrical insulation.
Heat shrink tubing is widely used in various applications, including:
- Electrical Insulation: It is commonly used to insulate electrical connections, ensuring that wires do not short circuit or come into contact with each other.
- Protection Against Environmental Factors: Heat shrink tubing protects wires from moisture, dust, and chemicals, making it ideal for outdoor and industrial applications.
- Bundling Wires: It can be used to bundle multiple wires together, providing a neat and organized appearance.
- Battery and capacitor Protection: Similar to heat shrink tubing, they can also be used to insulate batteries and capacitors, particularly in lithium-ion cells, sodium-ion cells, aluminum electrolytic capacitors, and ultracapacitors, like PET heat shrink tubes.
- Mechanical Protection: The tubing provides a layer of protection against abrasion and impact, extending the life of the wires.
1. Durability: Heat shrink tubing is resistant to wear and tear, making it suitable for harsh environments.
2. Waterproofing: When properly applied, it creates a waterproof seal that protects electrical connections from moisture.
3. Versatility: Available in various sizes and colors, heat shrink tubing can be used in a wide range of applications.
4. Ease of Use: It is easy to apply; simply slide it over the wire and apply heat to shrink it into place.
Heat shrink tubing comes in various types, each designed for specific applications. Some common types include:
- Single Wall Tubing: This is the most basic type, providing insulation and protection without any adhesive lining. It is suitable for general applications where moisture resistance is not critical.
- Dual Wall Tubing: This type features an inner adhesive layer that melts when heated, providing a waterproof seal. It is ideal for applications where moisture protection is essential.
- Marine Grade Tubing: Designed for use in marine environments, this tubing is made from materials that resist saltwater and UV exposure, ensuring long-lasting performance in harsh conditions.
- High-Temperature Tubing: This type can withstand higher temperatures than standard tubing, making it suitable for applications near heat sources or in high-temperature environments.
Heat shrinkable sleeves are similar to heat shrink tubing but are specifically designed for applications such as pipeline protection and corrosion resistance. These sleeves are typically made from a thicker, cross-linked polyolefin, PE, or PP material that shrinks when heated, forming a tight seal around the surface they cover.
Heat shrinkable sleeves are primarily used in the oil and gas industry, as well as in other applications where corrosion protection is critical. Their applications include:
- Pipeline Protection: They are used to protect welded joints and cutbacks on pipelines, preventing corrosion and extending the life of the pipeline.
- Mechanical Protection: They provide a robust barrier against physical damage and environmental factors.
1. Corrosion Resistance: Heat shrinkable sleeves are designed to provide a strong barrier against moisture and corrosive substances, making them ideal for pipelines.
2. Strong Adhesive Bond: Many heat shrinkable sleeves come with an adhesive lining that melts and flows when heated, creating a strong bond with the surface.
3. Durability: They are built to withstand extreme conditions, including high temperatures and harsh chemicals.
4. Ease of Installation: Like heat shrink tubing, they are easy to install; simply heat them to activate the shrinking process.
Heat shrinkable sleeves also come in various types, tailored for specific applications:
- Adhesive-Lined Sleeves: These sleeves have an inner adhesive layer that melts when heated, providing a waterproof seal and enhancing the bond to the substrate, particularly in the protection of the pipeline, such as 3-layer PE heat shrinkable sleeves and 3-layer PP heat shrinkable sleeves.
- Specialty Sleeves: Designed for specific applications, these sleeves may include features such as UV resistance, chemical resistance, or enhanced mechanical strength.
- Heat Shrink Tubing: Typically made from thinner materials like polyolefin or PVC, designed primarily for electrical insulation.
- Heat Shrinkable Sleeves: Made from thicker, cross-linked materials that provide enhanced protection against corrosion and environmental factors.
- Heat Shrink Tubing: Primarily used for electrical insulation and protection of wires and connections.
- Heat Shrinkable Sleeves: Used mainly for pipeline protection and corrosion resistance, particularly in the oil and gas industry.
- Heat Shrink Tubing: Requires heat application to shrink around the wire or connection.
- Heat Shrinkable Sleeves: Also requires heat, but often involves a more complex installation process due to the need for a strong adhesive bond.
- Heat Shrink Tubing: Offers good electrical insulation and mechanical protection but may not provide the same level of corrosion resistance as sleeves.
- Heat Shrinkable Sleeves: Designed for superior corrosion resistance and durability, making them suitable for more demanding applications.
1. Preparation: Cut the tubing to the desired length, ensuring it is slightly longer than the area to be covered.
2. Placement: Slide the tubing over the wire or connection, ensuring it is positioned correctly.
3. Heating: Use a heat gun to evenly apply heat around the tubing. Move the heat source back and forth to avoid overheating any one area.
4. Cooling: Allow the tubing to cool and set in place, ensuring a tight fit.
1. Surface Preparation: Clean the surface of the pipeline or connection to remove any dirt, grease, or contaminants.
2. Cutting: Cut the sleeve to the appropriate length, ensuring it covers the area needing protection.
3. Positioning: Place the sleeve over the area to be protected, ensuring it is centered.
4. Heating: Use a heat gun to apply heat evenly around the sleeve. Ensure the adhesive lining melts and flows to create a strong bond.
5. Cooling: Allow the sleeve to cool and set, ensuring it forms a tight seal around the surface.
In summary, while heat shrink tubing and heat shrinkable sleeves may appear similar, they serve different purposes and are made from different materials. Heat shrink tubing is primarily used for electrical insulation, while heat shrinkable sleeves are designed for pipeline protection and corrosion resistance. Understanding these differences is crucial for selecting the right product for your specific application.
1. What are the different types of heat shrink tubing materials and their specific properties?
Heat shrink tubing is made from various materials, including polyolefin, PVC, and fluoropolymer, each offering different properties such as temperature resistance, flexibility, and chemical resistance.
2. How does the adhesive lining in heat shrinkable sleeves enhance corrosion protection for pipelines?
The adhesive lining melts when heated, creating a strong bond with the surface of the pipeline. This bond prevents moisture and corrosive substances from penetrating, thereby protecting the pipeline from corrosion.
3. What are the industry standards and best practices for installing heat shrinkable sleeves on pipelines?
Best practices include cleaning the surface before installation, ensuring proper alignment of the sleeve, applying heat evenly, and allowing adequate cooling time to ensure a secure bond.
4. Can heat shrink tubing be used in high-temperature applications?
Yes, high-temperature heat shrink tubing is specifically designed to withstand elevated temperatures, making it suitable for applications near heat sources.
5. Are there any limitations to using heat shrinkable sleeves?
While heat shrinkable sleeves provide excellent protection, they are typically single-use products and may not be suitable for applications requiring frequent access or adjustments.
