Capacitors are fundamental components in electronic circuits, playing crucial roles in energy storage, filtering, and signal coupling. The performance of a capacitor is significantly influenced by the insulating material, or dielectric, used between its plates. This article explores the various insulating materials utilized in capacitors, their properties, applications, and the importance of these materials in the overall functionality of capacitors. Additionally, we will discuss the role of PET heat shrink sleeves specifically for aluminum electrolytic capacitors and supercapacitors.
A capacitor is a two-terminal passive electronic component that stores electrical energy in an electric field. It consists of two conductive plates separated by an insulating material known as a dielectric. When a voltage is applied across the plates, an electric field is created, allowing the capacitor to store energy.
Capacitors operate based on the principle of electrostatics. When a voltage is applied, electrons accumulate on one plate, creating a negative charge, while the other plate loses electrons, resulting in a positive charge. The amount of charge a capacitor can store is proportional to the voltage applied and the surface area of the plates, and inversely proportional to the distance between them.
The insulating material, or dielectric, plays a crucial role in determining a capacitor's performance. The dielectric affects the capacitor's capacitance, voltage rating, and overall efficiency. Different materials have varying dielectric constants, which influence how much charge can be stored.
1. Dielectric Constant: This is a measure of a material's ability to store electrical energy in an electric field. Higher dielectric constants allow for greater capacitance in a smaller volume.
2. Breakdown Voltage: This is the maximum voltage a dielectric can withstand before it becomes conductive. A higher breakdown voltage is desirable for high-voltage applications.
3. Temperature Stability: The dielectric material should maintain its properties over a range of temperatures to ensure consistent performance.
4. Loss Tangent: This measures the energy lost as heat in the dielectric material. Lower loss tangents indicate more efficient capacitors.
Ceramic capacitors are among the most widely used types of capacitors. They utilize ceramic materials as the dielectric, which can be formulated to achieve various dielectric constants.
- High Stability: Ceramic capacitors exhibit excellent temperature and voltage stability.
- Small Size: They can be manufactured in small sizes, making them suitable for compact electronic devices.
- Low Cost: Ceramic materials are relatively inexpensive, contributing to the overall affordability of these capacitors.
Ceramic capacitors are commonly used in applications such as decoupling, filtering, and timing circuits. They are particularly favored in high-frequency applications due to their low equivalent series resistance (ESR).
Electrolytic capacitors use an electrolyte as the dielectric, which allows for a higher capacitance in a smaller volume.
- High Capacitance: They can achieve very high capacitance values, making them ideal for power supply applications.
- Compact Size: Their design allows for a significant amount of capacitance in a small package.
Electrolytic capacitors are often found in power supply circuits, audio equipment, and energy storage applications. They are particularly useful in applications requiring large capacitance values, such as smoothing out voltage fluctuations in power supplies.
Film capacitors use thin plastic films as the dielectric material. Common types of film capacitors include polyester, polypropylene, and polycarbonate.
- Low Loss: Film capacitors have low dielectric losses, making them efficient for high-frequency applications.
- Good Stability: They maintain their capacitance over a wide range of temperatures and voltages.
Film capacitors are widely used in audio equipment, power electronics, and timing circuits. They are also favored in applications where low distortion and high reliability are required, such as in audio signal processing.
Tantalum capacitors use tantalum oxide as the dielectric. They are known for their high capacitance and reliability.
- High Capacitance Density: They can achieve high capacitance values in small sizes.
- Stable Performance: Tantalum capacitors exhibit excellent stability over time.
Tantalum capacitors are commonly used in military and aerospace applications, as well as in portable electronic devices. Their reliability and performance make them suitable for critical applications where failure is not an option.
Mica capacitors use natural mica as the dielectric material. They are known for their high stability and low loss.
- High Precision: Mica capacitors offer excellent precision and stability.
- Low Loss: They have very low dielectric losses, making them suitable for high-frequency applications.
Mica capacitors are often used in RF applications, oscillators, and high-frequency circuits. Their stability and precision make them ideal for applications requiring accurate capacitance values.

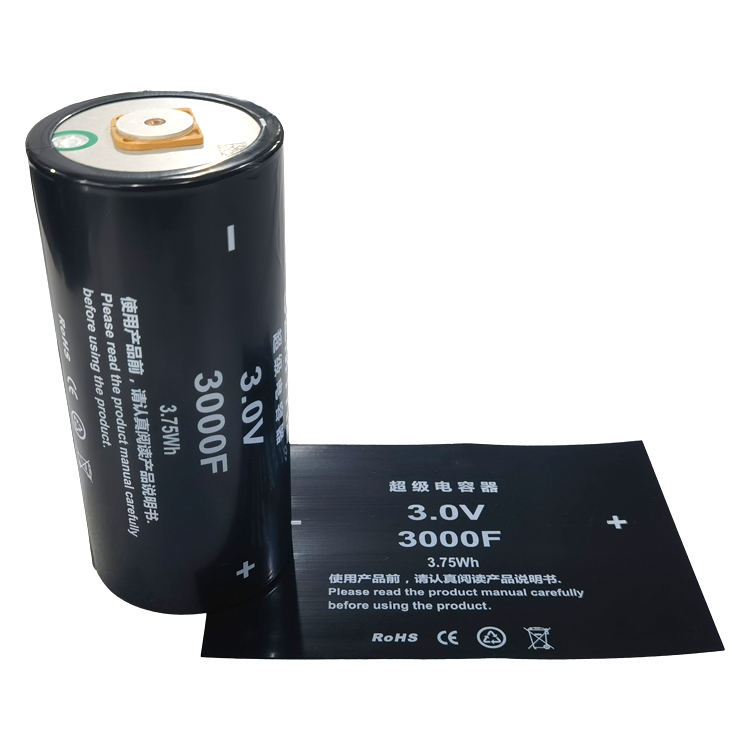

Polyethylene Terephthalate (PET) heat shrink sleeves are protective coverings made from a type of plastic that shrinks when heat is applied. They are commonly used in various applications, including electrical insulation, bundling wires, and providing mechanical protection. In the context of aluminum electrolytic capacitors and supercapacitors, PET heat shrink sleeves serve several important functions.
- Chemical Resistance: PET is resistant to many chemicals, making it suitable for harsh environments. This property is particularly important for capacitors that may be exposed to corrosive substances.
- Electrical Insulation: PET provides excellent electrical insulation, making it ideal for use in electrical applications. This is crucial for preventing short circuits and ensuring the safe operation of capacitors.
- Durability: PET heat shrink sleeves are durable and can withstand various environmental conditions, including temperature fluctuations and mechanical stress.
1. Electrical Insulation: PET heat shrink sleeves are used to insulate electrical connections in aluminum electrolytic capacitors and supercapacitors. This insulation helps prevent short circuits and enhances the safety of the device.
2. Mechanical Protection: They protect sensitive components from abrasion and environmental damage. This is crucial in applications where capacitors are exposed to harsh conditions, such as automotive or industrial environments.
3. Wire Bundling: PET sleeves can bundle multiple wires together, providing organization and protection. This is especially useful in applications where space is limited, such as in compact electronic devices.
4. Labeling: PET heat shrink sleeves can also be printed on, allowing for easy labeling of wires and components. This enhances organization and identification in complex systems.
5. Thermal Management: In high-performance applications, PET heat shrink sleeves can help manage heat dissipation. By providing a thermal barrier, they can help maintain optimal operating temperatures for capacitors.
Recent advancements in dielectric materials have led to the development of new capacitor technologies. Researchers are exploring materials such as graphene and nanocomposites to enhance the performance of capacitors. These materials promise higher capacitance values, improved thermal stability, and reduced size.
As the demand for electronic devices increases, so does the need for sustainable capacitor technologies. Manufacturers are focusing on developing eco-friendly dielectric materials that minimize environmental impact. This includes using biodegradable materials and reducing the carbon footprint of production processes.
The integration of smart technologies into capacitors is another emerging trend. Smart capacitors can monitor their performance in real-time, providing data on temperature, voltage, and capacitance. This information can be used to optimize circuit performance and prevent failures.
The choice of insulating material in capacitors is crucial for their performance and reliability. Each type of dielectric material offers unique advantages and is suited for specific applications. Understanding these materials helps engineers and designers select the right capacitors for their projects, ensuring optimal performance in electronic circuits.
As technology continues to evolve, advancements in capacitor design and materials will play a significant role in the development of more efficient and sustainable electronic devices. The exploration of new dielectric materials and the integration of smart technologies will further enhance the capabilities of capacitors, making them indispensable in modern electronics.
