Potting compounds are essential materials in the electronics industry, providing protection and durability to sensitive components. This article will guide you through the process of using potting compounds, including preparation, application, and curing. We will also explore the different types of potting compounds available, their benefits, and common applications.
Potting compound is a type of material used to encapsulate electronic components, providing a protective barrier against environmental factors such as moisture, dust, and mechanical stress. The potting process involves filling a mold with a liquid resin that hardens to form a solid structure around the components. This encapsulation not only protects the components from physical damage but also enhances their electrical insulation properties, making them more reliable in various applications. Potting compounds are commonly used in the manufacturing of circuit boards, sensors, and other electronic devices, ensuring their longevity and performance in challenging environments.
There are several types of potting compounds, each with unique properties suited for different applications:
1. Epoxy Compounds: Known for their durability and resistance to chemicals, epoxy compounds are ideal for applications requiring strong adhesion and mechanical strength. They cure to form a hard, inflexible structure that can withstand harsh conditions, making them suitable for outdoor and industrial applications.
2. Silicone Compounds: These compounds offer flexibility and excellent thermal stability, making them suitable for high-temperature environments. Silicone potting compounds can absorb vibrations and thermal expansion, which is crucial for applications in automotive and aerospace industries where components are subjected to extreme conditions.
3. Polyurethane Compounds: Known for their elasticity and resistance to moisture, polyurethane compounds are often used in applications where vibration dampening is essential. They provide a softer encapsulation that can absorb shocks and impacts, making them ideal for consumer electronics and portable devices.
Before applying potting compound, proper preparation is crucial to ensure optimal adhesion and performance. Follow these steps:
1. Clean the Components: Remove any dust, grease, or contaminants from the surfaces of the components. Use isopropyl alcohol or a suitable degreasing solvent. This step is vital because any residue can prevent the potting compound from adhering properly, leading to potential failures in the encapsulated components.
2. Dry the Components: Ensure that the components are completely dry before potting. Moisture can interfere with the curing process and lead to defects. It is advisable to use a heat gun or an oven set to a low temperature to expedite the drying process if necessary.
3. Set Up the Work Area: Prepare a clean, well-ventilated workspace. Use protective gear such as gloves and goggles to avoid skin contact with the potting compound. A clean environment minimizes the risk of contamination, which can compromise the integrity of the potting process.

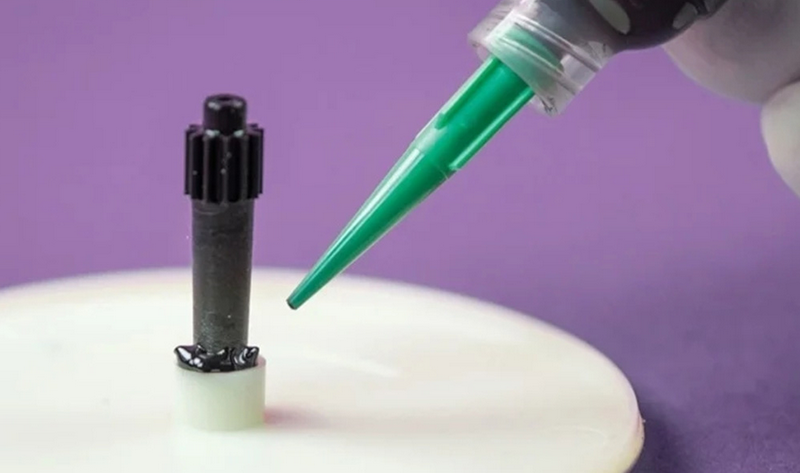

The application of potting compound involves several key steps:
1. Mix the Potting Compound: Follow the manufacturer's instructions for mixing the components. Typically, this involves combining a resin and a hardener in the correct ratio. It is essential to mix thoroughly to ensure a uniform consistency, as improper mixing can lead to incomplete curing and reduced performance.
2. De-air the Mixture: To remove air bubbles, let the mixture sit for a few minutes or use a vacuum chamber. Air bubbles can create weak spots in the cured potting compound, compromising its protective qualities.
3. Pour the Mixture: Slowly pour the potting compound over the components, ensuring even coverage. Avoid creating air pockets by pouring gently. It is often helpful to start from one side and allow the compound to flow over the components, ensuring that all areas are covered without trapping air.
After application, the potting compound needs to cure properly to achieve its full strength and protective properties:
1. Allow to Cure: Follow the manufacturer's recommended curing time. This can vary from a few hours to several days, depending on the type of compound used. Curing is a critical step, as it transforms the liquid resin into a solid, protective barrier.
2. Check for Defects: After curing, inspect the potting for any defects such as air bubbles or incomplete coverage. If defects are found, they may need to be repaired. This can involve removing the defective potting and reapplying a new layer, ensuring that the components are adequately protected.
Using potting compounds offers several advantages:
- Protection Against Environmental Factors: Potting compounds shield electronic components from moisture, dust, and chemicals. This protection is crucial for devices used in outdoor or industrial settings where exposure to harsh conditions is common.
- Enhanced Durability: They provide mechanical support, reducing the risk of damage from vibrations and shocks. This durability extends the lifespan of electronic devices, making them more reliable over time.
- Thermal Management: Certain potting compounds help dissipate heat, preventing overheating in electronic devices. This thermal management is essential for maintaining optimal performance, especially in high-power applications.
Potting compounds are widely used in various industries, including:
- Consumer Electronics: Protecting circuit boards in smartphones, tablets, and other devices. The compact nature of these devices makes potting essential for ensuring their reliability and performance.
- Automotive: Encapsulating sensors and electronic control units to withstand harsh conditions. Potting compounds help protect these critical components from moisture and vibration, which are prevalent in automotive environments.
- Aerospace: Ensuring reliability in critical electronic systems exposed to extreme environments. Potting compounds are used to protect avionics and other sensitive equipment from the rigors of flight.
1. What is the best potting compound for high-temperature applications?
- Silicone compounds are often recommended for high-temperature environments due to their thermal stability. They can withstand extreme heat without losing their protective properties.
2. Can potting compounds be removed once cured?
- Generally, potting compounds are designed to be permanent. Removing them can be challenging and may damage the components. In some cases, specialized solvents may be used, but this can be risky.
3. How do I choose the right potting compound?
- Consider factors such as the operating environment, required flexibility, and thermal conductivity when selecting a potting compound. Each application may have specific requirements that dictate the best choice.
4. What safety precautions should I take when using potting compounds?
- Always wear protective gear, work in a well-ventilated area, and follow the manufacturer's safety guidelines. Proper handling is crucial to avoid health risks associated with chemical exposure.
5. How long does it take for potting compounds to cure?
- Curing times vary by product; refer to the manufacturer's instructions for specific curing times. Some compounds may cure quickly, while others may require extended periods for optimal performance.
In conclusion, potting compounds play a vital role in protecting electronic components from environmental hazards and mechanical stress. By following the proper preparation, application, and curing processes, you can ensure the longevity and reliability of your electronic devices. The careful selection and application of potting compounds not only enhance the performance of electronic systems but also contribute to their overall safety and durability.
