Potting adhesive, often referred to as a potting compound, is a specialized material used to encapsulate, seal, and protect electronic components and assemblies. The process of potting involves filling a housing or mold containing sensitive parts with a liquid adhesive, which then cures to form a solid, protective barrier. This barrier shields the components from environmental hazards such as moisture, dust, chemicals, and mechanical stress.
Potting is widely used in electronics, automotive, aerospace, and industrial applications, where reliability and longevity of components are critical. The choice of potting adhesive depends on the specific requirements of the application, including thermal conductivity, electrical insulation, flexibility, and resistance to environmental factors.
The primary purpose of potting is to protect sensitive components from external threats. Moisture, dust, chemicals, and temperature fluctuations can all compromise the performance and lifespan of electronic devices. Potting adhesives create a robust barrier that prevents these elements from reaching the internal components.
Potting compounds provide mechanical support, reducing the risk of damage from shock, vibration, or impact. This is especially important in automotive and industrial environments, where equipment is subject to constant movement and stress.
Many potting adhesives offer excellent electrical insulation properties, preventing short circuits and electrical failures. This is crucial for high-voltage or high-frequency applications.
Potting can also serve as a deterrent against tampering and reverse engineering. By encapsulating the circuitry in an opaque or hard-to-remove material, manufacturers can protect their intellectual property and prevent unauthorized access.

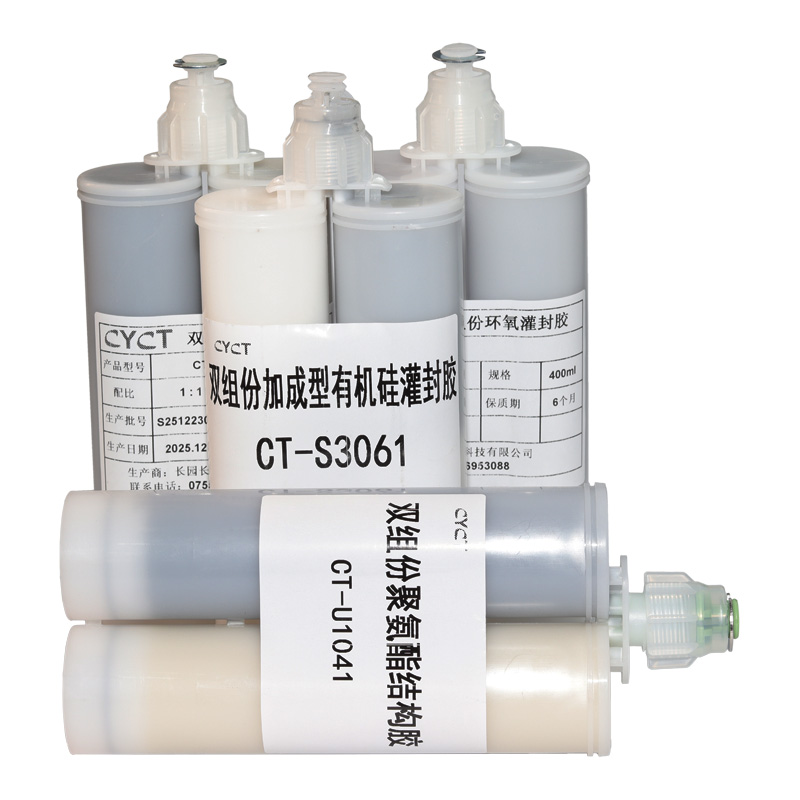

Potting adhesives are available in several formulations, each with unique characteristics suited to different applications. The three most common types are epoxy resin, silicone, and polyurethane.
Epoxy resins are among the most widely used potting adhesives due to their excellent mechanical strength, chemical resistance, and electrical insulation. They are typically available as two-component systems that cure at room temperature or with heat.
Key Features:
- High hardness and tensile strength
- Excellent adhesion to various substrates
- Resistance to moisture, chemicals, and temperature extremes
- Low curing shrinkage
Typical Applications:
- Power supplies
- Transformers
- Industrial sensors
- Outdoor electronics
Limitations:
- Brittle after curing, which may not be suitable for applications requiring flexibility
- Difficult to remove for repairs
Silicone potting adhesives are valued for their flexibility, high-temperature resistance, and excellent electrical properties. They are available in one- or two-component systems and can cure at room temperature or with heat.
Key Features:
- High flexibility and elasticity
- Excellent thermal stability (can withstand high and low temperatures)
- Good electrical insulation
- Superior moisture and chemical resistance
Typical Applications:
- LED lighting
- Automotive electronics
- Medical devices
- High-power electronic modules
Limitations:
- Higher cost compared to other types
- Lower mechanical strength than epoxy
Polyurethane potting adhesives offer a balance between flexibility and mechanical strength. They are often used when components require some movement or when operating in environments with temperature fluctuations.
Key Features:
- Good flexibility and impact resistance
- Moderate thermal and chemical resistance
- Suitable for applications requiring vibration dampening
Typical Applications:
- Automotive sensors
- Consumer electronics
- Industrial controls
Limitations:
- Lower temperature resistance compared to silicone and epoxy
- May yellow or degrade under prolonged UV exposure
When selecting a potting adhesive, several properties must be considered to ensure optimal performance:
- Viscosity: Determines how easily the adhesive flows into small spaces and around components.
- Curing Time: The time required for the adhesive to harden and reach its final properties.
- Thermal Conductivity: Important for applications where heat dissipation is necessary.
- Electrical Insulation: Prevents short circuits and electrical failures.
- Adhesion Strength: Ensures the adhesive bonds well to the substrate.
- Chemical Resistance: Protects against exposure to solvents, oils, and other chemicals.
- Flexibility: Needed for applications subject to movement or vibration.
- Color and Transparency: May be important for aesthetic or security reasons.
The potting process involves several critical steps to ensure effective protection and performance.
- Component Cleaning: All surfaces must be free of dust, oil, and contaminants to ensure proper adhesion.
- Masking: Areas that should not be potted are masked off to prevent adhesive ingress.
- Fixture Setup: Components are placed in their housings or molds, ready for potting.
- Mixing: For two-component systems, the resin and hardener are mixed in the correct ratio. Automated mixing equipment may be used for large-scale production.
- Dispensing: The mixed adhesive is poured or injected into the housing, ensuring complete coverage of all components. Care is taken to avoid air bubbles, which can compromise protection.
- Room Temperature Curing: Many potting adhesives cure at ambient temperatures, which is convenient for most applications.
- Heat Curing: Some formulations require elevated temperatures to accelerate curing or achieve optimal properties.
- Post-Cure Inspection: After curing, the potted assembly is inspected for voids, incomplete coverage, or defects.
Potting adhesives offer numerous benefits that make them indispensable in modern manufacturing:
- Enhanced Protection: Shields components from moisture, dust, chemicals, and mechanical stress.
- Improved Reliability: Reduces the risk of failure due to environmental factors.
- Electrical Insulation: Prevents short circuits and electrical breakdowns.
- Vibration Dampening: Protects against damage from shock and vibration.
- Tamper Resistance: Conceals circuitry and deters unauthorized access.
- Customization: Available in various formulations to meet specific application needs.
Despite their many advantages, potting adhesives also have some drawbacks:
- Difficult Repairs: Once cured, potting compounds are often difficult or impossible to remove without damaging the components.
- Added Weight and Bulk: Potting adds mass and volume to the assembly, which may be undesirable in weight-sensitive applications.
- Cost: High-performance potting adhesives, especially silicones, can be expensive.
- Thermal Management Challenges: Poorly chosen potting materials can trap heat, leading to overheating of components.
- Processing Complexity: Some formulations require precise mixing, dispensing, and curing conditions.
Potting adhesives are used across a wide range of industries and applications:
- Electronics: Circuit boards, sensors, power supplies, transformers, and connectors.
- Automotive: Engine control units, sensors, lighting modules, and battery packs.
- Aerospace: Avionics, sensors, and communication devices.
- Industrial Equipment: Control panels, relays, and instrumentation.
- Consumer Products: LED lighting, chargers, and wearable devices.
- Medical Devices: Diagnostic equipment, implantable devices, and monitoring systems.
Choosing the right potting adhesive involves evaluating several factors:
- Operating Environment: Temperature range, humidity, exposure to chemicals or UV light.
- Mechanical Requirements: Need for flexibility, impact resistance, or rigidity.
- Electrical Properties: Insulation, dielectric strength, and thermal conductivity.
- Processing Constraints: Curing time, mixing requirements, and compatibility with automated equipment.
- Cost Considerations: Balancing performance with budget constraints.
- Regulatory Compliance: Meeting industry standards for safety and performance.
Potting involves filling a housing or mold with adhesive to protect components, while encapsulation typically refers to coating or covering components without a housing. Both methods provide protection, but potting offers more robust mechanical support.
Most potting adhesives are designed to be permanent. Some softer formulations, such as certain silicones, may be removed with care, but in general, repairs are difficult once potting is complete.
Consider the operating environment, required mechanical and electrical properties, processing constraints, and cost. Consulting with adhesive manufacturers or technical experts can help identify the best solution.
Many potting adhesives are formulated to meet medical-grade standards, but it is essential to verify biocompatibility and regulatory compliance for each specific application.
Common causes include improper surface preparation, incorrect mixing ratios, air bubbles, incomplete coverage, and using the wrong adhesive for the application environment.
Potting adhesives are specialized materials used to encapsulate and protect sensitive electronic and industrial components from environmental hazards, mechanical stress, and electrical failures. Available in epoxy, silicone, and polyurethane formulations, they offer a range of properties to suit diverse applications. While potting provides enhanced protection and reliability, it also presents challenges such as difficult repairs and added weight. Careful selection and application are essential for optimal performance and longevity.
