Busbars are the backbone of modern electrical and energy systems. They conduct large currents, distribute power efficiently, and connect key components inside battery packs, power distribution units, inverters, switchgear, and capacitor banks. As systems grow more compact, powerful, and safety-critical, simple bare copper or aluminum bars are no longer sufficient. They must be insulated, protected, and engineered to work reliably under thermal, electrical, mechanical, and environmental stress.
This is where the busbar sleeve becomes essential. A busbar sleeve is a specially designed insulating covering applied over a busbar to provide electrical insulation, environmental protection, thermal management support, and safety enhancement. Although it may appear simple, a busbar sleeve plays a decisive role in system reliability, assembly efficiency, regulatory compliance, and long-term performance.
This article provides a comprehensive explanation of what a busbar sleeve is, how it works, what materials are used, how it is applied, and why it is critical in industries such as electric vehicles, energy storage, power electronics, and industrial power distribution.
A busbar sleeve is an insulating sheath or covering installed over a conductive busbar. It may be produced in the form of heat-shrink tubing, extruded rigid insulation, flexible polymer sleeves, laminated composite layers, or textile-reinforced coatings. Its primary role is to electrically isolate the busbar from surrounding conductive components and from human contact.
Beyond simple insulation, a modern busbar sleeve often serves multiple functions:
* Preventing short circuits
* Improving dielectric strength
* Protecting against corrosion and contamination
* Enhancing mechanical durability
* Supporting thermal management strategies
* Improving system appearance and identification
In high-power applications, the sleeve becomes a functional engineering layer rather than a cosmetic covering.
Busbars typically operate at high current and, in many systems, high voltage. Without insulation, accidental contact between busbars or between a busbar and a grounded structure can result in arcing, short circuits, equipment damage, or severe injury. A busbar sleeve provides a controlled dielectric barrier that reduces the risk of electrical failure and human exposure.
Modern electrical systems are dense and complex. Busbars often run close to enclosures, cooling plates, battery cells, and electronic boards. Sleeving ensures stable insulation distances and prevents unpredictable contact caused by vibration, thermal expansion, or assembly tolerances.
Many international safety standards require insulated conductors in accessible or compact assemblies. Busbar sleeves help manufacturers meet insulation, creepage, clearance, and flame-retardancy requirements demanded by electrical, automotive, and energy-storage regulations.
Busbar sleeves are not a single standardized product. They exist in multiple structural forms designed to match specific performance needs.

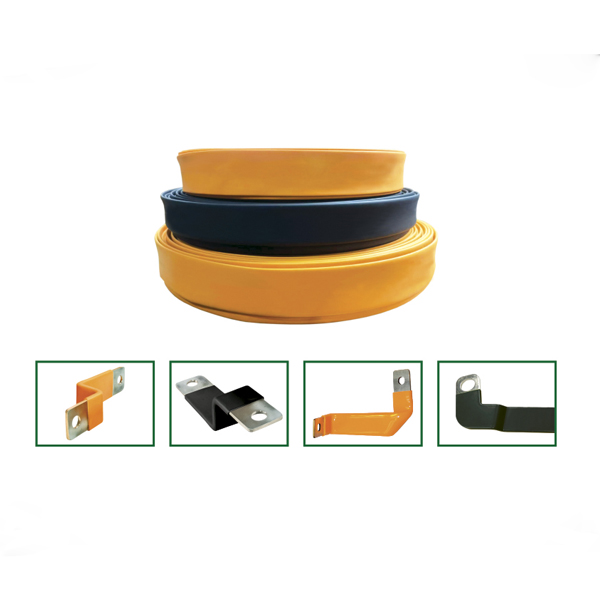

Heat-shrink sleeves are widely used due to their adaptability. They expand to fit over the busbar and then shrink tightly when heated, forming a conformal insulation layer.
Key characteristics include:
* Excellent surface conformity
* Wide size range
* Good dielectric performance
* Relatively simple installation
* Suitability for complex shapes and joints
They are common in battery packs, power electronics, and distribution assemblies.
These are pre-formed insulating profiles, often made from PVC, polyolefin, or engineering plastics. The busbar is inserted into the sleeve mechanically.
They offer:
* Consistent wall thickness
* High abrasion resistance
* Stable geometry
* Efficient high-volume installation
They are frequently used in switchgear cabinets and industrial power equipment.
Some busbar sleeves are formed from laminated films, fiberglass-reinforced materials, or multilayer composites. These are chosen when higher temperature resistance, flame retardancy, or mechanical reinforcement is required.
They are typical in:
* High-temperature power electronics
* Heavy industrial environments
* Railway and aerospace systems
In advanced systems, the sleeve may be created by coating or over-molding insulation directly onto the busbar. This approach integrates insulation into the conductor itself, producing a rigid, precisely shaped insulated busbar.
The performance of a busbar sleeve depends strongly on material choice.
Polyolefin is widely used in heat-shrink busbar sleeves. It offers balanced electrical insulation, flexibility, flame retardancy options, and cost efficiency. It is suitable for many low-to-medium temperature applications.
Polyester sleeves offer improved temperature resistance and mechanical strength. They are often selected for battery and power electronics environments where dimensional stability is important.
PVC is frequently used for rigid extruded sleeves. It provides good electrical insulation, chemical resistance, and ease of processing. However, it has limited high-temperature capability and specific fire-behavior considerations.
Silicone sleeves are chosen for high-temperature, high-flexibility, or outdoor environments. They maintain elasticity over wide temperature ranges and resist ozone, UV exposure, and aging.
These materials are used when extremely high thermal resistance, flame retardancy, and mechanical durability are required, such as in industrial or transportation power systems.
The primary function of a busbar sleeve is to increase dielectric strength. By adding a controlled insulating layer, it raises breakdown voltage, prevents surface tracking, and stabilizes creepage distances.
Busbar sleeves shield conductors from moisture, dust, chemicals, salt spray, and industrial pollutants. This prevents corrosion and surface oxidation, which can increase resistance and generate heat.
Sleeves protect busbars from abrasion, accidental tool contact, and vibration-induced wear. In mobile systems such as electric vehicles, this function is critical to long-term durability.
Specialized busbar sleeves may be flame retardant, self-extinguishing, or thermally stable. Some designs also act as thermal buffers, controlling heat transfer between busbars and adjacent components.
Color-coded sleeves allow quick visual identification of polarity, phase, or voltage class. This reduces wiring errors and speeds up maintenance and assembly.
In electric vehicles, busbars connect battery cells, modules, and power electronics. Sleeves provide insulation, prevent accidental short circuits, and support compact, high-density layouts. They must tolerate vibration, temperature cycling, and chemical exposure.
Large stationary battery systems operate at high voltage and are installed in confined enclosures. Busbar sleeves ensure safe insulation, reduce the risk of arc faults, and contribute to long-term operational reliability.
Inverters, converters, and charging systems rely on busbars for efficient current flow. Sleeves help control electric field distribution, protect against partial discharge, and improve system robustness.
Switchgear, motor drives, and industrial cabinets use rigid busbars to distribute electricity. Sleeves protect operators, reduce contamination, and support compliance with electrical safety standards.
Solar inverters, wind turbines, and grid-interface equipment require insulated busbars that can operate in outdoor or semi-outdoor environments. Busbar sleeves contribute to moisture resistance and environmental durability.
Selecting a busbar sleeve involves evaluating:
* Operating voltage
* Maximum temperature
* Chemical exposure
* Mechanical stress
* Flame-retardancy requirements
* Expected service life
An unsuitable sleeve can compromise the entire electrical system.
Heat-shrink sleeves require controlled heating to achieve uniform shrinkage without damaging adjacent components. Rigid sleeves demand precise dimensional matching and often involve snap-on or slide-on installation.
Inspection focuses on wall thickness, surface uniformity, adhesion, absence of air pockets, and terminal exposure. Even minor defects can lead to dielectric failure under high stress.
Busbar sleeves offer numerous benefits that extend beyond basic insulation:
* Improved system safety
* Enhanced dielectric margins
* Reduced risk of arc faults
* Increased corrosion resistance
* Better mechanical durability
* Visual organization and polarity identification
* Support for compact and modular designs
They enable modern high-density power systems to function reliably and safely.
Despite their importance, busbar sleeves also introduce design considerations:
* They add thickness, affecting spacing and layout.
* They may reduce direct heat dissipation from the busbar.
* Improper installation can trap air or create thin spots.
* Material aging must be evaluated over the system lifespan.
Therefore, busbar sleeves should always be integrated into system design, not added as an afterthought.
Sleeves provide controlled thickness and mechanical protection, while coatings offer thinner insulation and better surface conformity. Sleeves are easier to inspect and replace, whereas coatings are more integrated.
Over-molded insulation creates robust integrated structures, but it increases tooling cost and reduces flexibility. Sleeves offer a balance between performance and adaptability.
Many advanced systems use both sleeves and structural insulation components. Sleeves handle local insulation, while housings and barriers provide system-level protection.
The evolution of electrification is driving innovation in busbar sleeves. Future developments focus on:
* Higher temperature polymers
* Improved flame-retardant systems
* Low-smoke and halogen-free materials
* Integrated thermal management layers
* Smart sleeves with sensing or diagnostic functions
* Sustainable and recyclable insulation materials
As systems demand higher power density and longer life, the busbar sleeve will continue to evolve from a passive insulator into a multifunctional engineering element.
A: The main purpose is to electrically insulate the busbar, preventing short circuits, improving safety, and protecting both equipment and personnel.
A: No. They are used in both low-voltage and high-voltage systems whenever insulation, protection, or identification is required.
A: Yes, if the correct material is selected. Silicone, polyester, and fiberglass-reinforced sleeves are commonly used in high-temperature environments.
A: They slightly influence thermal dissipation and electric field distribution, which is why sleeve design must be considered during system engineering.
A: Many are. Heat-shrink and rigid sleeves can often be removed and replaced, making maintenance and upgrades easier.
A: No. A busbar sleeve is one element of a broader insulation and safety strategy that includes spacing, enclosures, cooling systems, and monitoring devices.
