In modern electronics, heat is one of the most critical factors affecting performance, reliability, and service life. As devices become smaller, more powerful, and more integrated, the challenge of thermal management continues to grow. From power supplies and inverters to EV battery packs, LED drivers, industrial control modules, telecom systems, and AI server power units, excessive heat can quickly lead to efficiency loss, component aging, electrical failure, and safety risks.
Among the many thermal management solutions available today, thermally conductive potting compounds stand out as one of the most effective ways to combine heat dissipation, electrical insulation, environmental sealing, and mechanical protection into a single material system. By filling the space around heat-generating components with specially formulated epoxy, silicone, or polyurethane compounds loaded with ceramic thermal fillers, manufacturers can create efficient heat transfer pathways while protecting sensitive electronics from moisture, dust, shock, and vibration.
This article explains in detail how thermally conductive potting compounds improve heat dissipation, what material properties matter most, and why they are increasingly essential in high-power electronic applications.
Heat is an unavoidable byproduct of electrical energy conversion and signal processing.
Common heat-generating components include:
* MOSFETs
* IGBTs
* SiC and GaN devices
* Transformers
* Inductors
* Rectifier bridges
* Capacitors
* CPUs and power ICs
* Current sensors
* High-current connectors
As switching frequencies rise and power density increases, these components generate concentrated heat in smaller physical spaces.
Insufficient heat dissipation may cause:
* Reduced power efficiency
* Thermal drift
* Lower output stability
* Semiconductor junction damage
* Capacitor dry-out
* Solder fatigue
* PCB warpage
* Thermal runaway
* Fire hazards
Effective heat transfer is therefore essential for both performance and safety.
Thermally conductive potting compounds are encapsulation materials engineered to transfer heat away from critical components while maintaining electrical insulation.
These compounds are typically based on:
* Epoxy
* Silicone
* Polyurethane
To improve heat conduction, they are filled with thermally conductive ceramic particles such as:
* Alumina
* Boron nitride
* Aluminum nitride
* Magnesium oxide
* Silica blends
The result is a material that can efficiently bridge heat from components to the enclosure or heat sink.
Unlike simple thermal pads or gap fillers, potting compounds provide:
* Full encapsulation
* Heat transfer
* Waterproof sealing
* Dust resistance
* Flame retardancy
* Vibration damping
* High dielectric strength
This makes them highly suitable for harsh environments.
The main reason these materials improve heat dissipation is their ability to eliminate thermal barriers.
Air is a poor thermal conductor. In unpotted assemblies, air gaps around components trap heat and create hot spots.
Potting compounds replace these air pockets with a conductive medium, dramatically reducing thermal resistance.
Once cured, the compound forms a direct heat path:
Heat Source → Potting Material → Housing / Heat Sink → Ambient Environment
This continuous path allows heat to spread more evenly across the system.
Hot spots are common around:
* MOSFET packages
* Transformer cores
* Power resistors
* Inductor windings
* High-current terminals
Potting compounds distribute heat over a larger area, reducing peak temperature concentration.
Not all thermally conductive potting compounds perform the same.
Thermal conductivity is usually measured in W/m·K.
Typical ranges include:
* 0.8–1.5 W/m·K for standard industrial modules
* 2.0–3.0 W/m·K for power supplies and inverters
* 5.0 W/m·K+ for EV batteries and AI server power units
Higher conductivity improves heat flow but may increase viscosity and cost.
Besides conductivity, total thermal resistance depends on:
* Potting thickness
* Contact quality
* Void elimination
* Filler loading
* Surface wetting
Strong adhesion to PCB surfaces, components, and metal housings reduces interfacial resistance.
The material must maintain performance during:
* Long-term high temperature exposure
* Thermal cycling
* Power surges
* Overload events
Epoxy systems provide:
* High mechanical strength
* Excellent adhesion
* Strong chemical resistance
* Good thermal conductivity
* Permanent structural support
They are widely used in industrial power electronics.
Silicone systems provide:
* Superior flexibility
* Excellent thermal cycling resistance
* Outdoor UV stability
* Low stress on fragile components
* Long-term high-temperature durability
They are preferred for LED drivers, telecom modules, and EV charging systems.
Polyurethane offers:
* Balanced flexibility
* Good moisture resistance
* Moderate thermal conductivity
* Low-temperature stability
This is suitable for industrial and consumer electronics.

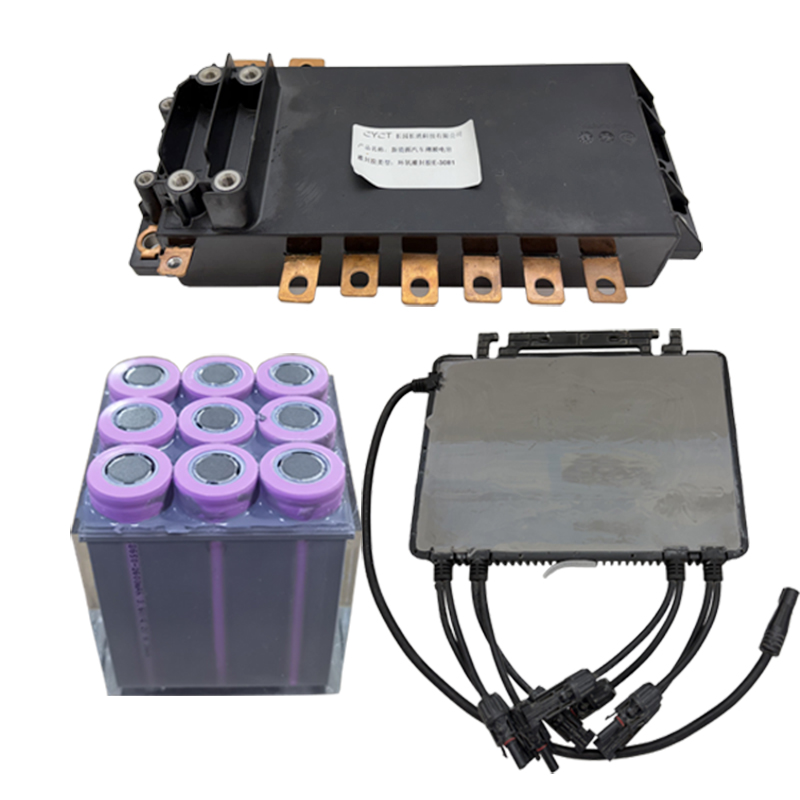

Power supplies contain switching devices, transformers, and capacitors that require stable thermal control.
Battery management systems and onboard chargers generate substantial heat during fast charge and discharge cycles.
Outdoor solar systems face both internal heat and solar radiation.
Heat is one of the main causes of LED lumen degradation and driver failure.
IGBTs and SiC modules in motor control systems require effective heat spreading.
High-density server PSUs increasingly rely on thermally conductive encapsulation to maintain efficiency.
Heat management is only part of the value.
Potting prevents humidity-driven corrosion and leakage current.
Industrial contamination is blocked from reaching the circuit.
Heavy transformers and inductors are stabilized.
High dielectric strength improves safety compliance.
UL94 V-0 systems reduce fire propagation risk.
Excessive thickness may increase thermal path length. Balance is important.
Voids trap heat and reduce effective conductivity.
Vacuum potting or degassing is recommended.
Higher ceramic loading improves heat transfer but may reduce flowability.
The best thermal performance occurs when the compound directly contacts aluminum housings or external heat sinks.
Advanced boron nitride and aluminum nitride fillers are pushing conductivity beyond 5 W/m·K.
Wide-bandgap semiconductors need stress-sensitive encapsulation.
Thermal potting systems are being optimized for lower density.
Low-VOC and halogen-free materials are increasingly preferred.
Thermally conductive potting compounds significantly improve heat dissipation by replacing insulating air gaps, creating direct thermal pathways, reducing hot spots, and stabilizing high-power components. In modern electronics, where compact size and high power density continue to push thermal limits, these materials provide an essential solution that combines cooling, insulation, sealing, and structural protection.
From power supplies and solar inverters to EV batteries, AI server power units, and industrial motor drives, proper thermal potting design directly improves efficiency, reliability, safety, and service life.
For manufacturers seeking long-term thermal stability and product durability, thermally conductive potting compounds are a highly strategic material choice.
They replace air gaps with conductive material and create a direct thermal path to the housing or heat sink.
Most power electronics use 1.5–3.0 W/m·K, while EV and AI power systems may require 5.0 W/m·K or more.
Epoxy offers stronger structural strength, while silicone provides better flexibility and thermal cycling durability.
Yes. They spread heat over a wider area and lower peak component temperatures.
Yes. Most systems provide excellent sealing against moisture and dust.
Absolutely. They are widely used in battery packs, BMS modules, and onboard chargers.
