Power supply systems are the hidden backbone of modern electronics. From industrial control cabinets and telecom base stations to EV charging systems, solar inverters, medical power units, and consumer adapters, stable power conversion directly determines system safety, efficiency, and service life. As power density continues to rise, the thermal stress inside power modules, transformers, inductors, capacitors, MOSFETs, IGBTs, and PCB assemblies becomes increasingly severe. Heat accumulation, moisture ingress, dust contamination, vibration, and electrical insulation failure are among the most common causes of premature power supply failure.

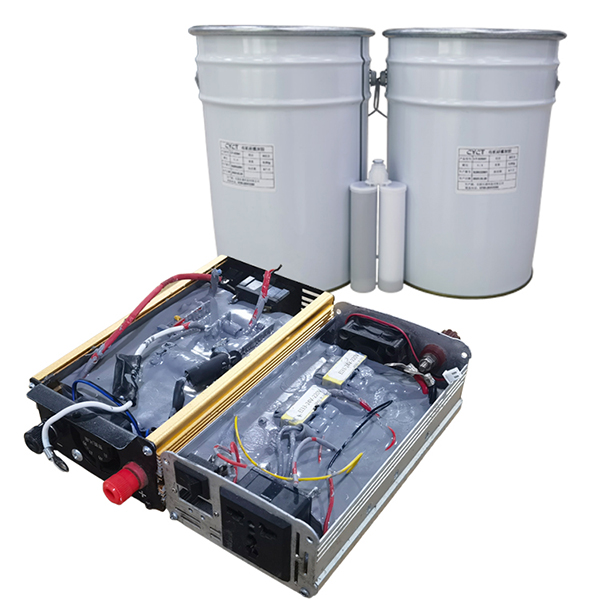

To address these challenges, thermally conductive potting compounds have become one of the most effective protection and thermal management solutions in power supply applications. By encapsulating sensitive electronic assemblies with specially engineered epoxy, silicone, or polyurethane materials, manufacturers can achieve enhanced heat dissipation, superior electrical insulation, flame retardancy, waterproof sealing, and mechanical reinforcement.
This article explores the role, material selection, key performance benefits, application scenarios, and design considerations of thermally conductive potting compounds for power supply systems.
Power supplies operate through continuous switching, rectification, filtering, and voltage regulation. These processes generate substantial heat, especially in high-frequency and high-power designs.
Modern power supplies are becoming smaller while delivering higher output. Compact designs reduce internal airflow and limit natural cooling paths. Components such as transformers, power MOSFETs, IGBTs, diodes, inductors, and capacitors can quickly develop localized hot spots.
Without proper thermal transfer pathways, these hot spots may lead to:
* Reduced conversion efficiency
* Drift in output voltage stability
* Premature capacitor aging
* Semiconductor junction degradation
* Solder joint fatigue
* PCB delamination
* Thermal runaway risks
Thermally conductive potting compounds create a direct heat transfer bridge between heat-generating components and the enclosure or heat sink, significantly improving thermal dissipation.
Many power supplies work in harsh environments, such as:
* Outdoor telecom cabinets
* EV charging stations
* Industrial automation lines
* Renewable energy storage systems
* Railway electronics
* Marine equipment
In these environments, moisture, dust, corrosive gases, salt spray, and vibration can all threaten long-term reliability. Potting compounds provide a complete sealing barrier that isolates internal electronics from external damage.
Choosing the right potting compound starts with understanding the critical performance requirements.
Thermal conductivity is the core parameter. For most power supply applications, thermal conductivity ranges from 0.8 W/m·K to 3.0 W/m·K, while high-end industrial or EV systems may require 5.0 W/m·K or above.
Higher thermal conductivity helps:
* Reduce internal component temperature
* Balance heat distribution
* Improve overload tolerance
* Extend component lifespan
* Support compact power density designs
Power supplies involve high voltage isolation between primary and secondary circuits. Therefore, potting materials must maintain:
* High dielectric strength
* Low dielectric constant
* Stable insulation resistance
* Partial discharge resistance
* Arc tracking resistance
Excellent insulation performance improves safety compliance and reduces breakdown risks.
Safety standards often require flame-retardant encapsulation materials, especially for industrial power supplies, EV chargers, and household adapters.
A UL94 V-0 flame-retardant rating is commonly required to reduce fire propagation risk.
Thermally conductive potting compounds help power modules achieve high ingress protection levels such as:
* IP65
* IP67
* IP68
This is especially important for outdoor power systems and waterproof LED drivers.
Potting compounds protect against:
* Shock
* Vibration
* Drop impact
* Thermal cycling stress
* Solder fatigue
Flexible silicone systems are especially effective for vibration-sensitive power modules.
Different chemistries suit different design goals.
Epoxy systems are widely used because of:
* Excellent adhesion
* High mechanical strength
* Strong chemical resistance
* Good thermal conductivity
* Outstanding insulation
They are ideal for industrial power supplies, transformers, and inverter modules.
Silicone materials provide:
* Superior flexibility
* Excellent high-temperature resistance
* Low stress on components
* UV stability
* Long-term outdoor durability
These are preferred for LED drivers, telecom power modules, and outdoor charging equipment.
Polyurethane systems balance:
* Flexibility
* Adhesion
* Moisture resistance
* Good low-temperature stability
They are suitable for medium-power industrial modules and consumer electronics adapters.
Thermally conductive potting materials are widely used to encapsulate critical heat-generating and high-voltage parts.
Magnetic components generate copper and core losses, leading to heat buildup. Potting improves both thermal transfer and winding fixation.
Electrolytic capacitors and film capacitors are highly temperature-sensitive. Lower operating temperatures dramatically extend lifespan.
Switching devices experience concentrated junction heating. Thermally conductive encapsulation transfers this heat away efficiently.
Potting secures SMT and through-hole components while protecting against vibration and contamination.
Encapsulation prevents creepage failure, corona discharge, and moisture-driven insulation loss.
Fast chargers require stable thermal management for high-voltage power modules, DC conversion units, and control boards.
Outdoor solar inverters face heat, UV exposure, humidity, and dust. Potting compounds ensure long-term stability.
5G base stations and telecom cabinets require highly reliable power conversion systems with low maintenance needs.
Servo drives, PLC power units, and motor controllers need robust encapsulation for vibration-heavy environments.
Medical devices demand high electrical safety, long service life, and strict insulation reliability.
Avoid overdesign. Higher thermal conductivity often increases viscosity and cost. Material selection should match actual heat generation.
The coefficient of thermal expansion should align with PCB and component materials to minimize cracking during thermal cycling.
For automated dispensing lines, proper pot life and low bubble formation are critical.
Fast room-temperature cure or heat-accelerated cure options can optimize manufacturing throughput.
Some applications prefer soft silicone systems for easier repair, while epoxy is usually permanent.
By integrating thermal management with environmental protection, potting compounds significantly reduce field failure rates.
Key reliability improvements include:
* Lower operating temperature
* Better moisture resistance
* Enhanced dielectric safety
* Longer capacitor life
* Reduced vibration failure
* Improved overload stability
* Better thermal shock resistance
For power supply manufacturers, this translates into:
* Lower warranty claims
* Higher MTBF
* Better customer trust
* Easier certification
* Improved brand reputation
As power electronics evolve toward higher frequency, higher voltage, and smaller size, potting materials are also advancing.
Advanced ceramic fillers such as alumina, boron nitride, and aluminum nitride are improving heat transfer efficiency.
Next-generation silicone and modified epoxy systems reduce stress on fragile semiconductors.
Low-VOC, halogen-free, and environmentally friendly systems are becoming more popular.
High-density server power systems increasingly require advanced thermal potting for long-term stable operation.
Thermally conductive potting compounds are no longer optional in modern power supply design. They combine thermal management, electrical insulation, flame retardancy, waterproof sealing, and structural reinforcement into a single material solution.
Whether used in industrial power modules, EV chargers, solar inverters, telecom rectifiers, or medical equipment, the right potting compound significantly enhances reliability, safety, and lifespan.
For manufacturers focused on compact design, high power density, and long-term field durability, selecting the proper thermally conductive potting solution is a strategic engineering decision that directly impacts product performance and market competitiveness.
For standard power supplies, 1.0–2.0 W/m·K is common. High-power modules may require 3.0 W/m·K or higher.
Epoxy offers stronger adhesion and mechanical strength, while silicone provides better flexibility and thermal cycling resistance.
Yes. Proper encapsulation can help power supplies achieve IP65 to IP68 protection.
Absolutely. High dielectric strength materials reduce short circuit and breakdown risks.
Yes. They are widely used in onboard chargers, DC fast chargers, and battery energy storage power modules.
Yes. Improved heat transfer lowers capacitor operating temperature and extends service life.
