Electric motors are at the heart of modern industry, powering applications ranging from household appliances to electric vehicles and advanced industrial machinery. As performance expectations increase, so does the need for enhanced protection, reliability, and efficiency. One of the most effective ways to achieve these improvements is through the use of potting compounds.
Potting compounds are specially formulated materials used to encapsulate electronic and electrical components. In motor applications, they play a critical role in safeguarding internal parts against environmental hazards, improving electrical insulation, and optimizing thermal management. This article explores how potting compounds enhance motor performance, the different material options available, and how to select the right solution for specific applications.

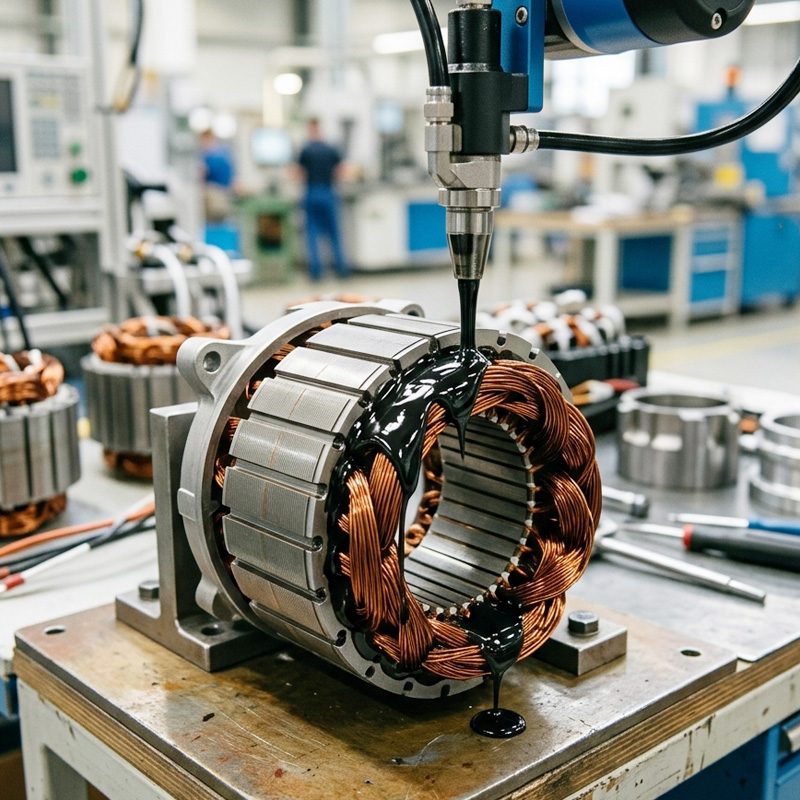

Potting compounds are liquid materials that are poured into a motor assembly to encapsulate sensitive components. Once cured, they form a solid protective layer that shields internal elements from moisture, dust, vibration, and chemical exposure.
* Mechanical protection against shock and vibration
* Electrical insulation to prevent short circuits
* Thermal management through heat dissipation
* Environmental sealing against moisture and contaminants
* Enhancement of long-term durability and reliability
By integrating these functions, potting compounds significantly extend the service life of motors, especially in demanding environments.
Electric motors operate under various stresses, including electrical loads, mechanical vibration, and thermal cycling. Without adequate protection, these stresses can lead to insulation failure, overheating, or premature breakdown.
Motors are often exposed to harsh environments such as high humidity, dust, chemicals, or even water immersion. Potting compounds create a sealed barrier that prevents external elements from penetrating the motor housing.
Electrical insulation is critical in preventing current leakage and short circuits. Potting materials provide excellent dielectric strength, ensuring safe and stable motor operation.
Vibration and mechanical shock can damage internal components over time. Potting compounds immobilize these components, reducing movement and minimizing wear.
Heat is one of the primary causes of motor failure. Thermally conductive potting compounds help transfer heat away from critical components, maintaining optimal operating temperatures.
Different types of potting compounds are used depending on the application requirements. The most common materials include epoxy, polyurethane, and silicone.
Epoxy resins are widely used due to their strong adhesion, excellent mechanical strength, and superior chemical resistance.
* High mechanical strength
* Excellent adhesion to various substrates
* Strong resistance to chemicals and solvents
* Good electrical insulation
* Rigid after curing, which may lead to stress under thermal expansion
* Limited flexibility
Polyurethane materials offer a balance between flexibility and durability, making them suitable for applications with moderate thermal and mechanical stress.
* Good flexibility and impact resistance
* Effective moisture protection
* Moderate thermal conductivity
* Lower temperature resistance compared to epoxy
* May degrade under prolonged UV exposure
Silicone-based compounds are known for their flexibility and high-temperature performance.
* Excellent thermal stability
* High flexibility, even at low temperatures
* Good resistance to thermal cycling
* Lower mechanical strength
* Higher cost compared to other materials
As motors operate, they generate heat due to electrical losses and mechanical friction. If this heat is not effectively dissipated, it can lead to insulation degradation and reduced efficiency.
Thermally conductive potting compounds are formulated with fillers such as aluminum oxide or other conductive materials. These fillers enhance the compound's ability to transfer heat away from heat-generating components.
* Reduced operating temperature
* Improved motor efficiency
* Extended lifespan of components
* Enhanced reliability in high-performance applications
Potting compounds are used across a wide range of motor types and industries.
In electric vehicles, motors must operate efficiently under high loads and varying environmental conditions. Potting compounds provide thermal management and insulation, ensuring reliable performance.
Industrial motors often operate in harsh environments with exposure to dust, chemicals, and mechanical stress. Potting compounds protect internal components and enhance durability.
Small motors used in household appliances benefit from potting compounds by achieving quieter operation and improved longevity.
Motors used in wind turbines and solar tracking systems require robust protection against outdoor conditions. Potting compounds ensure long-term reliability in these applications.
Selecting the right potting compound involves evaluating several critical properties.
For high-performance motors, materials with high thermal conductivity are essential to manage heat effectively.
High dielectric strength ensures reliable electrical insulation and prevents failure.
Low-viscosity materials are easier to apply and can penetrate complex geometries, ensuring complete encapsulation.
Fast curing can improve production efficiency, but it must be balanced with proper processing requirements.
The compound should withstand exposure to moisture, chemicals, and temperature fluctuations.
Although often used interchangeably, potting and encapsulation have subtle differences.
* Potting typically involves filling an enclosure with a compound to protect components
* Encapsulation refers to completely enclosing components in a protective material
In motor applications, potting is more commonly used due to its practicality and cost-effectiveness.
While potting compounds offer numerous benefits, there are challenges to consider.
Differences in thermal expansion between materials can lead to stress and cracking.
Once a motor is potted, accessing internal components becomes difficult, making repairs challenging.
Choosing the wrong material can lead to performance issues, highlighting the importance of proper selection.
As motor technology evolves, potting compounds are also advancing.
New formulations are being developed to offer higher thermal conductivity and improved flexibility.
Manufacturers are focusing on eco-friendly materials with lower environmental impact.

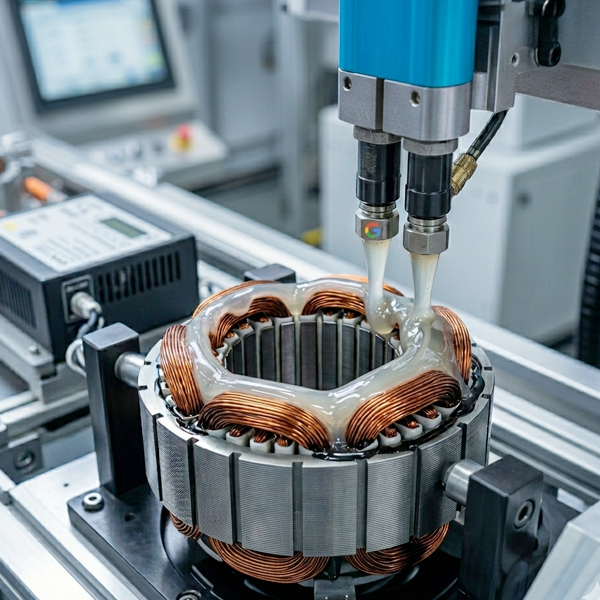

Automation and precision dispensing technologies are improving the consistency and efficiency of potting processes.
Potting compounds play a vital role in enhancing the performance, durability, and reliability of electric motors. By providing protection against environmental factors, improving electrical insulation, and enabling efficient heat dissipation, these materials address some of the most critical challenges in motor design and operation.
Choosing the right potting compound requires careful consideration of application requirements, material properties, and environmental conditions. As technology continues to advance, potting solutions will become even more sophisticated, supporting the next generation of high-performance motors.
Potting compounds are used to protect motor components from environmental damage, provide electrical insulation, and improve heat dissipation.
Silicone-based potting compounds are typically preferred for high-temperature environments due to their excellent thermal stability.
They enhance heat transfer away from critical components, reducing operating temperatures and increasing efficiency and lifespan.
Repairing potted motors is difficult because the encapsulated components are not easily accessible.
Key factors include thermal conductivity, dielectric strength, flexibility, curing time, and environmental resistance.
