Capacitors are essential components in modern electronic systems, ranging from small consumer electronics to large industrial power systems. As electronic devices become more powerful, compact, and exposed to harsher environments, protecting sensitive capacitor components has become increasingly important. One of the most reliable and widely used protection methods is epoxy potting.
Epoxy potting compounds provide mechanical support, electrical insulation, and environmental protection for capacitors. They enhance durability, extend service life, and ensure stable electrical performance even under demanding operating conditions. With the rapid growth of advanced technologies such as artificial intelligence infrastructure, electric vehicles, renewable energy systems, and power electronics, epoxy potting compounds have become a critical material in capacitor manufacturing.
This article explores epoxy potting compounds for capacitors, including their composition, performance advantages, application methods, and emerging industry trends. Special attention is given to key application scenarios such as supercapacitors used in AI data centers and film capacitors used in new energy vehicles.
Epoxy potting compounds are thermosetting polymer materials formulated primarily from epoxy resins, curing agents, fillers, and functional additives. Once mixed and cured, the liquid compound transforms into a solid protective mass that encapsulates electronic components.
In capacitor manufacturing, potting involves filling the capacitor housing or enclosure with epoxy resin to protect the internal winding, electrodes, and connections. After curing, the epoxy forms a rigid or semi-rigid protective structure around the capacitor core.
Typical epoxy potting systems contain several key ingredients.
Epoxy resin
This is the primary base material that provides adhesion, chemical resistance, and mechanical strength.
Curing agents
Curing agents react with epoxy resin to create a crosslinked polymer network. Common curing agents include amine-based and anhydride-based hardeners.
Fillers
Mineral fillers such as silica, alumina, or quartz improve thermal conductivity, reduce shrinkage, and control viscosity.
Additives
Additives enhance performance characteristics such as flame retardancy, flexibility, UV resistance, and electrical insulation.
Through careful formulation, epoxy potting compounds can be tailored to meet the specific requirements of different capacitor types.
Capacitors operate under electrical stress, thermal cycling, and environmental exposure. Without proper protection, they may suffer from performance degradation or early failure.
Epoxy potting compounds provide excellent dielectric properties. They isolate conductive elements and prevent electrical leakage or short circuits between internal components.
Potting materials hold internal capacitor structures firmly in place. This is particularly important for film capacitors and large energy storage capacitors where vibration or movement could damage internal windings.
Epoxy potting protects capacitors from:
* Moisture and humidity
* Dust and contaminants
* Chemical exposure
* Corrosive environments
This protection is essential for capacitors used in outdoor installations, automotive systems, and industrial equipment.
Certain epoxy potting formulations include thermally conductive fillers that help dissipate heat generated during capacitor operation. Proper thermal management improves performance and extends service life.
Not all epoxy resins are suitable for potting capacitors. Specialized formulations are required to meet strict electrical and mechanical standards.
Potting materials must provide strong insulation performance to prevent dielectric breakdown under high voltage.
Excessive shrinkage during curing can create mechanical stress on internal components, potentially damaging capacitor windings or terminals.
Capacitors used in power electronics generate heat during operation. Thermally conductive potting materials help transfer heat away from critical components.
For safety reasons, many capacitor potting compounds must meet flame retardant standards such as UL94 V-0.
The potting compound must resist aging, oxidation, and chemical attack over long service periods.
Proper viscosity ensures the potting compound flows easily into small gaps and spaces inside the capacitor enclosure.
Different capacitor technologies require specialized potting materials depending on their design and operating conditions.

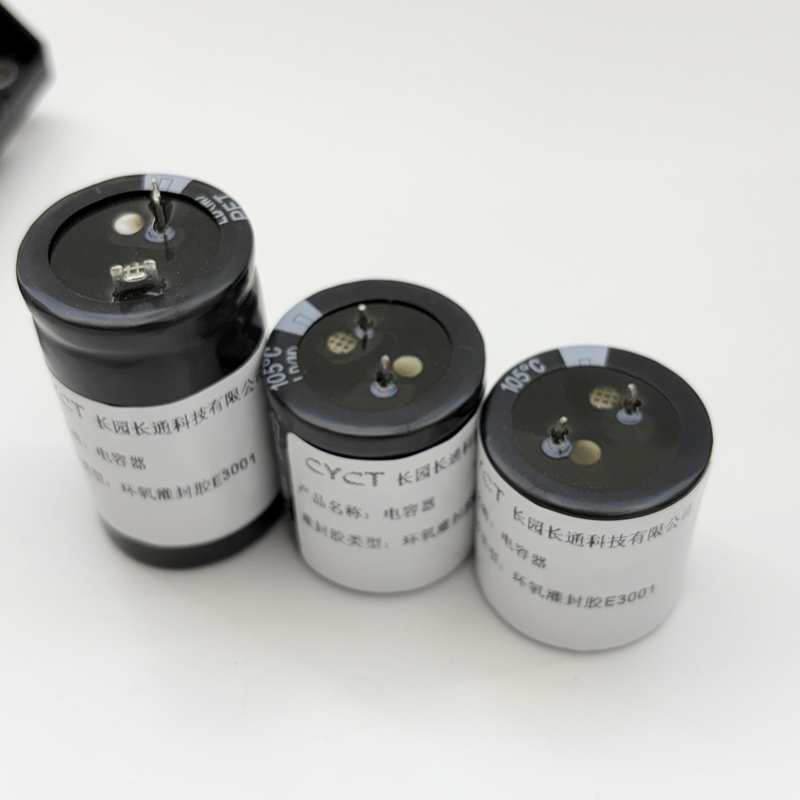

Epoxy potting protects terminals and internal structures while providing additional insulation and mechanical support.
Film capacitors are widely used in power electronics and require potting to prevent vibration damage and environmental contamination.
Supercapacitors store large amounts of energy and often operate under high current conditions. Potting materials help stabilize internal structures and improve safety.
High-voltage power capacitors used in grid systems or industrial equipment require robust potting protection to withstand electrical stress and environmental exposure.
Artificial intelligence computing systems require enormous energy to power high-performance processors, storage systems, and cooling equipment. Modern AI data centers increasingly rely on supercapacitors for energy buffering, backup power, and rapid energy discharge.
Supercapacitors are particularly useful in scenarios where instant power delivery is required, such as:
* Stabilizing power supply during peak computing loads
* Providing short-term backup during power fluctuations
* Supporting high-speed switching power systems
Epoxy potting compounds play an important role in protecting supercapacitors used in data centers.
AI servers generate large amounts of heat. Potting materials with high thermal conductivity help dissipate heat from capacitor modules and maintain stable performance.
High-density server racks contain numerous electrical components operating at high current. Epoxy encapsulation ensures insulation reliability and reduces the risk of electrical failure.
Data center equipment experiences constant vibration from cooling fans and airflow systems. Potting materials secure internal capacitor structures and improve durability.

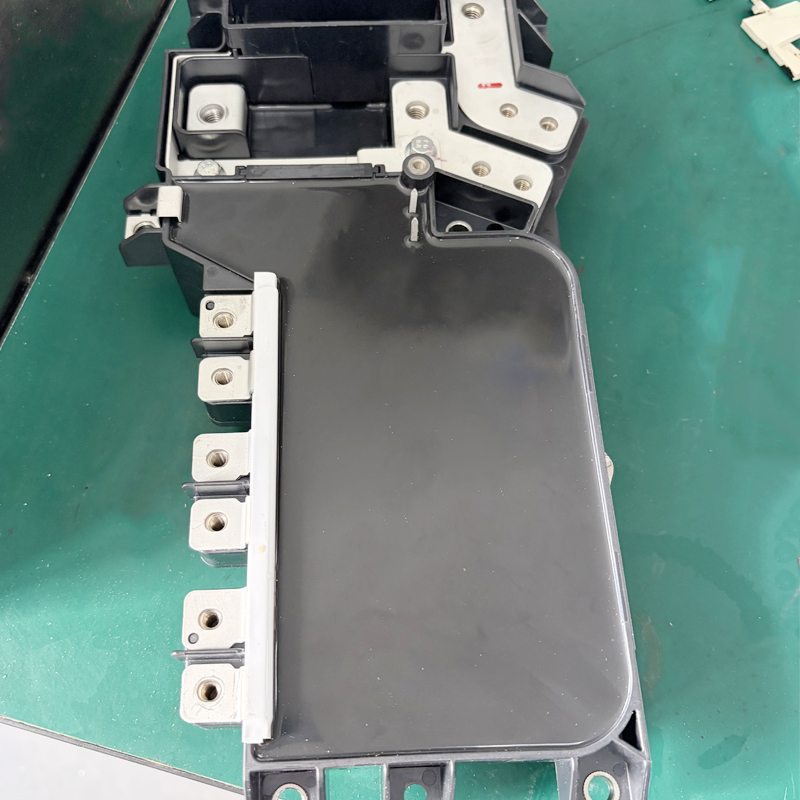

New energy vehicles rely heavily on advanced power electronics. Film capacitors are widely used in traction inverters, DC link circuits, onboard chargers, and power conversion systems.
These applications demand exceptional reliability because capacitor failure could affect vehicle safety and performance.
Electric vehicle systems typically operate at hundreds of volts. Epoxy potting compounds provide strong insulation and help prevent electrical breakdown.
Vehicles operate under continuous vibration and mechanical shock. Potting materials reinforce the capacitor structure and prevent internal displacement.
Automotive environments involve frequent temperature changes. Epoxy materials with suitable flexibility and thermal stability ensure long-term reliability.
Renewable energy installations such as solar inverters and wind turbine converters rely on capacitors for power conditioning and energy storage.
These systems are often installed outdoors where equipment must withstand harsh environmental conditions.
Epoxy potting compounds protect capacitors from humidity, temperature fluctuations, and environmental contaminants, ensuring reliable operation over long service periods.
Industrial automation systems, motor drives, and power converters rely heavily on capacitors to stabilize voltage and filter electrical noise.
In these applications, epoxy potting compounds provide:
* Electrical insulation
* Mechanical protection
* Thermal management
* Resistance to industrial chemicals
This protection helps maintain stable performance in factories, manufacturing plants, and heavy industrial environments.
Many consumer electronic devices use compact capacitors that must be protected from moisture and mechanical stress.
Examples include:
* Power adapters
* LED lighting drivers
* Smart home devices
* Communication equipment
Epoxy potting compounds help improve reliability while enabling compact device design.
The potting process generally follows several key steps.
The capacitor assembly is placed inside a housing or mold. Surfaces are cleaned to remove dust and contaminants.
Two-component epoxy systems consist of resin and curing agent. These components are mixed in precise ratios to initiate the curing reaction.
Air bubbles are removed from the mixture to ensure uniform potting and prevent void formation.
The liquid epoxy compound is poured or injected into the capacitor enclosure until internal components are fully encapsulated.
The compound cures at room temperature or elevated temperature depending on the formulation. During curing, the epoxy forms a solid protective structure.
As electronic technologies evolve, the requirements for epoxy potting compounds continue to increase.
Next-generation potting materials are being developed with improved thermal conductivity to support high-power electronics.
Flexible epoxy systems are gaining popularity to reduce mechanical stress during curing and thermal cycling.
Manufacturers are developing halogen-free and low-VOC potting compounds to meet environmental regulations.
Advanced electronics require materials that combine insulation, thermal management, and long-term stability.
Epoxy potting compounds play a vital role in protecting capacitors used across a wide range of industries. By providing electrical insulation, mechanical reinforcement, environmental protection, and thermal management, these materials significantly improve capacitor reliability and lifespan.
From AI data centers and electric vehicles to renewable energy systems and industrial electronics, the demand for high-performance capacitor potting materials continues to grow. As technology advances, epoxy formulations will evolve to meet increasingly demanding requirements for efficiency, safety, and durability.
The main purpose is to provide electrical insulation, mechanical stability, and environmental protection for the internal components of capacitors.
Yes, specially formulated epoxy potting materials have high dielectric strength and are widely used in high-voltage capacitor applications.
They help dissipate heat generated during capacitor operation, improving reliability and extending service life.
Yes, epoxy potting secures internal components and prevents movement or damage caused by vibration or mechanical shock.
Yes, they are widely used to protect film capacitors and other power electronic components in electric vehicle systems.
Properly formulated potting materials enhance reliability without negatively affecting electrical performance.
