The transition toward sustainable energy systems is fundamentally rewriting the requirements for electronic packaging and protection. As power density increases in applications ranging from electric vehicle drivetrains to renewable energy storage, the components responsible for managing this energy must endure increasingly harsh operational environments. Potting compounds—often referred to as encapsulants—have emerged as the critical silent guardians of these technologies. By providing structural support, thermal management, and electrical insulation, these materials ensure the reliability and longevity of systems that form the backbone of the new energy infrastructure.
At its core, a potting compound is a liquid resin system that is poured or injected into an electronic assembly or housing. Once cured, it solidifies into a robust mass that completely encapsulates the sensitive components. In the context of new energy, the stakes are significantly higher than in consumer electronics. A failure in an inverter within a solar farm or a battery pack in an electric vehicle can lead to catastrophic downtime or safety risks.
Potting serves three primary functions in these systems. First, it provides mechanical protection by cushioning components against vibration, shock, and mechanical stress. Second, it serves as an electrical insulator, preventing short circuits by eliminating air gaps where corona discharge or electrical arcing might otherwise occur. Third, and perhaps most critically in high-power applications, it acts as a thermal conductor, drawing heat away from hot spots—such as power semiconductors—and transferring it to a heat sink or the device casing.
Furthermore, the potting material serves as a barrier against moisture, humidity, and corrosive atmospheric pollutants. In outdoor installations such as wind turbines or grid-scale solar inverters, the environmental exposure is relentless. Without the barrier protection offered by specialized potting compounds, these delicate electronic circuits would succumb to oxidation or electrolytic corrosion in a matter of months. Therefore, the selection of the correct encapsulant is essentially a preventative maintenance strategy, designed to extend the service life of critical infrastructure to the twenty-year mark or beyond.
Selecting the correct resin chemistry is the most vital decision in the design of a potting solution. Each material offers distinct advantages and trade-offs regarding thermal performance, flexibility, and chemical resistance.
Silicones are often the preferred choice in high-temperature environments. They offer exceptional thermal stability, maintaining their physical properties across a broad temperature range from sub-zero conditions to over two hundred degrees Celsius. Their inherent flexibility—even after curing—is a significant asset for components subjected to thermal cycling, as they can expand and contract without exerting undue mechanical stress on fragile solder joints or wire bonds. Furthermore, silicones possess excellent moisture resistance, providing a durable barrier against environmental degradation. They are widely utilized in the encapsulation of sensitive sensors and power modules where reliability under extreme thermal stress is non-negotiable. Because silicone is naturally hydrophobic, it provides a superior seal against moisture ingress, which is critical for sensors operating in damp or humid underground utility environments.
Epoxy resins are celebrated for their exceptional mechanical strength and adhesion. When a high level of structural rigidity is required, epoxy is frequently the material of choice. These compounds offer superior resistance to chemicals, solvents, and fuels, making them ideal for protective housings exposed to harsh external conditions. Epoxies also provide excellent electrical insulation properties and can be formulated with high filler content to achieve impressive thermal conductivity. However, because they cure to a hard, rigid state, they can potentially transmit stress to components during rapid temperature fluctuations. Consequently, epoxy use requires careful consideration of the coefficient of thermal expansion to prevent cracking or component fatigue. They are often chosen for applications where the encapsulated unit itself must serve as a structural part of the overall assembly, effectively bearing mechanical loads or providing physical protection against impacts.
Polyurethanes represent a balance between the extremes of silicone and epoxy. They offer good flexibility, which allows them to absorb mechanical shock and vibration effectively, and they typically exhibit better adhesion to certain plastics than silicones. Polyurethanes are often favored for their cost-effectiveness and their ability to cure at room temperature. They are particularly well-suited for medium-voltage applications and general-purpose protection. While they do not match the extreme high-temperature stability of silicones, they are more than adequate for many internal automotive electronics and battery management system assemblies. Their toughness also makes them highly resistant to abrasion, which is a valuable trait for electronics installed in industrial machinery or heavy-duty transportation vehicles.
The choice between single-component and two-component systems often dictates the workflow and efficiency of the manufacturing line.
Single-component potting compounds are designed for ease of use, as they do not require metering or mixing by the end-user. These materials often cure through exposure to heat, moisture, or ultraviolet light. In high-volume manufacturing settings, single-component systems can streamline assembly processes, as they eliminate the risk of mixing errors and reduce the need for complex dispensing equipment. However, they are often limited by storage requirements—such as the need for refrigerated transport—and can have slower curing times compared to reactive two-part systems. These systems are highly beneficial in automated production lines where speed is prioritized and the complexity of multi-part dispensing must be minimized.

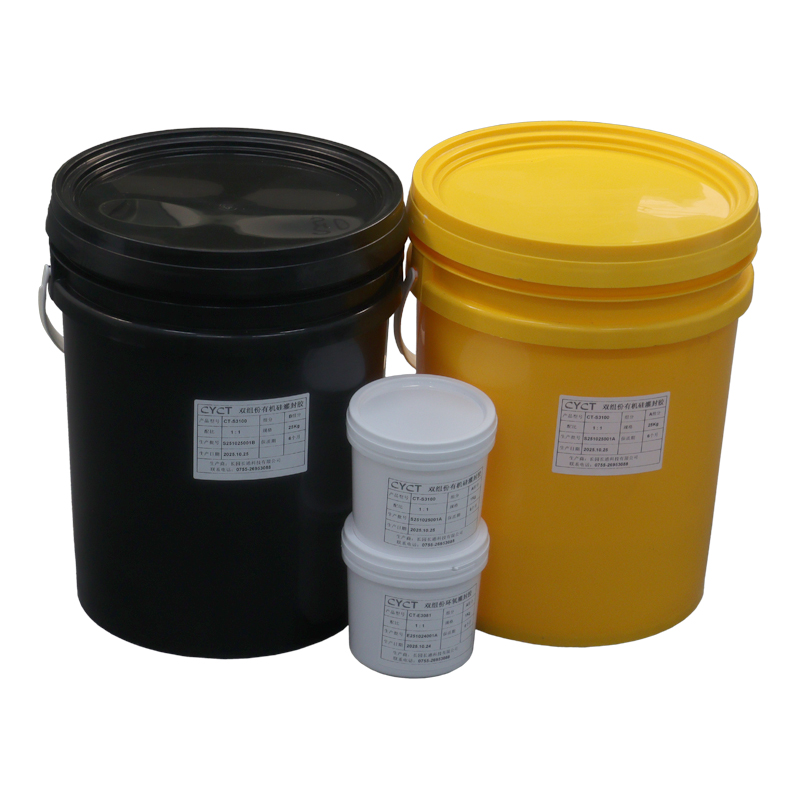

Two-component systems, consisting of a base resin and a curing agent, offer greater versatility and faster process control. These materials begin to react the moment they are mixed, allowing manufacturers to adjust cure times based on the application requirements. Because the reaction is chemical rather than reliant on environmental triggers, two-component systems ensure a uniform cure throughout the entire volume of the potting mass, even in deep or shadowed areas where light or moisture might not penetrate. This makes them the industry standard for large, complex assemblies where reliable, deep-section curing is essential. The ability to tailor the "pot life"—the amount of time available to work with the material before it sets—allows engineers to optimize assembly throughput for specific product designs.

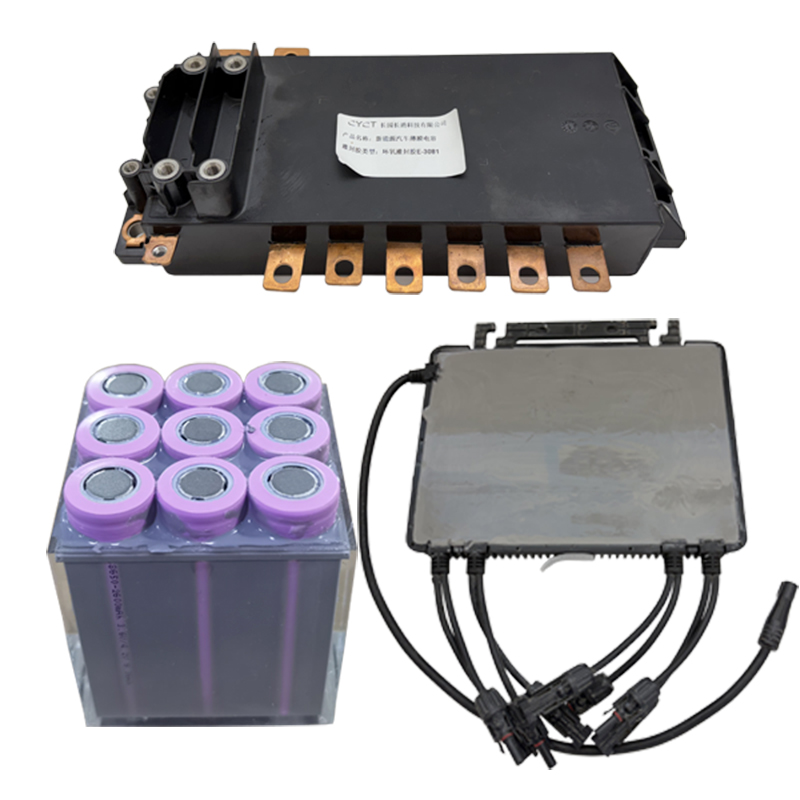

The unique demands of new energy components necessitate tailored approaches to encapsulation, requiring engineers to consider both the electrical load and the physical constraints of the hardware.

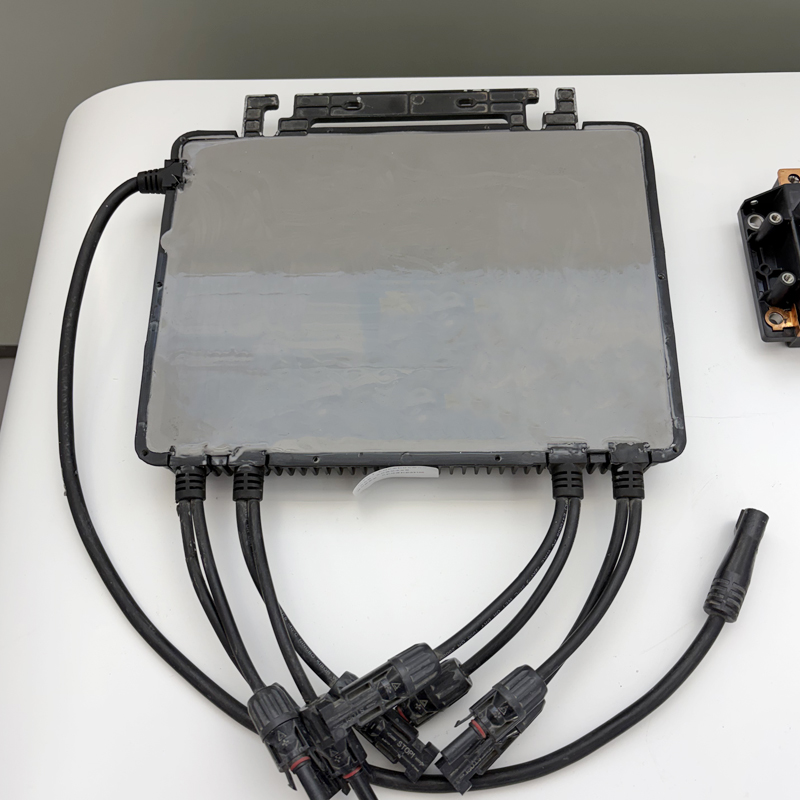

Inverters, which convert DC power from batteries or solar panels to AC power for the grid or motors, contain high-voltage switching components that generate significant heat. Potting compounds in these devices must provide high dielectric strength to prevent arcing and high thermal conductivity to dissipate heat away from insulated gate bipolar transistors. Silicones are often preferred here due to their ability to withstand the high-frequency switching temperatures without degrading. As inverter efficiency requirements rise, the need for low-loss dielectric potting materials becomes even more critical, ensuring that the electrical energy is converted with minimal waste heat and maximum safety.

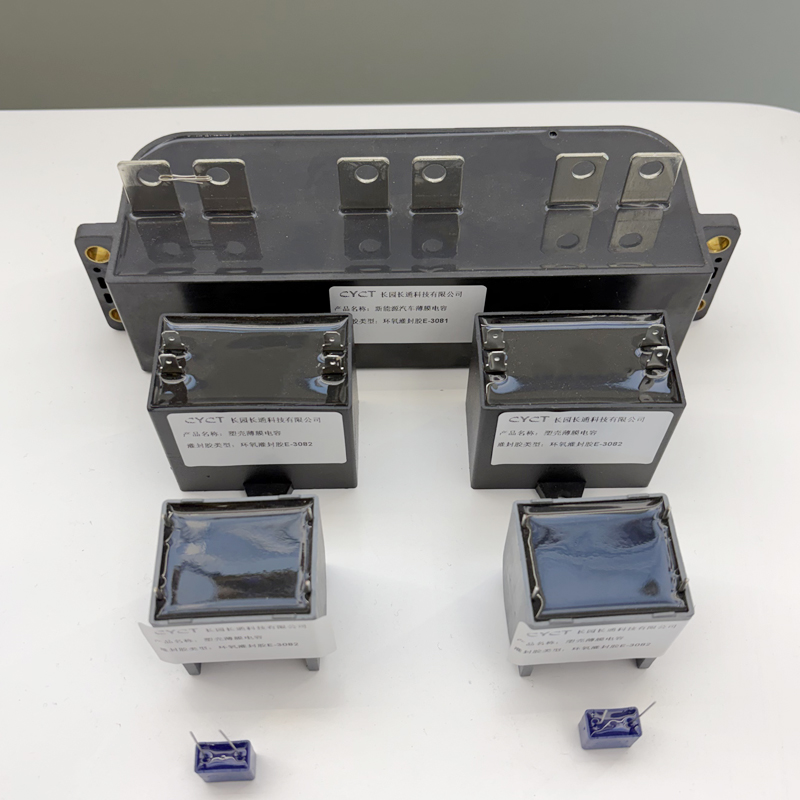

Film capacitors are integral to the reliability of power electronics. They are highly sensitive to moisture and mechanical impact, both of which can cause catastrophic failure. Potting these components requires materials with low viscosity to ensure complete penetration into the tightly wound film layers. Epoxy resins are commonly used here to provide a rigid, protective shell that maintains the capacitor's internal geometry, while also offering excellent chemical resistance against potential contaminants. The rigidity of the epoxy helps to prevent the movement of the delicate internal film layers, which is crucial for maintaining the precise capacitance values required in high-frequency power switching.
Battery packs represent one of the most challenging environments for potting materials. Beyond the need for thermal management—where the compound helps maintain optimal operating temperatures for cells—there is a critical requirement for flame retardancy. Materials used in battery packs must comply with stringent safety standards to prevent thermal runaway propagation. Thermal interface materials, often based on silicone or polyurethane chemistries, are applied between cells to ensure uniform heat distribution and to provide the necessary mechanical support to hold the cells securely against vibration during vehicle operation. Advanced flame-retardant additives are integrated into these formulations to ensure that, in the event of an internal short circuit, the potting material acts as a fire barrier rather than a fuel source.
In electric vehicle drive units, the integration of power electronics and electric motors requires potting solutions that can operate under high mechanical strain. As the motors reach high RPMs, the resulting centrifugal forces are immense. Potting compounds must have high mechanical integrity to remain adhered to the windings and power electronics, preventing the formation of micro-cracks that would otherwise lead to failure. Here, specialized high-thermal-conductivity epoxies are often used to ensure that the heat from the motor windings is effectively transferred to the cooling jacket, maintaining optimal efficiency and preventing thermal degradation of the motor insulation system.
The future of potting in the new energy sector is defined by automation and smarter material design. We are seeing a move toward "smart" encapsulants that can provide real-time feedback on their own health. For instance, integrated sensors within the potting mass could potentially monitor the condition of the internal electronics, signaling a need for maintenance before a total system failure occurs.
Additionally, as circular economy principles become standard, there is increasing demand for "de-potting" or recyclable materials. While currently, most potting is permanent and destructive upon removal, research is underway into resins that can be softened or dissolved at the end of a product's life, allowing for the recovery of valuable metals and components from power electronics and battery modules. This shift would represent a massive step forward in the sustainability of the renewable energy and electric vehicle supply chains, ensuring that the components that power the green revolution do not become a secondary environmental burden.
As the new energy sector continues to innovate, the role of potting compounds will grow in importance. These materials are no longer mere "fillers" or "sealants"; they are integral design elements that define the operating limits and expected life span of power systems. By carefully balancing the requirements of mechanical support, thermal efficiency, and electrical safety, and by choosing the appropriate chemical platform—whether it be the resilience of silicone, the strength of epoxy, or the versatility of polyurethane—engineers can build energy systems that are as durable as they are efficient. The future of energy is built upon the reliability of these unseen, solidified protectors.
1. What is the main difference between epoxy and silicone in potting?
Epoxy is generally more rigid and provides stronger adhesion, making it ideal for structural protection. Silicone is more flexible and maintains its properties over a much wider temperature range, making it superior for applications prone to extreme thermal cycling.
2. Why are two-component systems preferred for large assemblies?
Two-component systems offer a predictable chemical cure that ensures the entire volume of the material solidifies uniformly. This is critical for large, deep housings where heat, moisture, or light-based single-component systems might not reach every section effectively.
3. How do potting compounds help in thermal management?
Many modern potting compounds are formulated with thermally conductive fillers. These materials help bridge the gap between heat-generating components and a heat sink, allowing heat to flow efficiently away from sensitive electronics, thus preventing overheating.
4. Can potting compounds be removed if a part fails?
Generally, potting is considered a permanent process. While some softer silicones can be physically picked or cut away to allow for component repair, epoxy and other rigid resins usually make the electronic assembly non-repairable, emphasizing the need for high reliability in the first place.
5. What role does viscosity play in choosing a potting compound?
Viscosity determines how well a compound flows around and underneath components. For dense assemblies, such as film capacitors or tightly packed battery cells, a low-viscosity material is necessary to ensure the compound fills all voids, preventing air bubbles that could lead to insulation breakdown.
