Product Description and Features

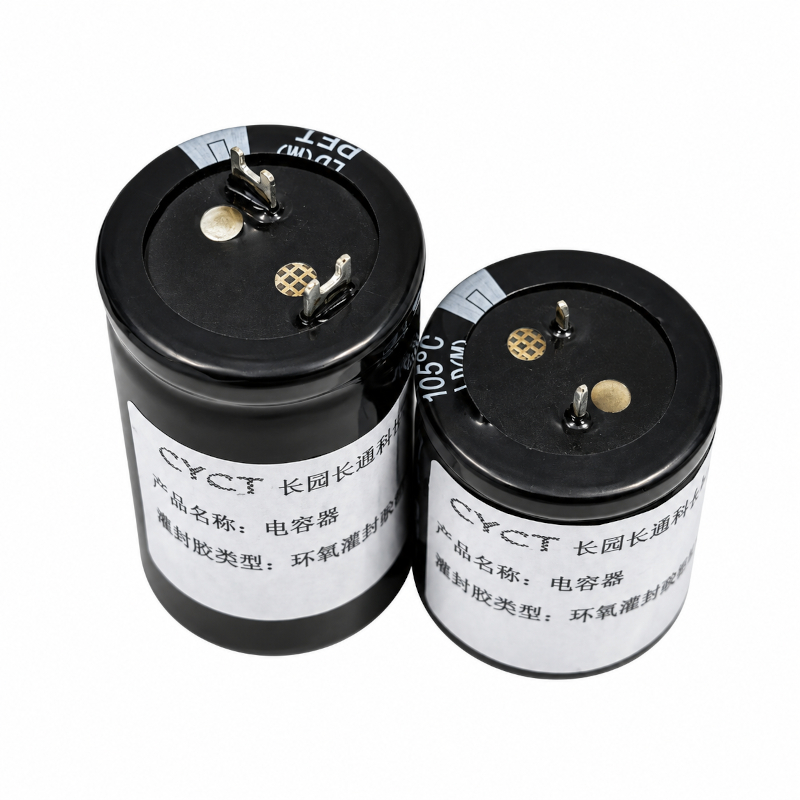

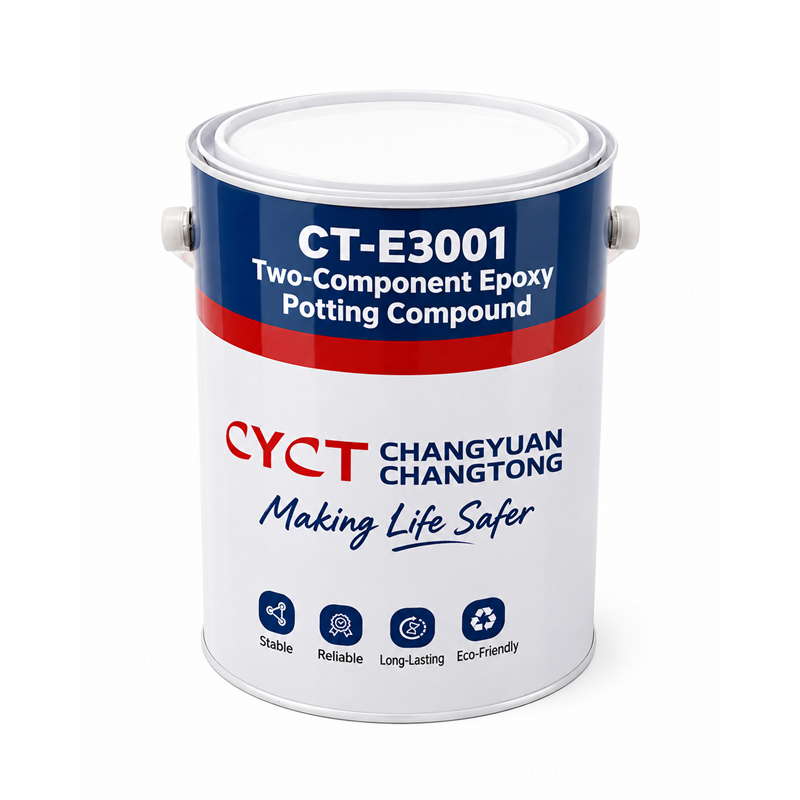

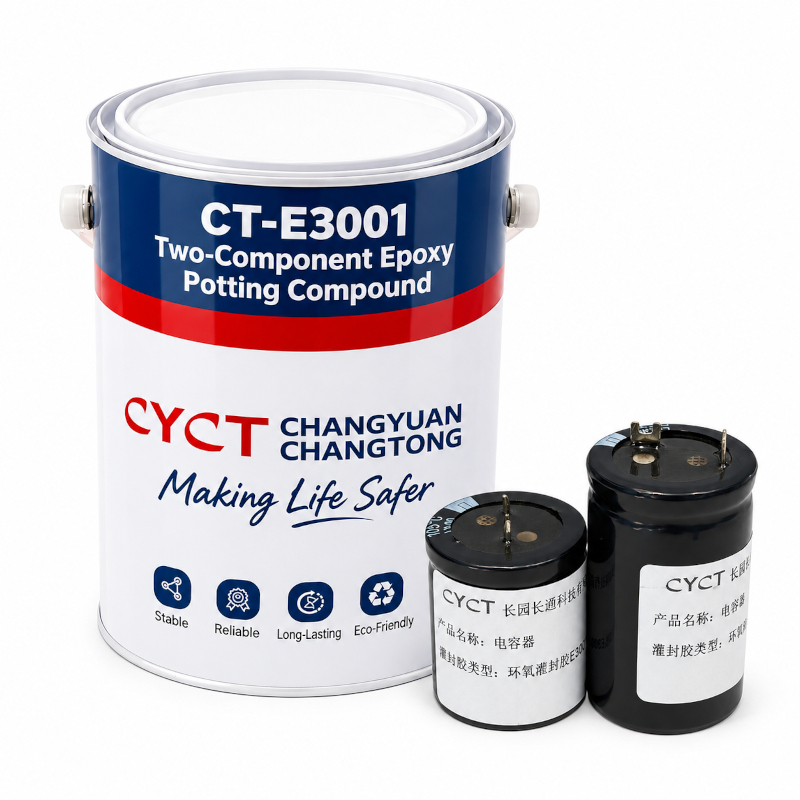

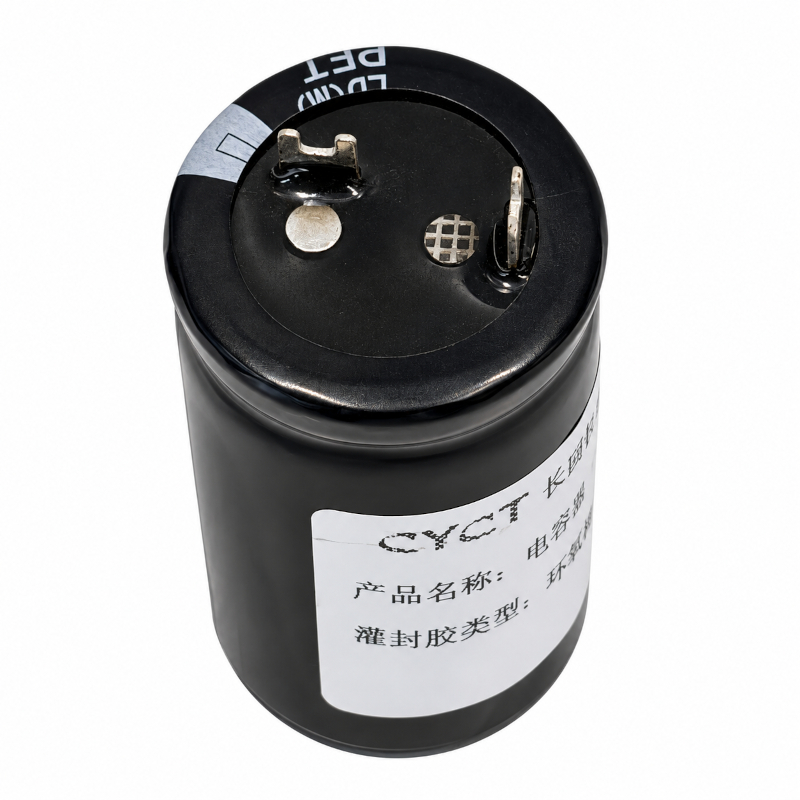

CT-E3001 is a two-component epoxy potting compound that cures at room temperature. It features low viscosity and excellent flowability, making it suitable for manual potting or automated dispensing using dispensing equipment. It is primarily designed for potting capacitors and other medium-to-large electronic products.
The product offers excellent adhesion, waterproof sealing, electrical properties, resistance to damp heat aging and thermal aging, and resistance to thermal shock caused by temperature cycling. It can meet RoHS and REACH compliance testing requirements, making it particularly suitable for potting electronic and electrical products subject to environmental compliance requirements.
Product Technical Data
Item
| Unit | Standard |
Before Curing | Appearance Component A |
| Black Liquid |
| Component B |
| Transparent Liquid
|
| Viscosity 25℃ Component A | Mpa.s | 7500±500 |
| Component B | Mpa.s | 500±100 |
| Density Component A | g/cm³ | 1.16±0.05 |
| Component B | g/cm³ | 1.05±0.05 |
| Mixing Ratio | A: B | 100：50 |
| Mixed Viscosity 25 ℃ | Mpa.s | 2000±300 |
| Operating Time 25 ℃/150g | min | 60 |
| GEL Time 25 ℃/150g | h | 2 |
| Curing Time 25℃ | h | 12 |
After Curing | Apprearance | / | Black Solid |
| Density | g/cm³ | 1.10±0.05 |
| Hardness | Shore D | ＞75 |
| Shear Strength AI3003 | Mpa | ＞7 |
| Volume Resistivity | Ω·cm | ≥1.0x1014 |
| Electric Strength | KV/mm | ≥20 |
| Dielectric Constant | / | ＜3.6 |
Packaging, Storage and Transportation
Packaging: 30 kg per set (Component A: 20 kg/pail; Component B: 10 kg/pail). Customized packaging is available upon request.
Storage: Store in a cool, dry place below 25°C, away from direct light. Keep the containers tightly sealed. The shelf life is 6 months from the date of manufacture.
Transportation: This product can be transported as a general chemical product. Care should be taken to prevent leakage during transportation.
