What Size Shrink Wrap for Battery? A Comprehensive Guide
In the world of electronics and battery management, ensuring the safety and longevity of your batteries is paramount. One of the most effective ways to protect batteries from environmental factors, physical damage, and short circuits is by using shrink wrap. But the question that often arises is, “What size shrink wrap for battery?” This article aims to provide a detailed guide on selecting the appropriate Heat Shrink Wrap size for various types of batteries, ensuring optimal protection and performance.
Shrink wrap, also known as Heat Shrink Tubing, is a polymer material that contracts when exposed to heat. It is widely used in electrical insulation, wire bundling, and battery protection. The material is available in various sizes, colors, and thicknesses, making it versatile for different applications.
Before diving into the specifics of sizing, it’s essential to understand why shrink wrap is crucial for batteries:
Shrink wrap provides an insulating layer that prevents accidental short circuits, which can be dangerous and damaging.
It protects batteries from moisture, dust, and other environmental factors that can degrade performance.
The wrap adds a layer of protection against physical impacts and abrasions.

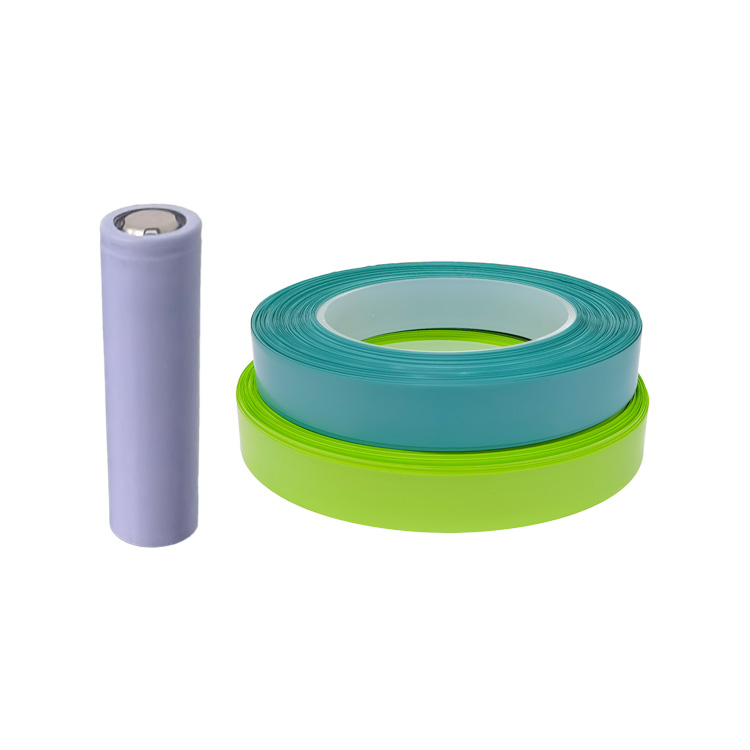

Cylindrical Battery Heat shrink tubingcan also be used to color-code batteries for easy identification and organization.
Selecting the right size of shrink wrap for your battery involves several factors:
Measure the length, width, and diameter of the battery. The shrink wrap should be slightly larger than the battery dimensions to ensure a snug fit after shrinking.
Shrink wrap comes with different shrink ratios, typically 2:1, 3:1, or 4:1. A 2:1 ratio means the wrap will shrink to half its original diameter when heated. Choose a shrink ratio that will provide a tight fit without excessive stretching.
Thicker materials offer more protection but may be harder to shrink uniformly. Consider the level of protection needed for your specific application.
Ensure you have an appropriate heat source, such as a heat gun, to evenly shrink the wrap without damaging the battery.
AA batteries typically measure 14.5mm in diameter and 50.5mm in length, while AAA batteries are 10.5mm in diameter and 44.5mm in length.
Recommended Shrink Wrap Size: For AA batteries, a 20mm diameter shrink wrap with a 2:1 shrink ratio is ideal. For AAA batteries, a 15mm diameter shrink wrap with a 2:1 shrink ratio works well.

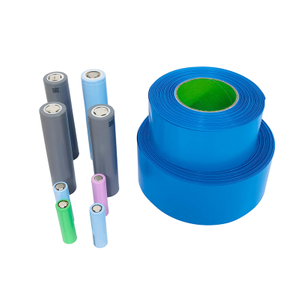

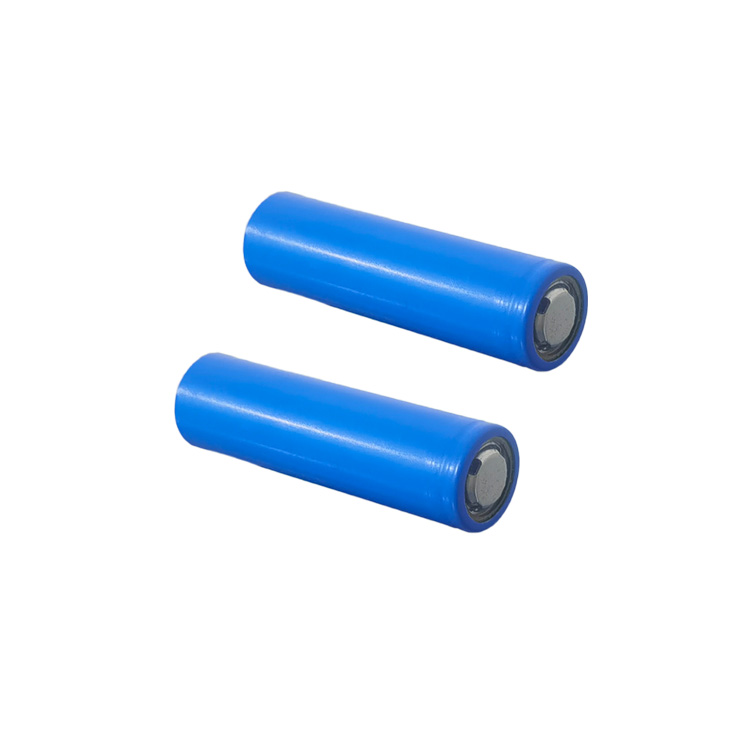

18650 batteries are commonly used in flashlights, laptops, and electric vehicles. They measure 18mm in diameter and 65mm in length.
Recommended Heat Shrink Wrap Size: A 25mm diameter shrink wrap with a 2:1 shrink ratio is suitable for 18650 batteries.
9V batteries are rectangular and measure approximately 26.5mm x 17.5mm x 48.5mm.
Recommended Shrink Wrap Size: A 30mm diameter shrink wrap with a 2:1 shrink ratio can accommodate the dimensions of a 9V battery.
Custom battery packs can vary significantly in size and shape.
Recommended Battery Packs Shrink Wrap Size: Measure the total dimensions of the battery pack and choose a shrink wrap size that is slightly larger. For irregular shapes, a higher shrink ratio (3:1 or 4:1) may be necessary to ensure a tight fit.
Measure the length of the battery and cut the shrink wrap to a length that covers the entire battery with a little extra on each end.
Insert the battery into the Heat Shrink Sleeve, ensuring it is centered.
Use a heat gun to evenly apply heat around the shrink wrap. Start from one end and work your way to the other, ensuring the wrap shrinks uniformly.
After shrinking, inspect the battery to ensure the wrap is tight and free of wrinkles or air bubbles.
Choosing the right size shrink wrap for your battery is crucial for ensuring protection, safety, and performance, you can contact Changyuan Changtong New Materials for more heat shrink tube informtion, it is a professional manufacturer of pet heat shrink tube. By considering the battery dimensions, shrink ratio, material thickness, and heat source, you can select the appropriate shrink wrap size for various battery types. Whether you're working with AA battery cell, AAA battery cell, 18650 battery cell, 14500cell, 21700 cell, 26700 cell, 32650 cell, 40132 cell, 40135 cell, 46800 cell, 60138 battery cell or custom cylindrical battery packs, this guide provides the information needed to make an informed decision. Remember, proper application of shrink wrap not only enhances the longevity of your batteries but also contributes to a safer and more organized electronic environment.
