Lithium-ion batteries are essential components in modern technology, powering everything from smartphones to electric vehicles. However, their packaging is critical for safety, performance, and compliance with regulations. This article explores the various aspects of lithium-ion battery packaging, including materials, methods, safety considerations, and regulatory compliance.
Lithium-ion batteries are classified as hazardous materials due to their potential to overheat, catch fire, or explode if damaged or improperly handled. Proper packaging ensures:
Safety: Prevents short circuits, overheating, and physical damage.
Compliance: Meets international shipping and handling regulations.
Performance: Maintains the integrity of the battery during storage and transport.
Inner packaging provides immediate protection to the battery itself. It includes:
Non-conductive materials: Plastic bags or blister packs are commonly used to prevent electrical contact and static discharge[2].
Cushioning materials: Foam inserts or bubble wrap absorb shocks during transport.
Dividers: Used to separate individual batteries, preventing contact that could lead to short circuits[3].

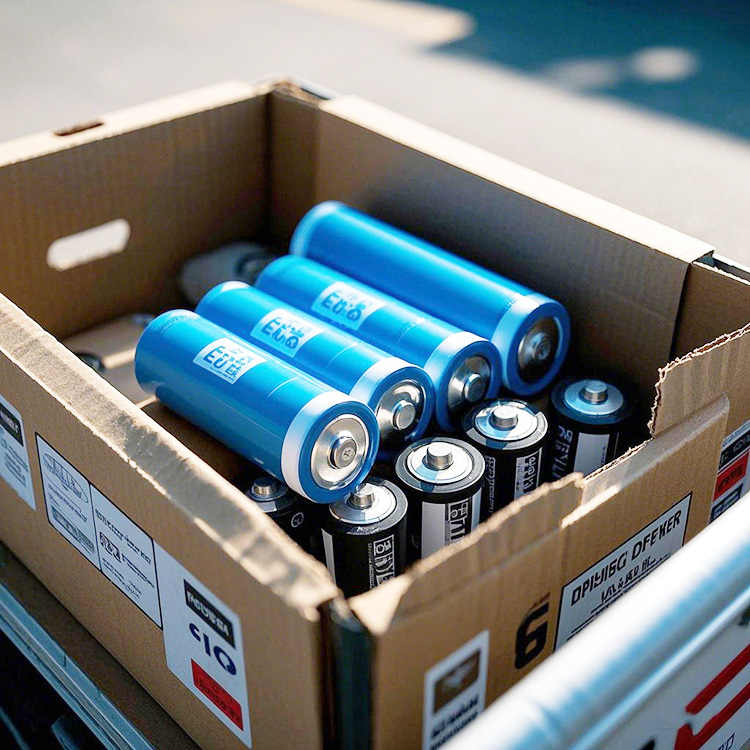

Outer packaging provides an additional layer of protection against external impacts. Common materials include:
Fiberboard boxes: Lightweight and cost-effective.
Metal containers: Offer maximum durability and are often used for high-risk shipments.
Plastic cases: Provide a balance between weight and strength[3].
Flexible packaging is a novel approach for lightweight and portable applications. For instance:

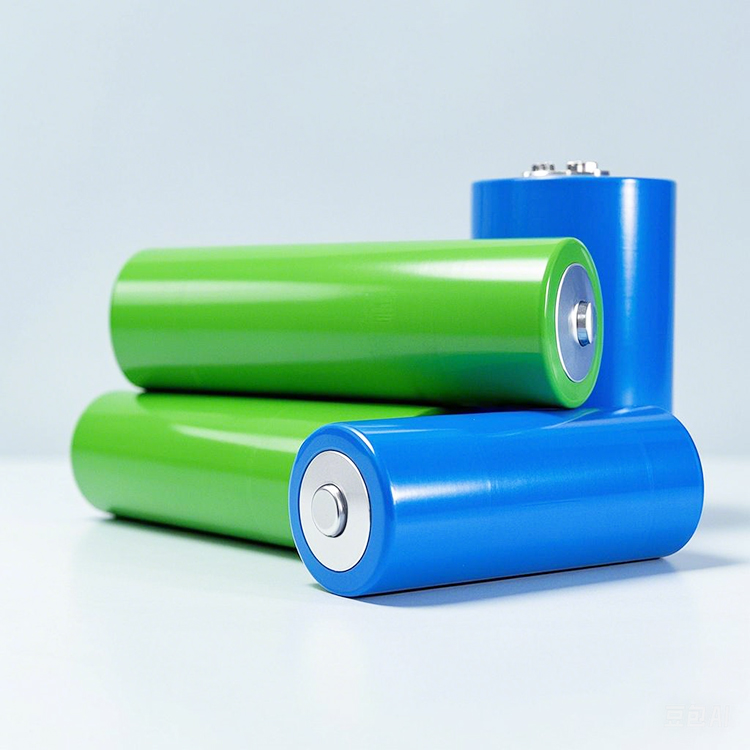

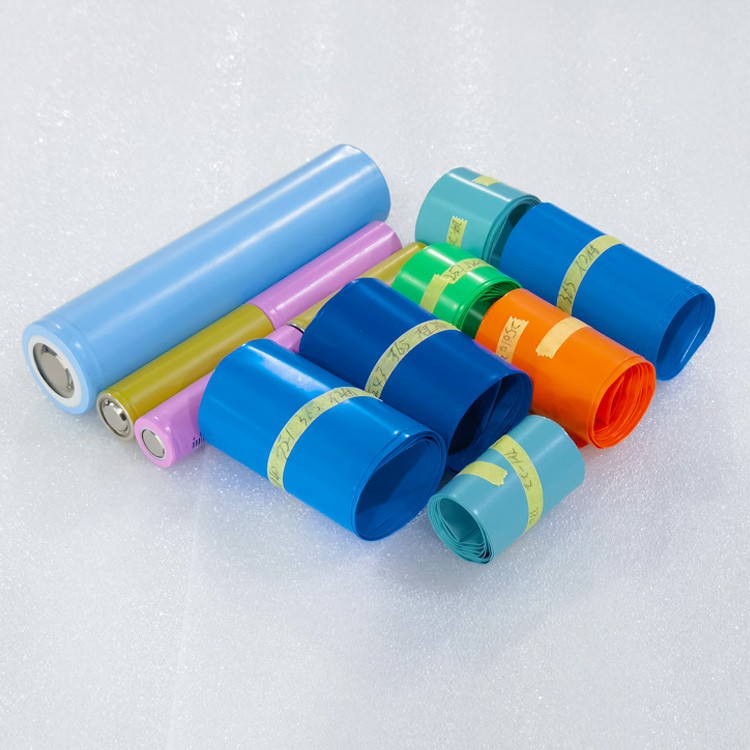

Plastic films:Used in lithium-ion batteries(18650, 21700, 33140, 4680, and other large-size cylindrical cells ) for power tools or outdoor energy storage, such as PET heat shrink wrapping sleeves and PVC heat shrink wrapping sleeves.
Laminated structures: Combine multiple layers for durability while maintaining flexibility[1].
Short circuits can cause overheating and fires. To prevent this:
- Terminals are covered with non-conductive tape or caps[2].
- Batteries are enclosed in non-metallic inner packaging.
Packaging includes cushioning materials like foam or air-filled pouches to absorb impact during handling and transit[3].
Some packages incorporate fire-resistant materials to contain potential fires caused by thermal runaway.
Outer packaging must withstand a 1.2-meter drop test without damaging the contents[3].
Shipping lithium-ion batteries involves strict compliance with international regulations:
1. UN Regulations

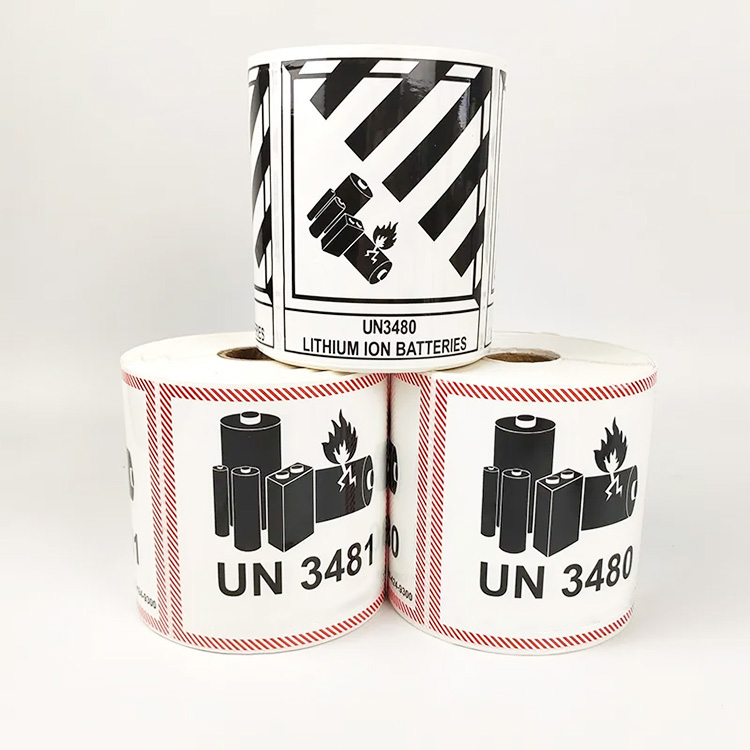

- Batteries must be marked with UN3480 (for standalone batteries) or UN3481 (batteries packed with equipment)[3].
- Packages must meet Packing Group II performance standards.
2. IATA Guidelines
The International Air Transport Association (IATA) imposes additional restrictions for air transport, including labeling and weight limits.
3. DOT Compliance
The U.S. Department of Transportation (DOT) requires specific markings, labels, and documentation for hazardous materials[3].
1. Sustainable Materials
With growing environmental concerns, manufacturers are exploring biodegradable or recyclable materials for battery packaging. PET heat shrink tubing is made from eco-friendly recyclable PET materials, offering a snug fit and robust protection, which can be used to protect battery cells against external physical damage such as abrasion and impact and also enhance the battery's insulation performance.
2. Smart Packaging
Advanced designs include sensors that monitor temperature and humidity inside the package.
3. Modular Designs
Modular packaging allows easy stacking and efficient use of space during shipping.
Balancing cost with safety requirements.
Ensuring compliance across different countries with varying regulations.
Managing the environmental impact of non-recyclable materials.
1. Why is proper packaging important for lithium-ion batteries?
Proper packaging prevents short circuits, physical damage, and overheating, ensuring safety during storage and transport.
2. What materials are used for inner packaging?
Non-conductive materials like plastic bags or blister packs are commonly used to prevent electrical contact.
3. What are the regulatory requirements for shipping lithium-ion batteries?
Regulations include marking packages with UN codes (e.g., UN3480), using approved outer packaging, and adhering to IATA guidelines for air transport.
4. Can lithium-ion batteries be shipped by air?
Yes, but they must comply with strict IATA regulations, including weight limits and special labeling requirements.
5. What innovations are being made in battery packaging?
Innovations include sustainable materials, smart sensors for monitoring conditions, and modular designs for efficient shipping.
