Can You Heat Shrink a Capacitor?
In the world of electronics, capacitors play a crucial role in storing and releasing electrical energy. They are found in a wide range of applications, from simple circuits to complex electronic devices. As with any electronic component, protecting capacitors from environmental factors and mechanical stress is essential for ensuring their longevity and performance. One method that has gained popularity for this purpose is heat shrinking. But can you heat shrink a capacitor? This article will explore the concept of heat shrinking capacitors, the benefits, the materials involved, and best practices for effective application.
Heat shrinking involves the use of a polymer material that contracts when exposed to heat, forming a tight, protective seal around the object it covers. This method is widely used in various industries for insulation, protection, and bundling of wires and components. In the context of capacitors, heat shrinking can provide a robust barrier against moisture, dust, and mechanical damage.
Before diving into the specifics of heat shrinking capacitors, it’s essential to understand the benefits of this practice:
Heat shrink tube can protect capacitors from moisture, dust, and other contaminants that can degrade performance and lead to failure.
The shrink wrap adds a layer of protection against physical impacts, vibrations, and abrasion, which can be particularly important in mobile or industrial applications.
Heat shrink tubing provides excellent electrical insulation, reducing the risk of short circuits and ensuring safe operation.
Heat shrinking can also improve the appearance of a circuit by providing a uniform look and helping to organize components.
Several materials are commonly used for Heat Shrink Tubing, each offering unique properties and advantages. The choice of material depends on the specific application and requirements. Here are some of the most commonly used materials:
Properties:
Excellent electrical insulation
High shrink ratio (typically 2:1 or 3:1)
Resistant to chemicals and abrasion
Flexible and durable
Applications:
Polyolefin is widely used for heat shrinking capacitors due to its excellent insulating properties and versatility.
Properties:
Good electrical insulation
High shrink ratio
Cost-effective
Available in various colors
Applications:
PVC is commonly used for heat shrinking in consumer electronics and other applications where cost is a concern.
Properties:
High strength and durability
Excellent electrical insulation
Resistant to chemicals and moisture
High shrink ratio
Applications:

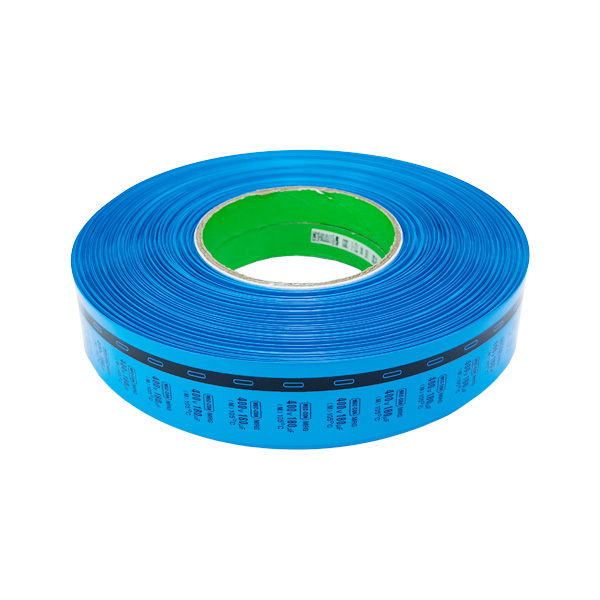

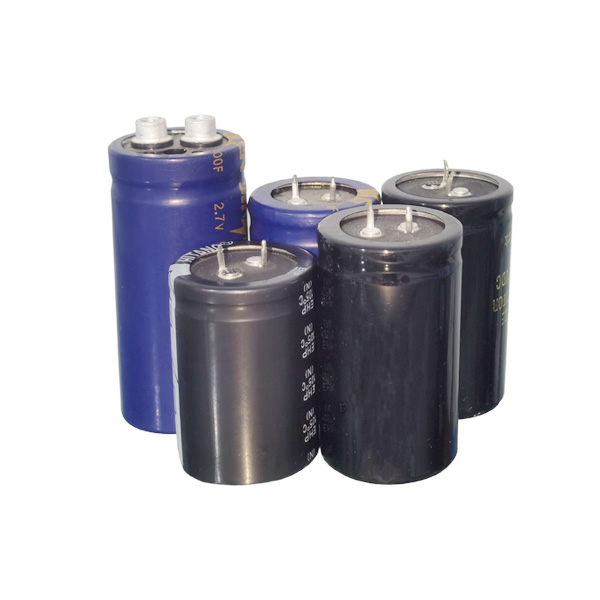

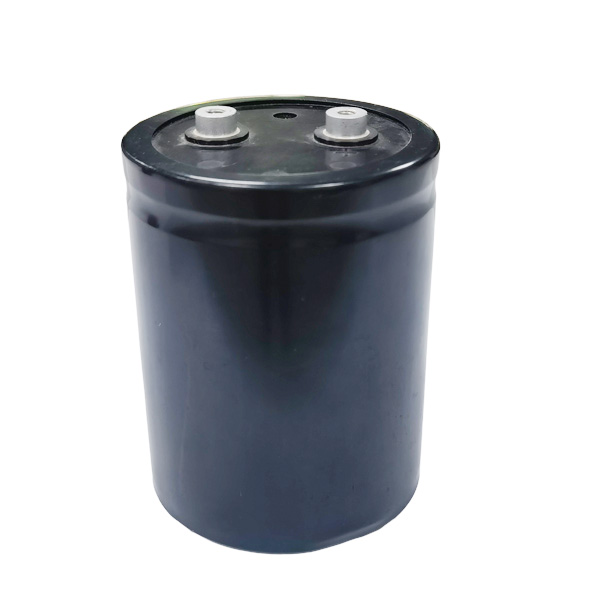

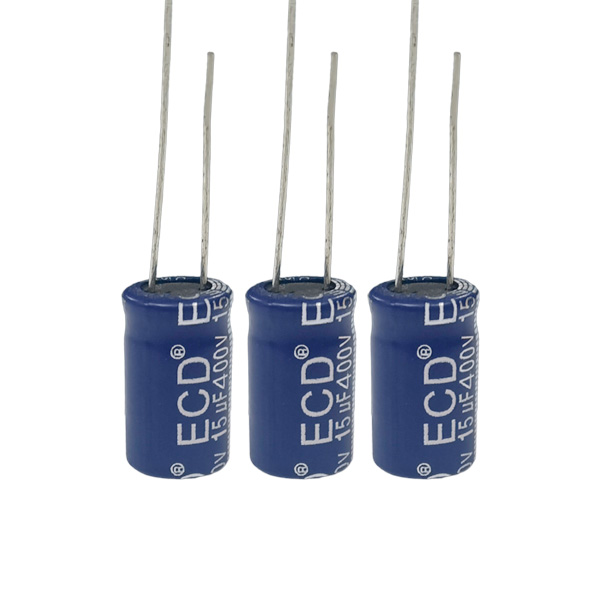

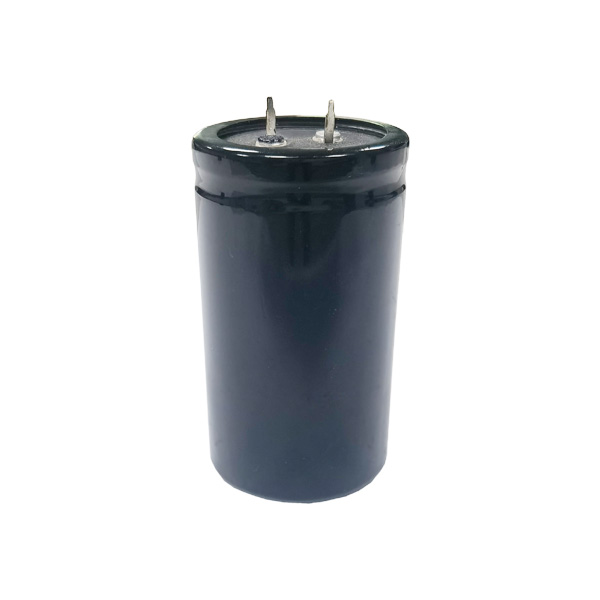

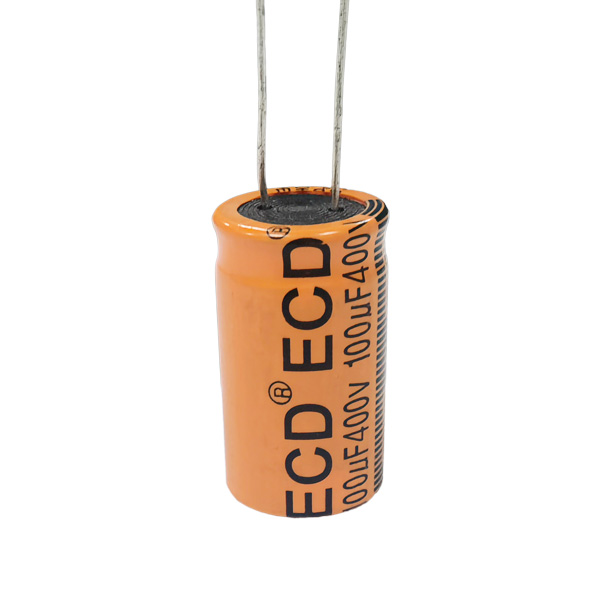

PET heat shrink tube is used for heat shrinking capacitors and battery cells in industrial and automotive applications, such as aluminum electrolytic capacitors, supercapacitors, 14500 battery cells, 18650 battery cells,21700 battery cells, 26700 battery cells, 30138battery cells,32650 battery cells, 40132 battery cells, 40135 battery cells, 46800 battery cells, 60138battery cells, and other large size cylindrical battery cells, providing robust protection against environmental factors.
Heat shrinking a capacitor involves several steps, from selecting the appropriate material to applying heat for a tight seal. Here is a step-by-step guide:
You will need the following materials and tools:
Heat shrink tubing (polyolefin, PVC, or PET)
Heat gun or hairdryer
Scissors or a utility knife
Ruler or measuring tape
Measure the length and diameter of the capacitor.
Cut a piece of heat shrink tubing that is slightly longer than the capacitor, allowing for some overlap at the ends.
Slide the cut piece of heat shrink tubing over the capacitor, ensuring it is centered.
Make sure the tubing covers the entire length of the capacitor, with a small overlap at each end.
Use a heat gun or hairdryer to evenly apply heat around the heat shrink tubing.
Start from one end and work your way to the other, ensuring the tubing shrinks uniformly and forms a tight seal around the capacitor.
Be careful not to overheat the capacitor, as excessive heat can damage the component and reduce its lifespan.
After shrinking, inspect the capacitor to ensure the wrap is tight and free of wrinkles or air bubbles.
Check for any exposed areas that may need additional wrapping or sealing.
To achieve the best results, follow these best practices:
Select the appropriate heat shrink material based on the type of capacitor and operating conditions. Polyolefin, PVC, and PET are commonly used materials with excellent insulating properties.
Ensure the heat shrink tubing has the correct shrink ratio to provide a snug fit without excessive stretching.
Use a heat gun or hairdryer to apply heat evenly around the tubing, avoiding hotspots that can damage the capacitor.
Be cautious not to overheat the capacitor, as excessive heat can reduce its lifespan and performance.
After shrinking, inspect the capacitor for any defects, such as wrinkles, air bubbles, or exposed areas, and address them as needed.
Heat shrink tubing is used in various applications to protect and insulate capacitors:
Heat shrink sleeve tube is commonly used in consumer electronics, such as smartphones, laptops, and portable devices, to protect capacitors from environmental factors and mechanical damage.
In automotive electronics, heat shrink tubing is used to insulate and protect capacitors, ensuring their reliability and safety in harsh conditions.
Heat shrink tubing is used in industrial equipment to protect capacitors from moisture, dust, and mechanical stress.
In medical devices, heat shrink tubing is used to insulate and protect capacitors, ensuring their reliability and safety.
Heat shrinking capacitors is an effective method for insulating and protecting them from environmental factors, mechanical damage, and electrical short circuits. By understanding the benefits, materials, methods, and best practices for heat shrinking capacitors, you can ensure their optimal performance and longevity. Whether you are working with consumer electronics, automotive applications, industrial equipment, or medical devices, heat shrink tubing provides a robust solution for capacitor insulation and protection. By following the guidelines outlined in this article, you can confidently apply heat shrink tubing to your capacitors, enhancing their durability and reliability in various applications. About the pet heat shrink wrap materials, you can contact CYCT Changyuan Changtong New Materials for more product information, it is a top-ranking manufacturer of PET Heat Shrink Tube in China, with over 20 years of experience.
