What is a Cell in a Battery? Understanding the Fundamental Unit of Energy Storage
Batteries are ubiquitous in modern life, powering everything from smartphones to electric vehicles. At the heart of every battery lies a fundamental unit known as a “cell.” Understanding what a cell is, how it functions, and its role in energy storage is crucial for anyone interested in electronics, renewable energy, or simply the technology that powers our daily lives. This article will delve into the concept of a battery cell, its components, types, and significance in the broader context of battery technology.
A battery cell is the smallest electrochemical unit within a battery that converts chemical energy into electrical energy through electrochemical reactions. Each cell consists of two electrodes—an anode (negative electrode) and a cathode (positive electrode)—separated by an electrolyte. When a battery is connected to an external circuit, a chemical reaction occurs within the cell, allowing electrons to flow from the anode to the cathode, generating electric current.
The anode is the negative electrode of the cell where oxidation occurs. During discharge, the anode releases electrons, which flow through the external circuit to the cathode. Common materials used for anodes include graphite, lithium, and various metal oxides.
The cathode is the positive electrode where reduction takes place. It receives electrons from the external circuit during discharge. The materials used for cathodes vary depending on the type of battery but often include lithium cobalt oxide, nickel manganese cobalt, or lead dioxide.
The electrolyte is a conductive medium that allows ions to move between the anode and cathode. It can be in liquid, gel, or solid form, depending on the battery type. The electrolyte facilitates the flow of ions, which is essential for the electrochemical reactions that generate electricity.
The separator is a porous membrane that physically separates the anode and cathode while allowing ions to pass through. It prevents short circuits by ensuring that the electrodes do not come into direct contact with each other.
These are conductive materials that collect and transport electrons to and from the electrodes. They are typically made of metals like copper (for the anode) and aluminum (for the cathode).
Battery cells come in various types, each designed for specific applications and performance characteristics. Here are some of the most common types of battery cells:
These are primary (non-rechargeable) cells commonly used in household batteries (AA, AAA, etc.). They use zinc as the anode and manganese dioxide as the cathode, with an alkaline electrolyte.
Often used in automotive batteries, lead-acid cells consist of lead dioxide (cathode) and sponge lead (anode) with a sulfuric acid electrolyte. They are rechargeable and known for their high current capacity.

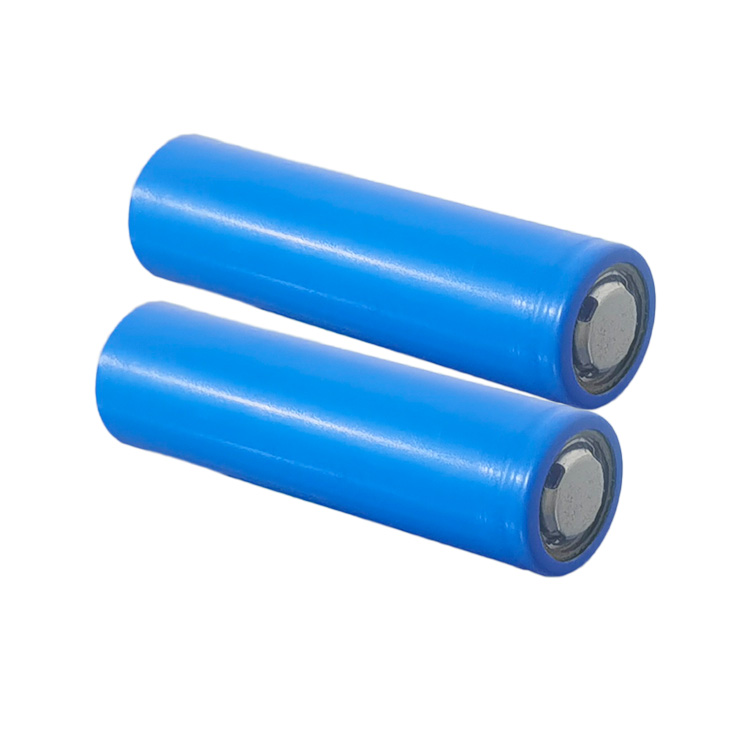

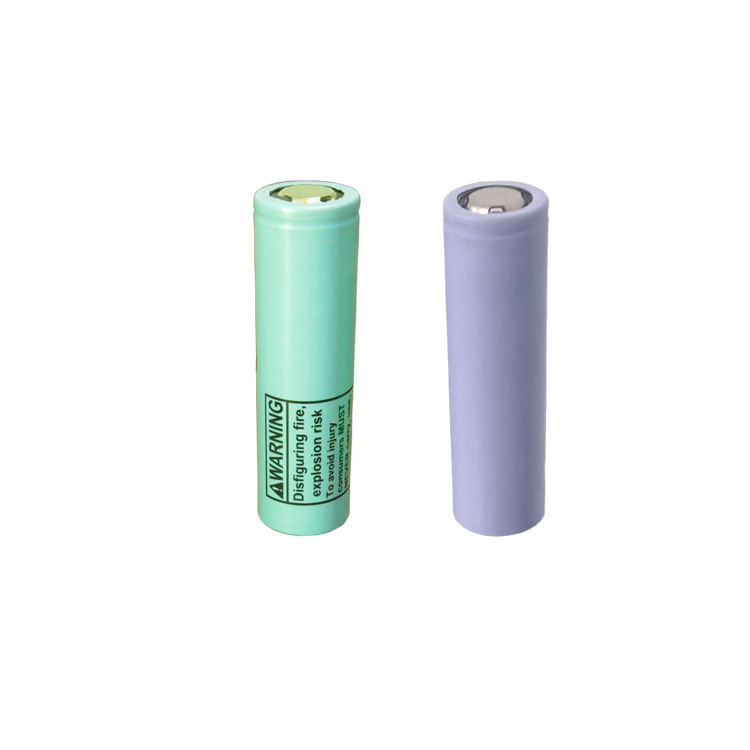

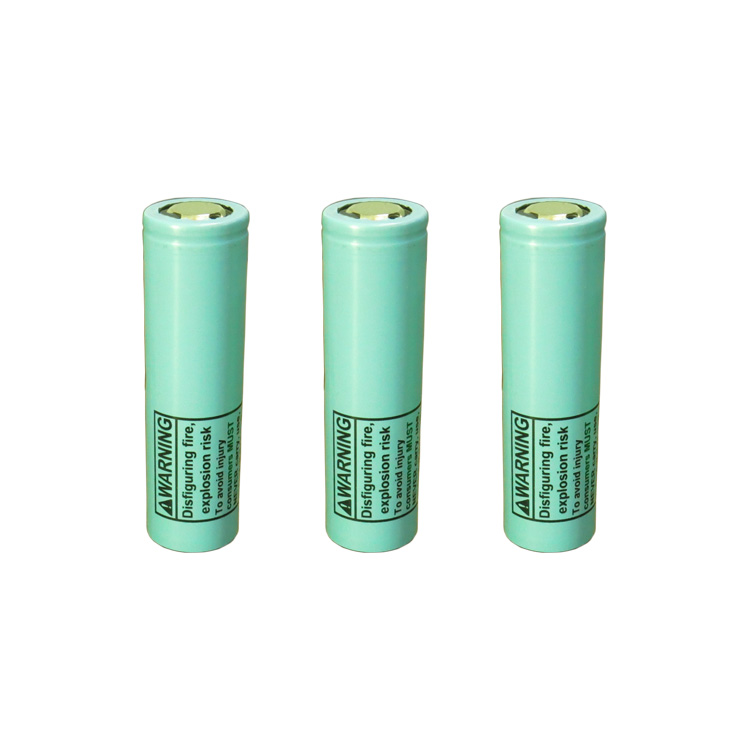

These rechargeable cells are widely used in portable electronics and electric vehicles, such as 10400 battery cell、14500 battery cell、16340 battery cell、18650 battery cell、21700 battery cell、26650 battery cell、32650 battery cell, 4680 battery, etc. They utilize lithium compounds for the cathode and graphite for the anode, with a lithium salt electrolyte. Lithium-ion cells are known for their high energy density and long cycle life.
NiCd cells are rechargeable batteries that use nickel oxide hydroxide (cathode) and cadmium (anode). They are known for their robustness and ability to deliver high discharge rates but have been largely replaced by lithium-ion technology due to environmental concerns.
These are also rechargeable batteries that use nickel oxide (cathode) and a hydrogen-absorbing alloy (anode). NiMH cells offer higher capacity than NiCd cells and are commonly used in hybrid vehicles and consumer electronics.
An emerging technology, solid-state batteries use solid electrolytes instead of liquid ones. They promise higher energy densities and improved safety but are still in the developmental stage.
The performance of a battery is largely determined by the characteristics of its cells. Key performance metrics include:
The voltage of a cell is determined by the materials used for the anode and cathode. For example, a typical lithium-ion cell has a nominal voltage of about 3.7 volts.
Capacity refers to the amount of charge a cell can store, usually measured in ampere-hours (Ah) or milliampere-hours (mAh). Higher capacity cells can store more energy, allowing devices to run longer between charges.
This metric indicates how much energy a cell can store relative to its weight or volume, typically expressed in watt-hours per kilogram (Wh/kg) or watt-hours per liter (Wh/L). Higher energy density means lighter and more compact batteries.
Cycle life refers to the number of charge and discharge cycles a cell can undergo before its capacity significantly degrades. Lithium-ion cells typically have a cycle life of 500 to 1,500 cycles, depending on the specific chemistry and usage conditions.
This is the rate at which a cell loses its charge when not in use. Lower self-discharge rates are desirable for long-term storage applications.
Understanding the role of cells in batteries is crucial for several reasons:
Engineers and researchers can optimize battery performance by selecting appropriate materials and designs for the cells. This is particularly important in the development of new battery technologies, such as solid-state batteries.
Different applications require different types of cells. For instance, electric vehicles benefit from high-capacity lithium-ion cells, while remote controls may only need alkaline cells.
Knowledge of cell chemistry and design is essential for ensuring the safety of batteries. Overcharging, overheating, or physical damage can lead to cell failure and, in some cases, catastrophic events like fires or explosions.

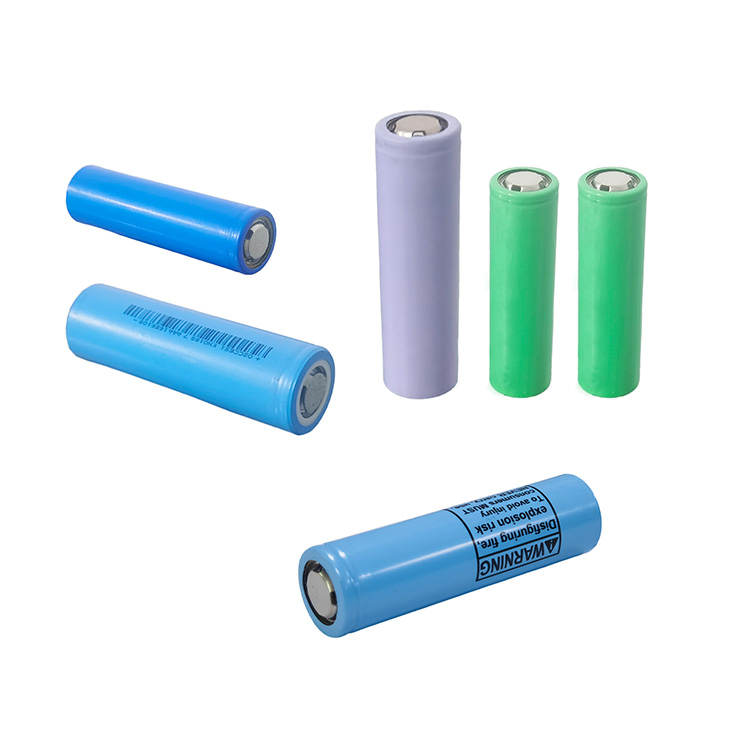

Understanding the materials used in battery cells can inform recycling and disposal practices, helping to mitigate the environmental impact of battery production and waste. For example, you can use recycled, environmentally friendly PET Heat Shrink Tubing for a battery cell insulation sleeve.
In summary, a cell in a battery is the fundamental unit responsible for converting chemical energy into electrical energy. Comprising an anode, cathode, electrolyte, separator, and current collectors, each cell plays a vital role in the overall performance and safety of the battery. With various types of cells available, each designed for specific applications, understanding their characteristics is essential for anyone involved in electronics, renewable energy, or battery technology. As advancements continue in battery design and materials, the importance of cells will only grow, shaping the future of energy storage and usage in our increasingly electrified world.
