How Do You Protect A Lithium-Ion Battery?

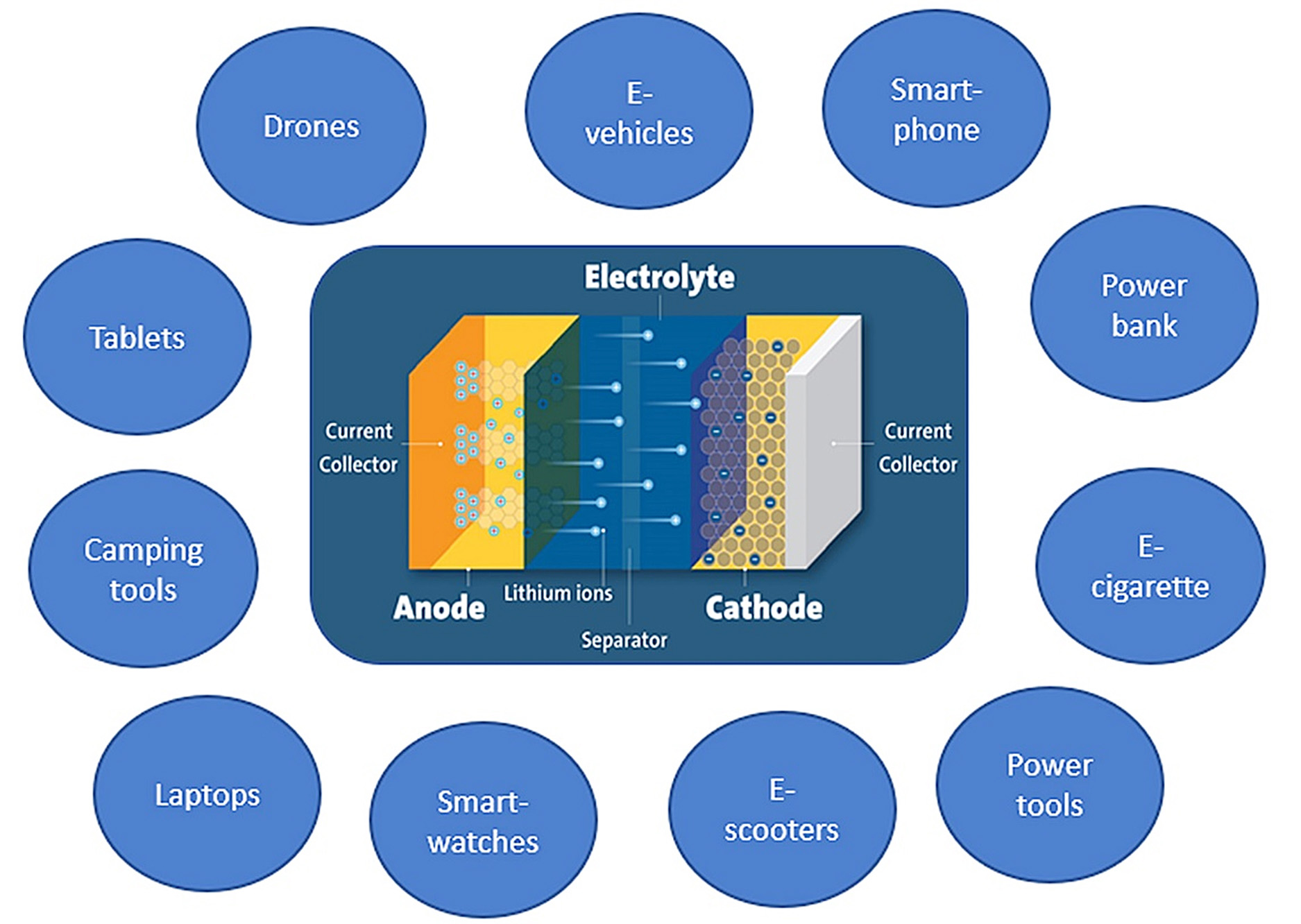

Lithium-ion (Li-ion) batteries are ubiquitous in modern devices due to their high energy density and rechargeability. However, they pose significant safety risks if not properly managed. Protecting Li-ion batteries involves integrating safety mechanisms to prevent overcharging, over-discharging, and other hazardous conditions. This article delves into the methods and technologies used to safeguard Li-ion batteries, ensuring their reliable and safe operation.

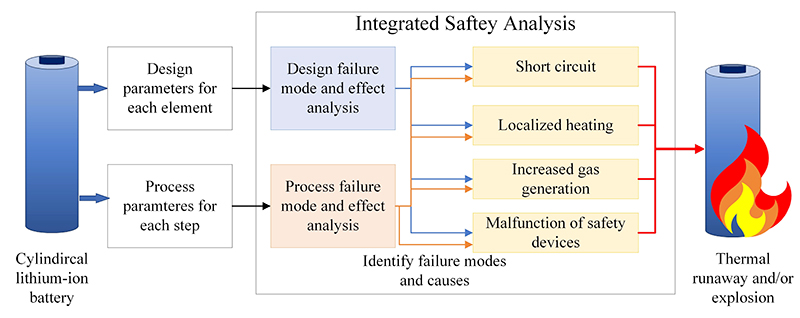

Understanding Li-ion Battery Risks

Li-ion batteries can be dangerous if mishandled. Key risks include:

• Overcharging: Exceeding the maximum voltage can lead to overheating and fires.

• Over-discharging: Deep discharging damages the battery and reduces its lifespan.

• Short Circuits: Uncontrolled current flow can cause explosions or fires.

• Thermal Runaway: High temperatures can trigger a chain reaction leading to battery failure.

Protection Mechanisms for Li-ion Batteries

1.Protection Circuit Boards (PCBs)

PCBs are crucial for ensuring Li-ion battery safety. They include components like:

• MOSFETs: Switches that control charge/discharge currents.

• Voltage Monitoring ICs: Detect overcharge and over-discharge conditions.

• Current Sensors: Monitor excessive current flow.

• Thermal Sensors: Prevent overheating.

2.Battery Management Systems (BMS)

In multi-cell packs, BMS provides centralized control over charging, discharging, and balancing. It ensures that all cells operate within safe voltage ranges.

BMS DiagramSchematic of a Battery Management System.

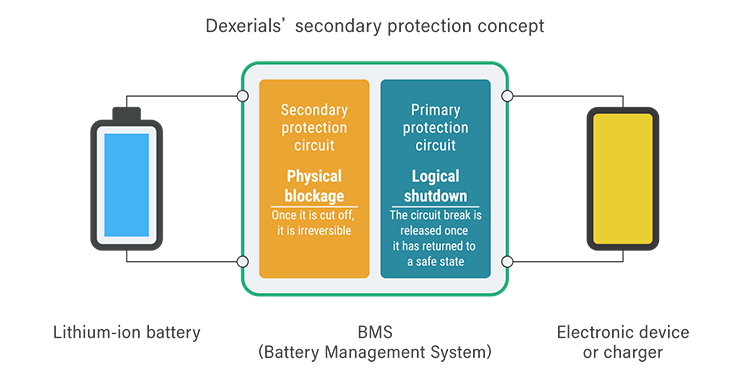

3.Secondary Protection Elements

• Self-Control Protectors (SCPs): Provide additional safety by preventing overcharge and overcurrent conditions.

• PTC (Positive Temperature Coefficient) Devices: Interrupt current flow during overheating.

• CID (Circuit Interrupt Device): Opens the circuit at high internal pressures.

Designing a Protection Circuit

A well-designed protection circuit should:

• Handle Current and Voltage Requirements: Ensure the circuit can manage the battery's specifications.

• Integrate Fail-Safes: Include thermal cutoffs and other safety features.

• Use Durable Materials: Resist environmental stressors like moisture and extreme temperatures.

• Be Compact: Fit within the battery casing without compromising energy density.

Best Practices for Handling Li-ion Batteries

• Store in Ventilated Areas: Avoid extreme temperatures and ignition sources.

• Use Certified Chargers: Prevent overcharging and ensure compatibility.

• Avoid Physical Damage: Handle batteries with care to prevent internal shorts.

Frequently Asked Questions

1.What are the primary functions of a Li-ion battery protection circuit?

The primary functions include overcharge protection, over-discharge protection, overcurrent protection, and short circuit protection.

2.Can I use a Li-ion battery without a protection circuit?

No, it is highly risky. Protection circuits are essential for preventing hazardous conditions like fires or explosions.

3.How do I identify if a Li-ion battery has a protection circuit?

Protected batteries often have labels indicating "Protected" or "PCB" and are slightly longer than unprotected ones.

4.What is the role of a BMS in Li-ion battery safety?

A BMS ensures that all cells in a multi-cell pack operate within safe voltage limits and balances cell voltages.

5.Can secondary protection elements like SCPs replace primary protection circuits?

No, SCPs provide additional safety but should not replace primary protection mechanisms.
