What Is an Aluminum Electrolytic Capacitor Sleeve?
Aluminum electrolytic capacitors are a cornerstone of modern electronic circuits, offering high capacitance in a compact size. A critical yet often overlooked component of these capacitors is the sleeve—a protective covering that ensures their safe and efficient operation. This article explores the role, materials, and importance of the aluminum electrolytic capacitor sleeve, along with its applications and maintenance tips.

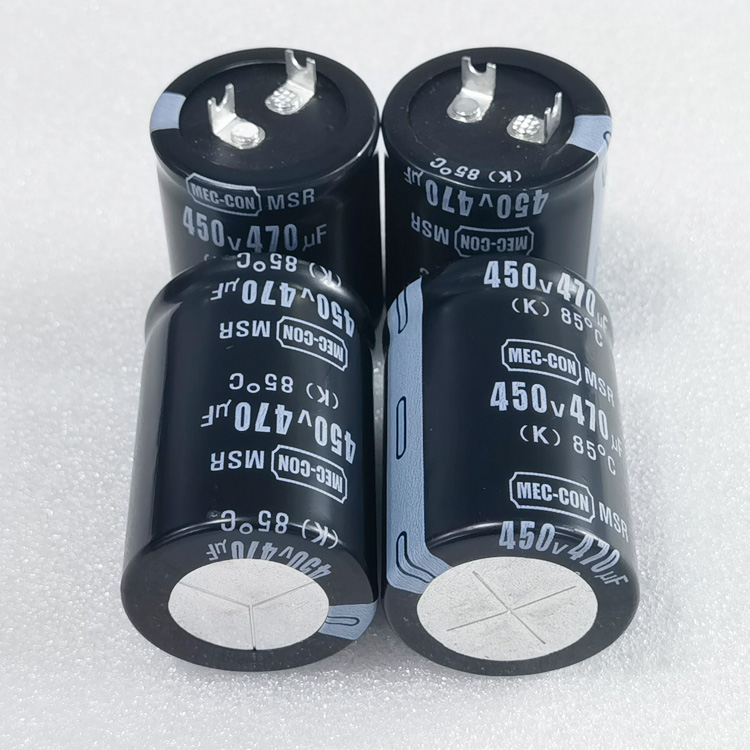

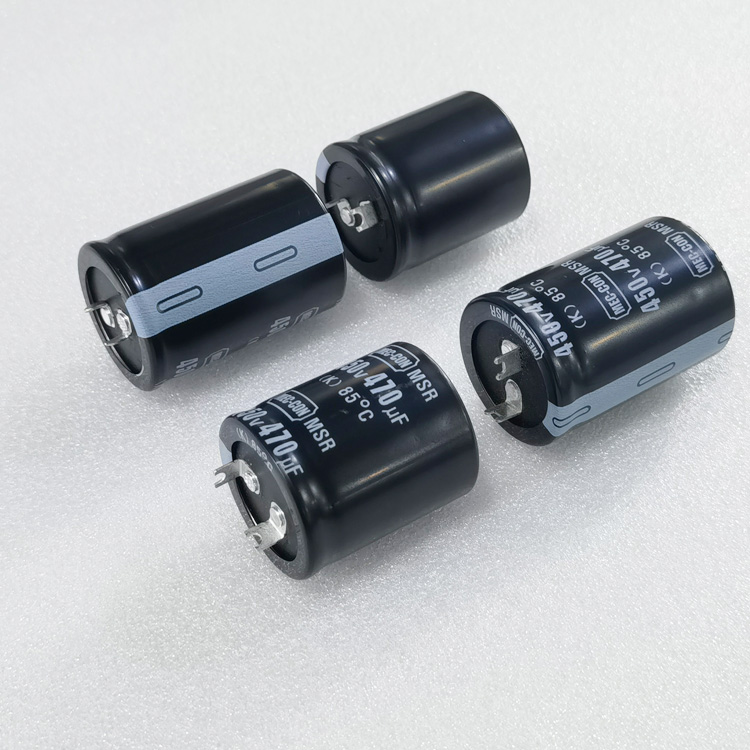

An aluminum electrolytic capacitor sleeve is a thin, insulating layer typically made of heat-shrinkable plastic that encases the capacitor’s cylindrical body. While it may appear to be a simple cosmetic covering, the sleeve serves several vital purposes, including insulation, protection, and identification.
One of the primary roles of the sleeve is to provide electrical insulation. The aluminum casing of the capacitor is conductive and could potentially cause short circuits if it comes into contact with other conductive components. The sleeve acts as a barrier, ensuring the capacitor’s safe integration into the circuit.
This insulation is especially important in high-density circuit boards, where components are closely packed together. The sleeve minimizes the risk of electrical faults and enhances the overall safety of the device.
The sleeve protects the capacitor’s metallic body from physical damage. Scratches, dents, or other types of mechanical stress can compromise the capacitor’s structural integrity and lead to premature failure. The sleeve acts as a shield against:
Abrasion during handling or assembly.
Minor impacts during operation.
External environmental factors like moisture and dust.
By maintaining the physical integrity of the capacitor, the sleeve helps extend its operational lifespan.
Aluminum is susceptible to corrosion when exposed to moisture or harsh environmental conditions. The capacitor sleeve acts as a protective layer, shielding the aluminum casing from direct exposure to corrosive elements. This is particularly critical in industrial or outdoor applications where environmental stress can be a significant factor.

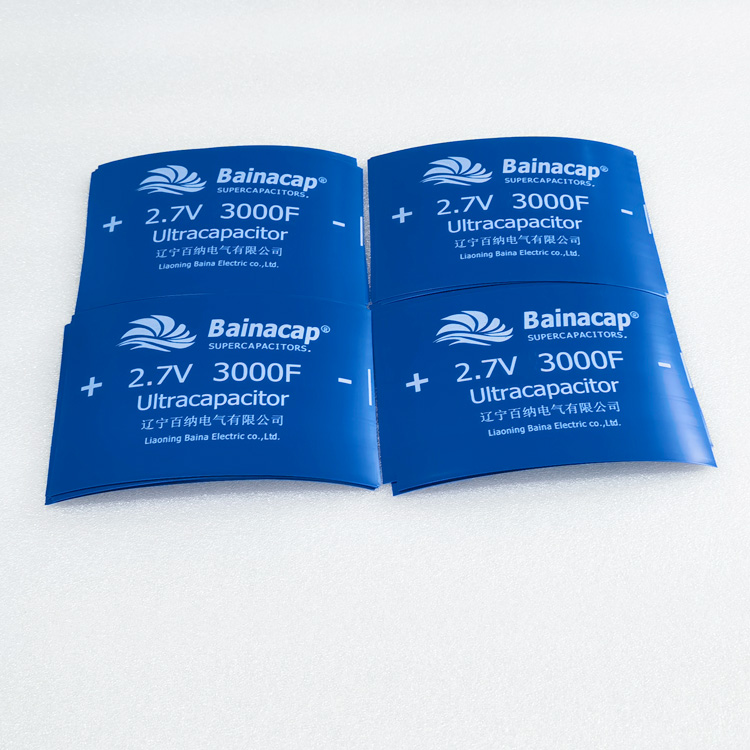

The sleeve also serves as a medium for displaying important information about the capacitor, such as:
Capacitance value.
Voltage rating.
Temperature range.
Manufacturer details.
Series code or model number.
This labeling makes it easier to identify the capacitor’s specifications, ensuring correct selection and use in electronic circuits.
In cases of capacitor failure, the sleeve can contain some of the damage, such as preventing debris or electrolyte leakage from spreading. While not a complete safeguard against catastrophic failures, the sleeve adds an extra layer of safety by mitigating minor ruptures or leaks.

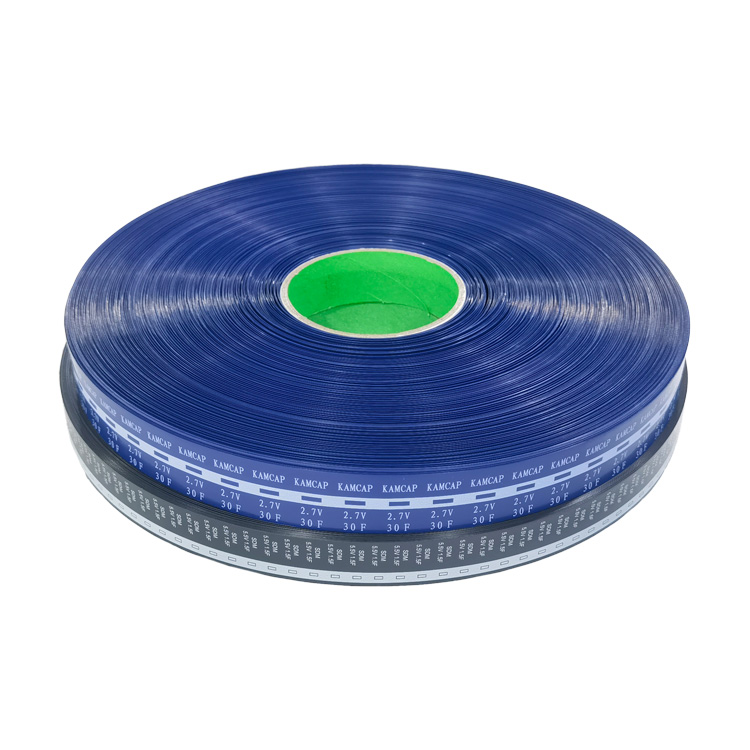

The most common material for aluminum electrolytic capacitor sleeves is heat-shrinkable PVC (polyvinyl chloride) plastic. This material is chosen for its:
Excellent electrical insulation properties.
Flexibility and ease of application.
Resistance to heat and environmental factors.
Cost-effectiveness.
In specific applications, other materials like PET (polyethylene terephthalate) or specialized polymers may be used for enhanced durability or resistance to extreme conditions.
Capacitor sleeves are critical in a variety of applications, ensuring the reliable performance of aluminum electrolytic capacitors across different industries:
• Power Supplies: Insulation and protection are vital in power supply circuits to prevent short circuits and enhance reliability.
• Audio Equipment: Capacitors in audio systems rely on sleeves to maintain stability and minimize interference.
• Industrial Equipment: In harsh environments, sleeves shield capacitors from mechanical and environmental stresses.
• Consumer Electronics: From televisions to computers, capacitor sleeves contribute to safe and efficient operation.
While capacitor sleeves are durable, they can experience wear and tear over time.
Cracks or Tears: Prolonged exposure to heat, UV light, or physical stress can damage the sleeve, compromising its protective properties.
Discoloration: High temperatures or chemical exposure may cause discoloration, indicating potential degradation.
Peeling or Shrinkage: Aging or improper application can lead to peeling or excessive shrinkage, reducing the sleeve’s effectiveness.
Regular Inspection: Periodically inspect capacitors for signs of sleeve damage, such as cracks, discoloration, or peeling.
Avoid Overheating: Ensure the circuit operates within the specified temperature range to prevent thermal damage to the sleeve.
Rewrapping: If the sleeve is damaged, carefully remove it and replace it with a new heat-shrinkable sleeve of the appropriate size and material.
The aluminum electrolytic capacitor sleeve is more than just a cosmetic feature; it is a critical component that ensures the capacitor’s reliability and safety. By providing insulation, protection, and labeling, the sleeve enhances the functionality of capacitors in various electronic systems.
Understanding the importance of the aluminum electrolytic capacitor sleeve helps designers, engineers, and technicians appreciate its role in safeguarding electronic circuits. By selecting high-quality capacitors with durable sleeves and maintaining them properly, you can ensure optimal performance and longevity in any application.
