Product description:
CT-U1041 is a two-component polyurethane structural adhesive. This product has moderate viscosity, is easy to use, and has a volume ratio of 1:1. After curing, this product has excellent water resistance, high and low temperature impact resistance, impact resistance and durability; it is mildew-proof, non-toxic and non-corrosive, and is a safe and environmentally friendly polyurethane structural adhesive.
Product features:
1. Moderate viscosity, easy to use, can be manually filled with glue or automatically filled with glue dispenser;
2. High bonding strength, especially for PET film and aluminum plate;
3. Good durability, no obvious performance attenuation after long-term high temperature and high humidity aging;
4. Flame retardant grade reaches UL94-V0;
5. Excellent high and low temperature impact resistance;
6. Excellent water resistance and waterproof sealing performance after curing.
Specifications:

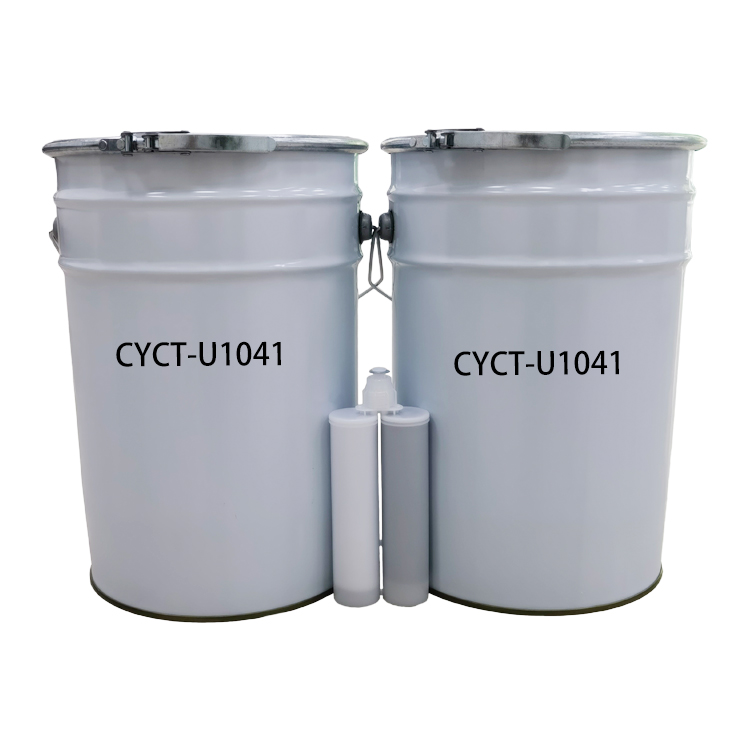

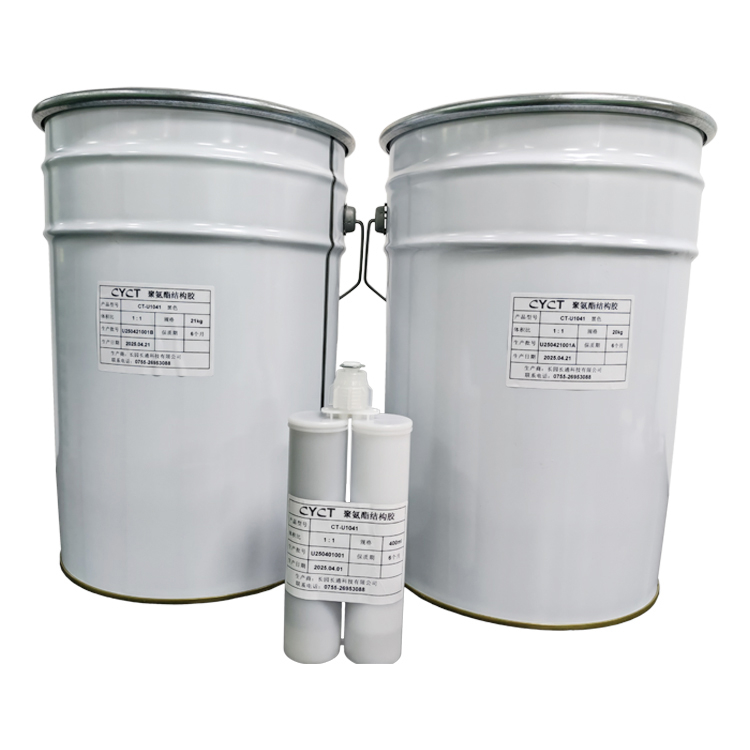

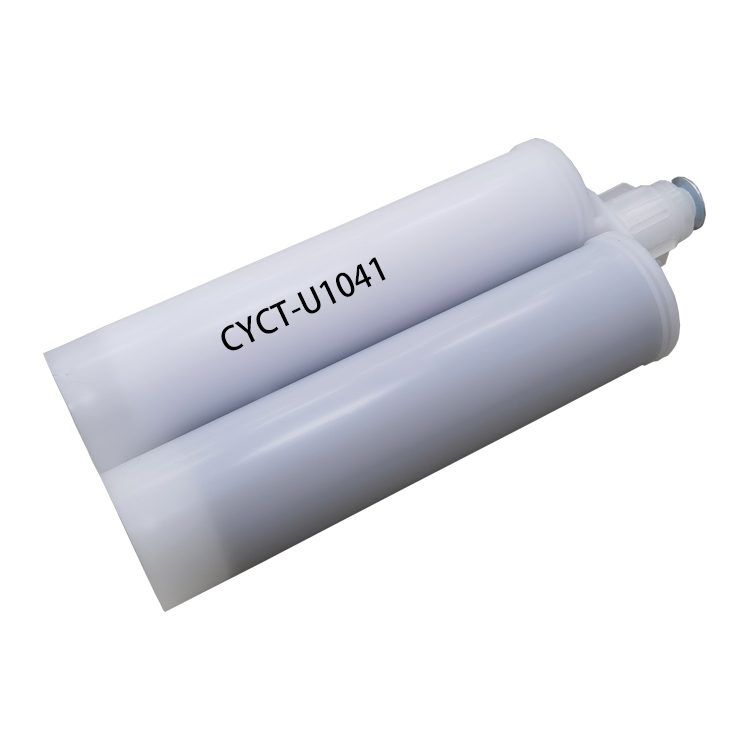

1. 400ml/piece;
2. Component A: 20kg/barrel, component B: 21kg/barrel;
3. Component A: 220kg/barrel, component B: 233kg/barrel;
4. Can be customized according to customer needs.
Storage and transportation:
1. Store in a cool, dry and dark place at 5~25℃, sealed and preserved;
2. This product is a non-flammable and explosive material and can be transported as a general chemical. During transportation, it should be prevented from exposure, extrusion, and collision to prevent leakage;
3. The shelf life of this product is 6 months.
Application:
It is mainly suitable for structural bonding of new energy battery modules, and can also be used for self-adhesion or mutual bonding of polar materials such as metals, ceramics, ABS, PU, and PVC.
Item | Unit | Performance | Test method |
Before Curing | Appearance | A component | / | Black-gray | Visual |
B component | / | White | Visual |
Viscosity | A component | MPa·s | 50000±20000 | GB/T 2794-2022 |
B component | MPa·s | 60000±20000 | GB/T 2794-2022 |
Density | A component | g/cm3 | 1.34±0.05 | GB/T 13354-1992 |
B component | g/cm3 | 1.42±0.05 | GB/T 13354-1992 |
Mixing ratio | A:B | 1 ： 1 | Mass Ratio |
Operation time 25℃ | h | 1 | /
|
Curing time 25℃ | h | 24 | / |
After Curing | Appearance | / | Gray-white | Visual |
Density | g/cm3 | 1.38±0.05 | GB/T 4472-2011 |
Hardness | Shore D | 60±5 | GB/T 531.1-2008 |
Body tensile strength | MPa | ≥12 | GB/T 528-2009 |
Elongation at break | % | ≥120 | GB/T 528-2009 |
Volume resistivity | Ω·cm | ≥1.0x1012 | GB/T 1692-2008 |
| Thermal conductivity | W/m · K | 0.4 | ASTM D5470 |
| Flame retardant grade |
| 0.6 |
|
Tensile shear strength AI-AI | MPa | ≥13 |
|
