What Are the Differences Between Radial, Snap-In, and Screw Electrolytic Capacitors? A Comprehensive Guide
Electrolytic capacitors are widely used in electronic circuits for their ability to store large amounts of electrical energy in a relatively small volume. They are particularly valued for their high capacitance values and are commonly found in power supply circuits, audio equipment, and various consumer electronics. Among the different types of electrolytic capacitors, radial, snap-in, and screw types are the most prevalent. This article will explore the differences between these three types of electrolytic capacitors, their construction, applications, advantages, and considerations for use.
Before diving into the specifics of radial, snap-in, and screw electrolytic capacitors, it’s essential to understand what electrolytic capacitors are and how they function. An electrolytic capacitor consists of two conductive plates separated by an electrolyte, which serves as the dielectric material. This construction allows electrolytic capacitors to achieve high capacitance values, making them suitable for applications requiring significant energy storage.

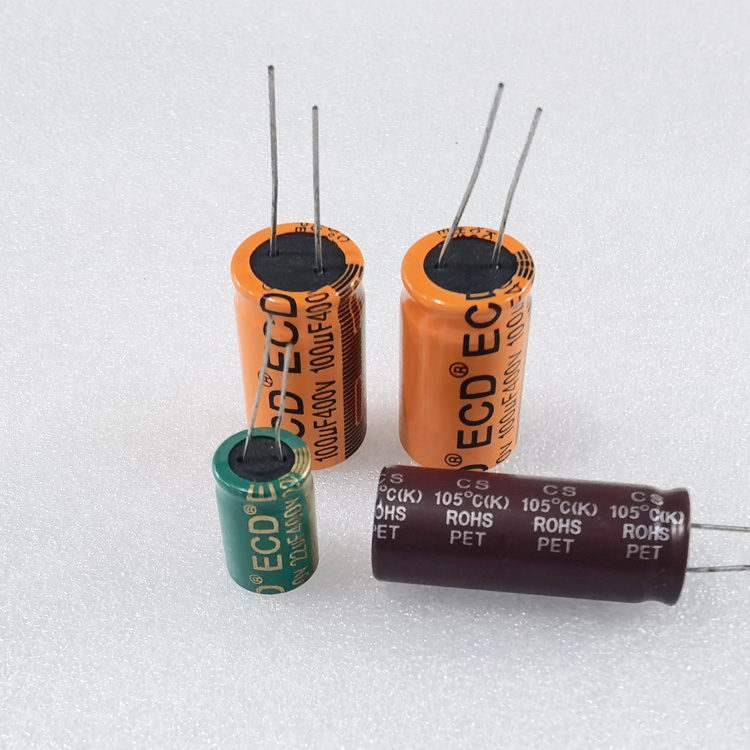

Overview: Radial electrolytic capacitors are characterized by their leads that extend from the bottom of the capacitor, allowing for easy insertion into printed circuit boards (PCBs). They are typically cylindrical in shape and are widely used in various electronic applications.
Construction:
Shape: Cylindrical with leads coming out from the same end.
Mounting: Designed for through-hole mounting on PCBs.
Capacitance Range: Generally available in capacitance values ranging from a few microfarads (µF) to several thousand microfarads.
Applications:
Commonly used in power supply circuits, audio amplifiers, and consumer electronics.
Suitable for applications where space is limited, as they can be mounted vertically or horizontally.
Advantages:
Compact Size: Radial capacitors are often smaller than other types, making them ideal for space-constrained designs.
Ease of Installation: The radial leads facilitate straightforward PCB assembly.
Cost-Effective: Generally less expensive than snap-in or screw types, making them a popular choice for mass-produced electronics.
Considerations:
Voltage Ratings: Ensure that the voltage rating of the capacitor is appropriate for the application to prevent failure.
Polarity: Electrolytic capacitors are polarized, meaning they must be connected in the correct orientation in the circuit.

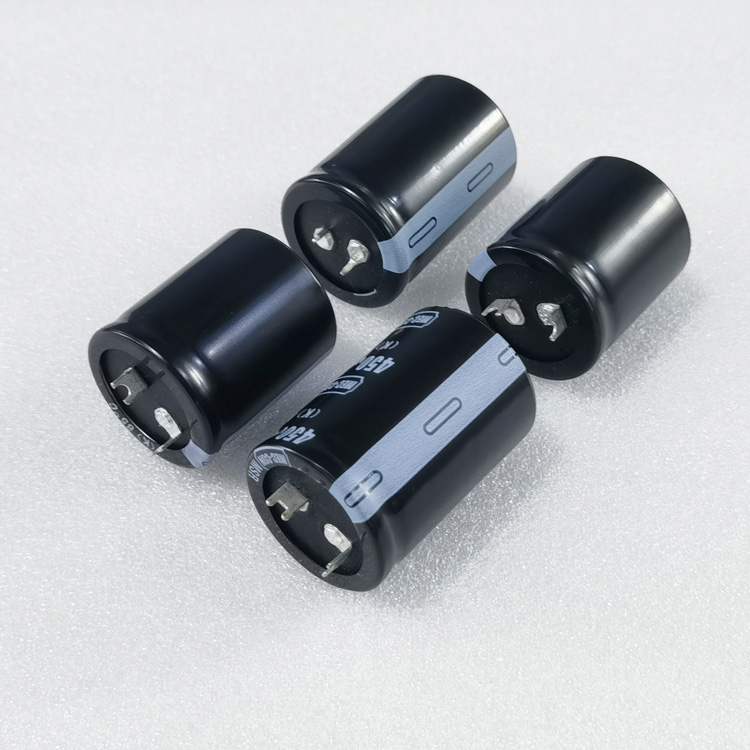

Overview: Snap-in electrolytic capacitors are designed with leads that snap into place on the PCB, providing a secure connection. They are typically larger than radial capacitors and are used in applications requiring higher capacitance values.
Construction:
Shape: Cylindrical with leads that extend from the bottom and are designed to snap into the PCB.
Mounting: Primarily used for through-hole mounting but with a more secure fit than radial types.
Capacitance Range: Available in higher capacitance values, often ranging from several hundred microfarads to tens of thousands of microfarads.
Applications:
Commonly found in power supply circuits, industrial equipment, and high-performance audio systems.
Suitable for applications where high capacitance and stability are required.
Advantages:
Secure Connection: The snap-in design provides a more stable connection, reducing the risk of disconnection during operation.
Higher Capacitance: Snap-in capacitors can handle larger capacitance values, making them ideal for demanding applications.
Thermal Stability: Often designed to operate effectively in higher temperature environments.
Considerations:
Size: Snap-in capacitors are generally larger than radial types, which may limit their use in compact designs.
Polarity: Like all electrolytic capacitors, snap-in types are polarized and must be installed correctly.

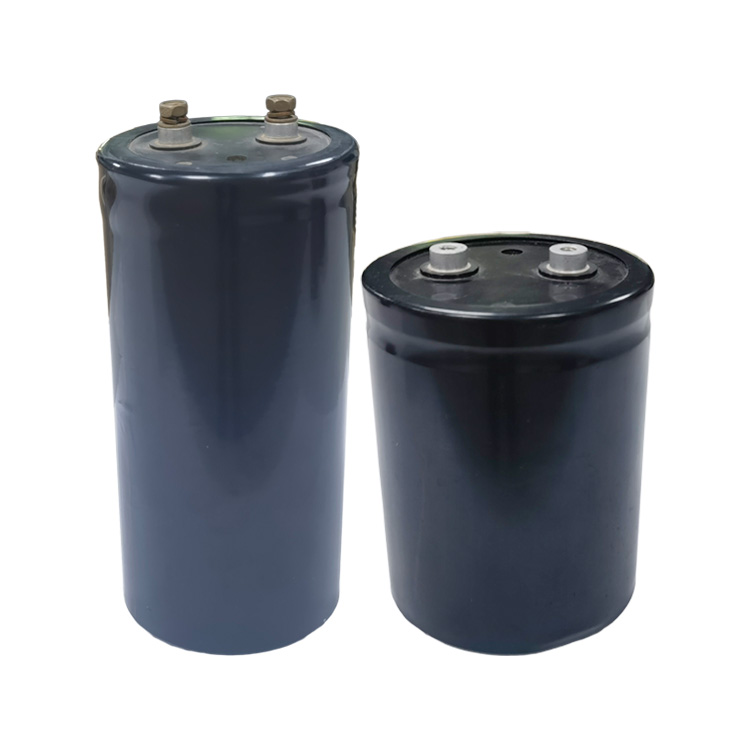

Overview: Screw electrolytic capacitors are designed with a threaded metal stud or screw terminal for mounting. This type of capacitor is typically used in applications requiring high capacitance and robust mechanical connections.
Construction:
Shape: Cylindrical with a screw terminal for mounting.
Mounting: Designed for panel mounting, often used in industrial applications.
Capacitance Range: Available in very high capacitance values, often exceeding tens of thousands of microfarads.
Applications:
Commonly used in power electronics, industrial machinery, and energy storage systems.
Suitable for applications where high capacitance and durability are essential.
Advantages:
Robust Connection: The screw terminal provides a secure and reliable connection, ideal for high-vibration environments.
High Capacitance: Capable of handling very high capacitance values, making them suitable for demanding applications.
Versatile Mounting: Can be mounted in various orientations, providing flexibility in design.
Considerations:
Size and Weight: Screw electrolytic capacitors are generally larger and heavier than radial and snap-in types, which may limit their use in compact designs.
Installation: Requires more space for installation due to the screw terminal, which may not be suitable for all applications.

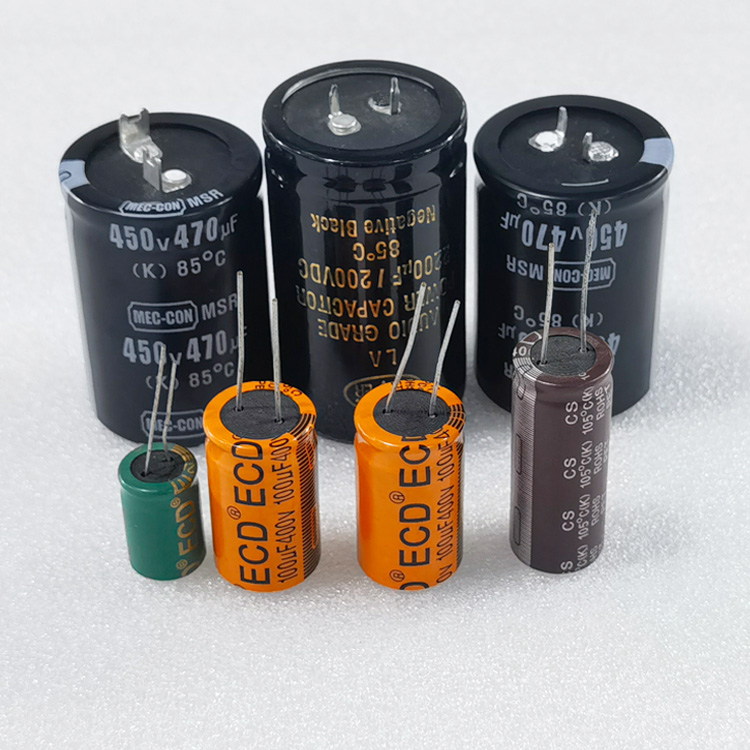

Feature Radial Electrolytic Capacitors Snap-In Electrolytic Capacitors Screw Electrolytic Capacitors
Lead Configuration Leads extend from the bottom Snap-in leads for secure fit Screw terminal for mounting
Mounting Type: Through-hole, Through-hole, Panel mounting
Capacitance Range: Low to moderate, Moderate to high, High
Size: Compact, Larger than radial, Largest
Applications General electronics Power supplies, industrial Industrial, energy storage
Connection Stability Moderate High Very high
Understanding the differences between radial, snap-in, and screw electrolytic capacitors is essential for selecting the right component for your electronic applications. Each type has its unique construction, advantages, and ideal use cases. Radial capacitors are compact and cost-effective, making them suitable for general electronics. Snap-in capacitors provide secure connections and higher capacitance, ideal for power supply applications. Screw electrolytic capacitors offer robust connections and high capacitance, making them perfect for industrial and energy storage applications.
When designing electronic circuits, it is crucial to consider factors such as capacitance, voltage rating, size, and mounting requirements to ensure optimal performance and reliability. By understanding these differences, engineers and designers can make informed decisions that enhance the functionality and longevity of their electronic devices.
