Silicone potting compounds are widely used in electronics to protect components from moisture, dust, and mechanical stress. However, there are times when you may need to remove this compound for repairs or modifications. This article will guide you through various methods to effectively remove silicone potting compound, ensuring that you can safely access the underlying components without causing damage.

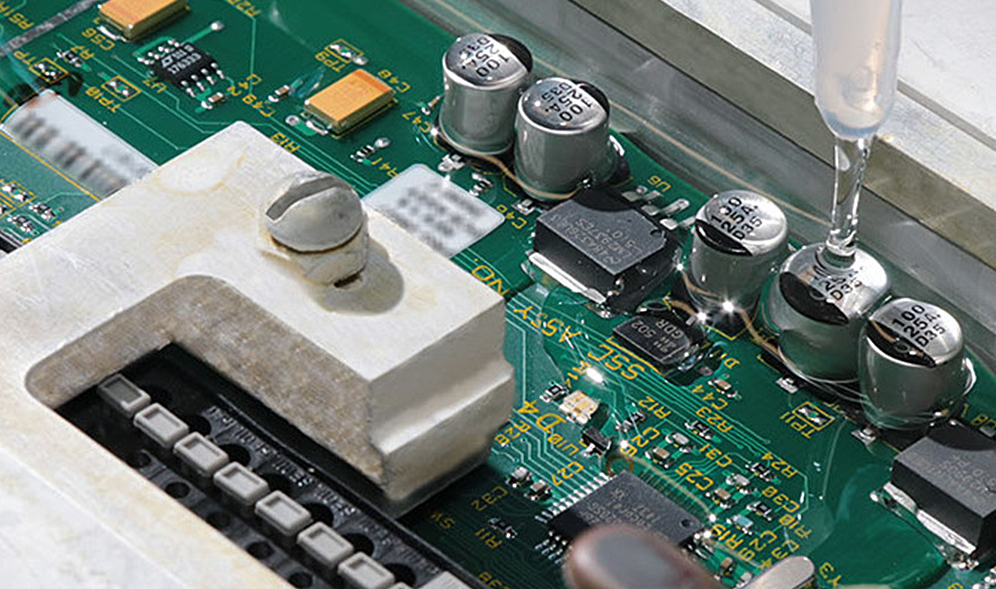

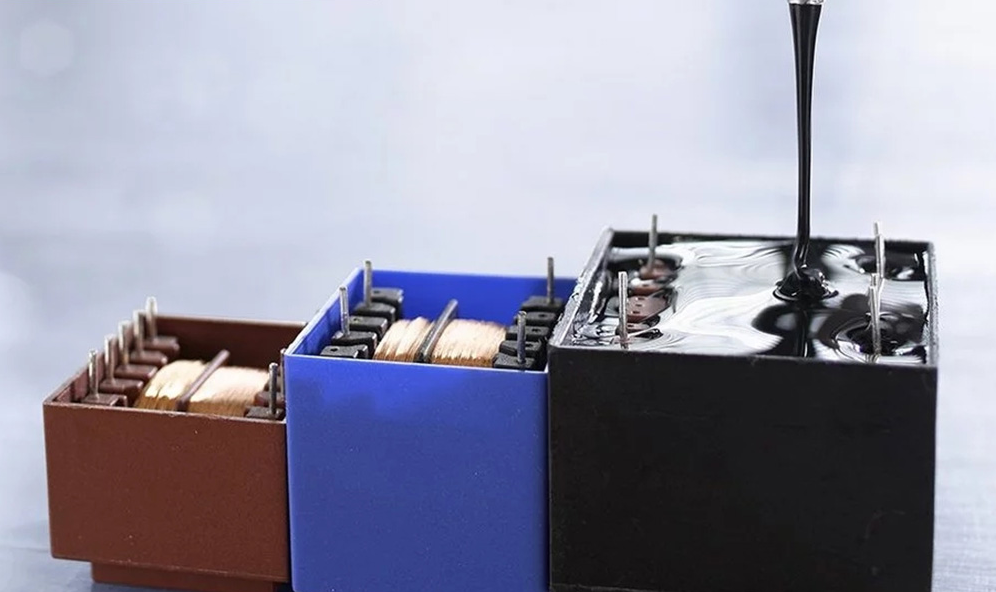

Potting compounds are materials used to encapsulate electronic components. They provide insulation, protection from environmental factors, and mechanical stability. Silicone potting compounds are particularly popular due to their flexibility, thermal stability, and resistance to moisture. However, their strong adhesion and durability can make removal challenging. Understanding the properties of these compounds is crucial for selecting the right removal method.
1. Silicone Gel: This type of potting compound is soft and flexible, making it relatively easy to remove. It is often used in applications where a degree of movement is expected, as it can absorb shocks and vibrations without cracking.
2. Polyester Resin: Polyester resin is more rigid than silicone gel and is often used for applications requiring a stronger bond. While it provides excellent protection, its rigidity can make removal more labor-intensive.
3. Epoxy Resin: Known for its exceptional hardness and durability, epoxy resin is often the most difficult potting compound to remove. It is used in high-stress environments where maximum protection is needed, but this also means that special techniques may be required for removal.
There are several reasons you might need to remove potting compound:
- Repairing Damaged Components: If a component fails, you may need to access it for replacement. This is common in electronic devices where components can wear out over time or become damaged due to environmental factors.
- Upgrading Components: As technology advances, you may want to upgrade certain components to improve performance. This often requires removing the potting compound to access the underlying circuitry.
- Testing and Diagnostics: Accessing the circuit board for testing purposes is essential in troubleshooting electronic devices. Removing the potting compound allows for a thorough inspection and testing of the components.
Tools Needed: Sharp blade (like an X-Acto knife), tweezers, and a flathead screwdriver.
Steps:
- Cut Around the Compound: Use a sharp blade to carefully cut around the edges of the silicone potting compound. This will help to loosen it from the circuit board. Be cautious not to apply too much pressure, as this could damage the board or components.
- Peel Off the Compound: Once you have made cuts, use tweezers or a flathead screwdriver to gently pry the silicone away from the board. This method is effective for softer silicone compounds, where you can often peel away larger sections at once.
Common Solvents: Isopropyl alcohol, acetone, and mineral spirits.
Steps:
- Apply Solvent: Soak a cloth or cotton swab in your chosen solvent and apply it to the silicone potting compound. Ensure that the solvent is suitable for the type of silicone you are dealing with, as some solvents may not be effective.
- Let it Soak: Allow the solvent to penetrate the silicone for several minutes. This will help to soften the material, making it easier to remove. The soaking time may vary depending on the thickness of the silicone.
- Scrape Off the Compound: After soaking, use a blade to scrape off the softened silicone. Be gentle during this process to avoid damaging the underlying components.
Tools Needed: Heat gun or soldering iron.
Steps:
- Heat the Area: Carefully apply heat to the silicone potting compound using a heat gun or soldering iron. Be cautious not to overheat the circuit board, as excessive heat can damage sensitive components.
- Remove the Compound: As the silicone softens, use a blade to peel it away. This method is particularly effective for thicker layers of silicone that may not respond well to solvents.
Steps:
- Boil Water: Bring a pot of water to a boil. This method is particularly useful for silicone potting compounds, as the heat can effectively soften the material.
- Submerge the Component: Carefully place the potted component into the boiling water for a few minutes. The heat will soften the silicone, making it easier to remove.
- Remove and Scrape: Take the component out (using heat-resistant gloves) and scrape off the softened silicone. This method is effective because it uses a natural heat source that is less likely to damage the components.
For complex or sensitive electronics, consider professional services that use advanced techniques like laser ablation or micro-abrasion. These methods can effectively remove potting compounds without damaging the underlying components. Professional services often have access to specialized equipment that can provide a more thorough and safer removal process.
- Wear Protective Gear: Always wear gloves and safety goggles when working with solvents and sharp tools. This will protect you from chemical exposure and potential injuries.
- Work in a Well-Ventilated Area: Ensure proper ventilation when using chemical solvents to avoid inhaling fumes. If possible, work outdoors or in a space with good airflow.
- Handle Components Carefully: Be gentle to avoid damaging sensitive electronic parts. Take your time and use the appropriate tools to minimize the risk of accidents.
Removing silicone potting compound can be a challenging task, but with the right tools and techniques, it can be done effectively. Whether you choose mechanical, chemical, or heat methods, always prioritize safety and take your time to avoid damaging the components underneath. Understanding the properties of the potting compound and the best removal methods will ensure that you can successfully access and repair your electronic devices.
Potting compounds are used to encapsulate electronic components, providing protection from moisture, dust, and mechanical stress. They are essential in ensuring the longevity and reliability of electronic devices.
Not all solvents are effective. Common options include isopropyl alcohol, acetone, and mineral spirits. It's important to choose a solvent that is compatible with the specific type of silicone you are dealing with.
Yes, but it requires careful handling to avoid damaging the board or components. Using the right tools and techniques can help minimize the risk of damage.
Typically, a few minutes is sufficient, but it may vary depending on the thickness of the silicone. Always check the manufacturer's recommendations for the best results.
Consider using heat or professional removal services for stubborn silicone potting compounds. These methods can provide a more effective solution without risking damage to the components.
