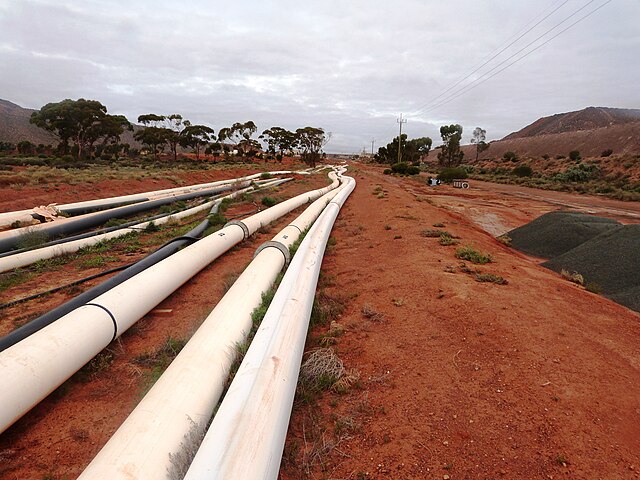

Water pipelines are essential infrastructure for modern communities, forming a network of tubes that transport water from its source to end-users, such as households and businesses[7]. These systems are crucial for delivering potable water from centralized treatment plants or wells to consumers, satisfying residential, commercial, industrial, and fire-fighting requirements[1].
A water distribution system is a part of a water supply network that carries potable water from a centralized treatment plant or wells to consumers[1]. The water distribution network refers to the portion of the water distribution system up to the service points of bulk water consumers or demand nodes, where many consumers are grouped together[1]. The World Health Organization (WHO) distinguishes between a water transmission system, which conveys water from treatment plants to service reservoirs via a tree-like network of pipes, and a water distribution system, which supplies water from service reservoirs and balancing reservoirs to consumers through a looped network of pipes[1].
A water distribution system comprises several key components[1]:
* Pipelines: These are the conduits that transport water within the distribution system. They include:
* Water mains: Pipelines laid within public rights-of-way[1].
* Primary feeders: Large-diameter water mains connecting water treatment plants and service areas[1].
* Secondary feeders: Pipelines connecting primary feeders and distributors[1].
* Distributors: Water mains located near water users that also supply water to individual fire hydrants[1].
* Service lines: Small-diameter pipes connecting a water main to a water meter at a user's location[1].
* Service valve (curb stop): A valve on the service line near the street curb to shut off water to the user's location[1].
* Storage Facilities: These distribution reservoirs store clean drinking water after treatment to ensure the system can meet fluctuating demands and equalize operating pressure[1]. They can also temporarily supply water for firefighting during power outages[1]. Types of distribution reservoirs include service reservoirs and balancing reservoirs[1].
* Pumps: Pumps are used to boost water through the pipeline, ensuring a steady flow, especially over long distances[7].
* Other Accessories: These include valves, joints, flowmeters, and other control devices necessary for the efficient operation of the pipeline[4][9].
Pipelines can be categorized based on various factors, including manufacturing materials, transported substances, and functional roles within the network[6].
* Steel: Steel pipes are known for their strength and durability, making them suitable for high-pressure applications and long-distance water transmission[6][7].
* Ductile Iron: Ductile iron pipes offer a good balance of strength, corrosion resistance, and ease of installation[6].
* Concrete: Concrete pipelines are typically used for large-diameter water mains and offer excellent structural integrity[6][7].
* PVC (Polyvinyl Chloride): PVC pipes are lightweight, corrosion-resistant, and cost-effective, making them ideal for distribution networks[7].
* Transmission Piping: These pipelines transport large volumes of water from the source to the distribution system[3].
* Distribution Piping: These pipes distribute water throughout the system, typically ranging from 4 to 24 inches in diameter, with the most common sizes being 8 to 12 inches[3].
* Service Piping: These are the small-diameter pipes that connect the distribution system to individual customers[3].
Pipeline design involves several critical considerations[9]:
* Route Selection: Choosing the most feasible route, considering environmental impact and accessibility[7].
* Throughput Determination: Calculating the amount of fluid or solids to be transported[9].
* Operational Velocity: Determining the optimal velocity of the water flow[9].
* Pressure Gradient Calculation: Ensuring the pipeline can handle the pressure[7][9].
* Equipment Selection: Choosing appropriate pumps, valves, and other control devices[9].
* Material Selection: Determining the appropriate pipe material based on factors like cost, durability, and corrosion resistance[9].
* Economic Analysis: Conducting a cost-benefit analysis to determine the most economical design[9].
Pipelines play a crucial role in transporting water for various purposes[4]:
* Drinking Water: Ensuring the supply of potable water from treatment plants to households[4].
* Irrigation: Delivering water for agricultural purposes[10].
* Industrial Use: Providing water for various industrial processes[1].
* Fire Fighting: Ensuring an adequate water supply for firefighting operations[1].
Pipelines offer several advantages over other modes of transportation[4]:
* Environmental Impact: Pipelines are less damaging to the environment compared to other modes of transport[4].
* Theft Prevention: They are less susceptible to theft[4].
* Cost-Effectiveness: Pipelines are more economical than transporting water via truck or rail[4].
* Safety: They are a safe and reliable mode of transportation[4].
* Convenience: Pipelines offer a convenient way to transport water over long distances[4].
Despite their advantages, water pipelines also present several challenges[7]:
* Construction Costs: Building water pipelines involves significant expenses for materials, labor, and logistical challenges[7].
* Maintenance: Regular maintenance is essential to prevent leaks and ensure the system operates efficiently[7].
* Corrosion: Internal corrosion of metal pipes can be controlled using chemicals like hydrazine and sodium sulfite[9].
* Environmental Concerns: Careful consideration must be given to environmental impacts during route selection and construction[9].
Various materials are used in the construction of water pipelines, each with its own advantages and disadvantages[7]:

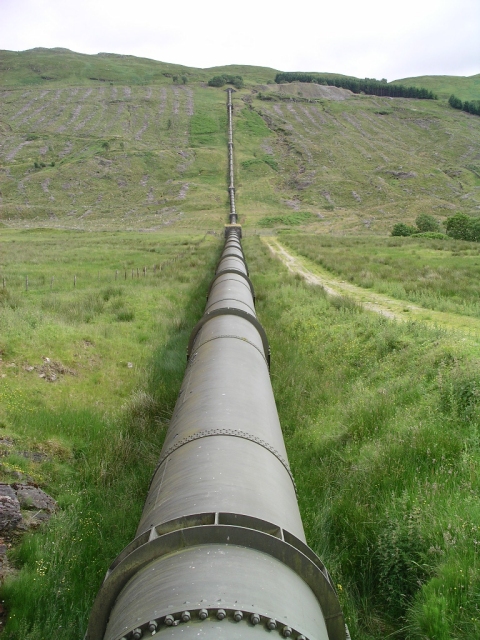

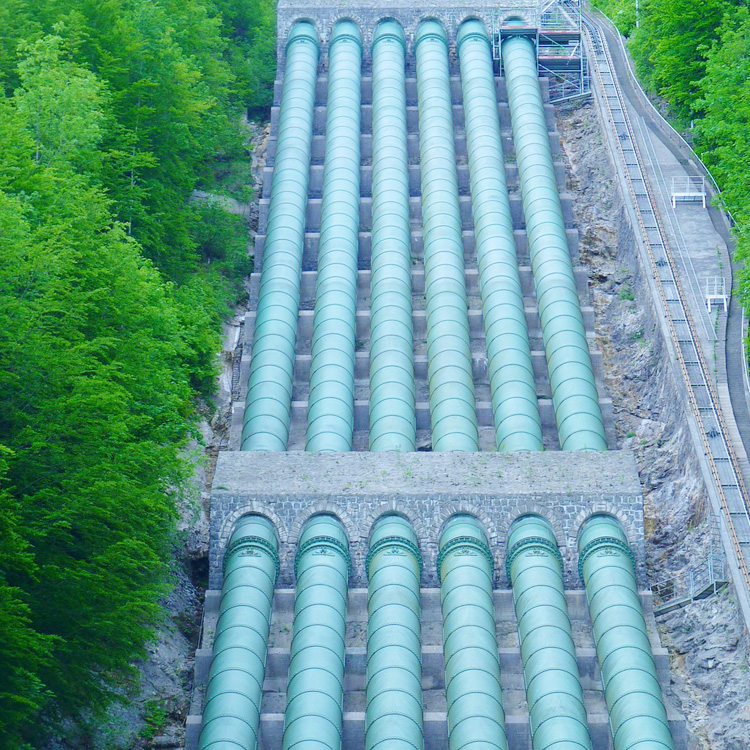

* Steel: Known for its high strength and durability, steel is commonly used for large-diameter transmission pipelines[6][7]. Steel pipelines can withstand high pressures and are suitable for transporting water over long distances[6]. However, steel is susceptible to corrosion, so it often requires protective coatings or cathodic protection[9].
* Ductile Iron: Ductile iron pipes offer a good balance of strength, corrosion resistance, and ease of installation[6]. They are often used for distribution mains and offer a longer lifespan compared to cast iron pipes[6].
* Concrete: Concrete pipelines are typically used for large-diameter water mains and offer excellent structural integrity[6][7]. They are resistant to corrosion and can provide a long service life. However, concrete pipes can be heavy and more challenging to install[6].
* PVC (Polyvinyl Chloride): PVC pipes are lightweight, corrosion-resistant, and cost-effective, making them ideal for distribution networks[7]. PVC is easy to install and resistant to many chemicals found in soil and water[7]. However, PVC pipes are not as strong as steel or ductile iron and may not be suitable for high-pressure applications[7].
* HDPE (High-Density Polyethylene): HDPE pipes are flexible, corrosion-resistant, and suitable for trenchless installation methods[7]. They are often used in areas with unstable soil or where minimal disruption to the surface is required[7]. HDPE pipes are also resistant to freezing and thawing, making them suitable for cold climates[7].

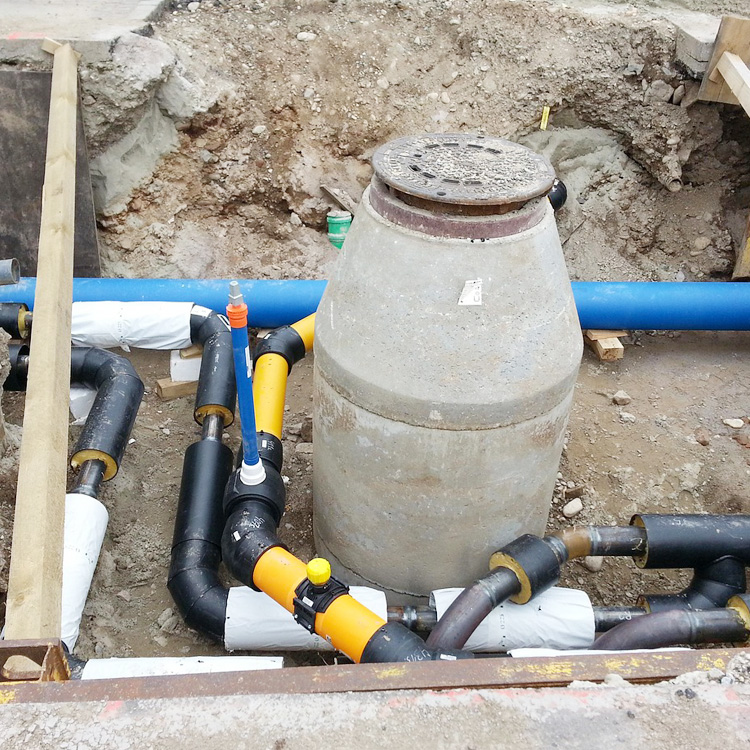

The construction of a water pipeline involves meticulous planning, resource allocation, and adherence to safety standards[7]. The process typically includes the following steps[7]:
1. Planning and Design: Engineers conduct surveys to choose the most feasible route, considering environmental impact and accessibility[7].
2. Site Preparation: Clearing the land and preparing the trench for the pipeline[7].
3. Pipe Installation: Laying the pipes in the trench and connecting them using welding or mechanical joints[4].
4. Testing: Testing the pipeline for leaks and structural integrity[9].
5. Backfilling: Covering the pipeline with soil and restoring the surface[4].
Regular maintenance and inspection are crucial for ensuring the long-term reliability and efficiency of water pipelines[7]. Common maintenance practices include[7]:
* Leak Detection: Identifying and repairing leaks to minimize water loss[7].
* Corrosion Control: Implementing measures to prevent or mitigate corrosion[9].
* Valve Maintenance: Inspecting and maintaining valves to ensure proper operation[4].
* Cleaning: Removing sediment and debris from the pipeline to maintain flow capacity[2].
* Inspection: Conducting regular inspections to identify potential problems before they become major issues[9].
Several trends are shaping the future of water pipelines[4]:
* Smart Pipelines: Implementing sensors and data analytics to monitor pipeline performance and detect leaks[9].
* Trenchless Technology: Using trenchless methods to minimize disruption during installation and repair[7].
* Sustainable Materials: Exploring the use of sustainable and environmentally friendly materials[4].
* Water Reuse: Integrating pipelines into water reuse systems to transport recycled water[10].
Water pipelines are a vital component of modern infrastructure, delivering water to homes, businesses, and industries[7]. Understanding the various aspects of water pipelines, from their components to their construction and maintenance, is essential for ensuring a reliable and sustainable water supply for communities[4].
Related Questions and Answers
Q1: What is the purpose of a water distribution system?
A1: A water distribution system carries potable water from a centralized treatment plant or wells to consumers to satisfy residential, commercial, industrial, and firefighting requirements[1].
Q2: What are the main components of a water distribution system?
A2: The main components include pipelines, storage facilities, pumps, and other accessories such as valves and control devices[1][4].
Q3: What materials are commonly used for water pipelines?
A3: Common materials include steel, ductile iron, concrete, and PVC[6][7].
Q4: Why is regular maintenance important for water pipelines?
A4: Regular maintenance is essential to prevent leaks, control corrosion, and ensure the system operates efficiently without interruptions[7].
Q5: What are some future trends in water pipeline technology?
A5: Future trends include the use of smart pipelines with sensors, trenchless technology for installation and repair, and sustainable materials[7][9].
