What is a Cylindrical Cell? Understanding the Basics of This Essential Battery Type
Cylindrical cells are a fundamental component in the world of batteries, playing a crucial role in powering a wide range of devices, from portable electronics to electric vehicles. Their unique shape and design offer several advantages, making them a popular choice for various applications. This article will explore what a cylindrical cell is, its construction, types, applications, and the benefits it provides in energy storage and power delivery.
A cylindrical cell is a type of electrochemical cell characterized by its cylindrical shape. It consists of a positive electrode (cathode), a negative electrode (anode), an electrolyte, and a separator. The cylindrical design allows for efficient packing of materials, making it suitable for high-energy-density applications. Cylindrical cells are commonly used in rechargeable batteries, such as lithium-ion and nickel-metal hydride (NiMH) batteries, as well as in primary (non-rechargeable) batteries like alkaline cells.
The anode is the negative electrode of the cell, where oxidation occurs during the discharge process. In lithium-ion cylindrical cells, the anode is typically made of graphite, which allows for the intercalation of lithium ions.
The cathode is the positive electrode, where reduction takes place. The materials used for the cathode vary depending on the type of battery. For example, lithium cobalt oxide (LiCoO2) is commonly used in lithium-ion cells, while nickel oxyhydroxide is used in NiMH cells.
The electrolyte is a conductive medium that allows ions to move between the anode and cathode. In lithium-ion batteries, the electrolyte is usually a lithium salt dissolved in an organic solvent, while in alkaline batteries, it is typically a potassium hydroxide solution.
The separator is a porous membrane that physically separates the anode and cathode while allowing ions to pass through. It prevents short circuits by ensuring that the electrodes do not come into direct contact with each other.
The cylindrical cell is housed in a metal canister, usually made of steel or aluminum, which provides structural integrity and protection against physical damage.
Cylindrical cells come in various sizes and chemistries, each designed for specific applications. Here are some common types of cylindrical cells:

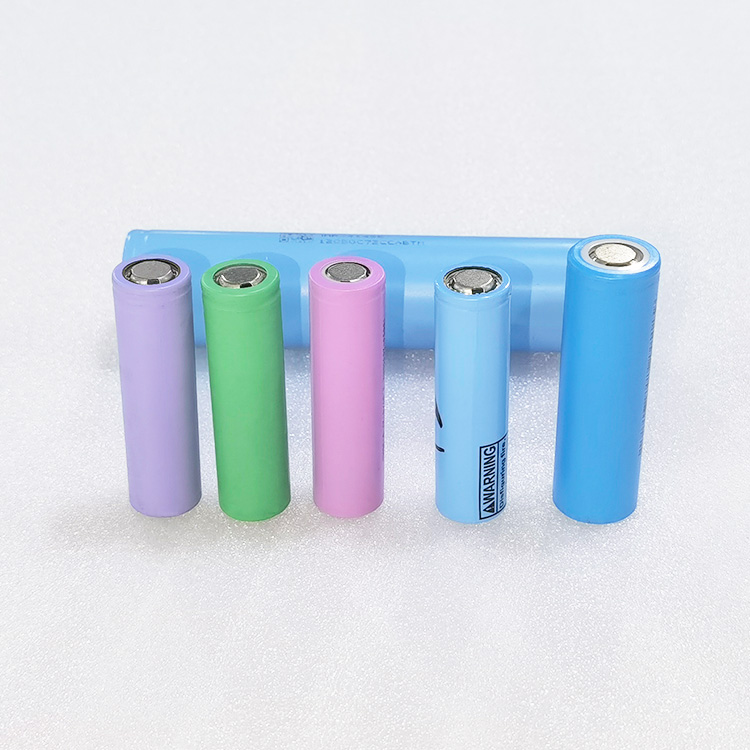

One of the most popular cylindrical cell sizes, the 18650 cell has a diameter of 18 mm and a length of 65 mm. It is widely used in laptops, electric vehicles, and portable power tools due to its high energy density and capacity.
Slightly larger than the 18650, the 21700 cell has a diameter of 21 mm and a length of 70 mm. It has gained popularity in electric vehicles and high-performance applications due to its increased capacity and energy density.
These are common cylindrical cells used in household batteries. AA cells have a diameter of 14.5 mm and a length of 50.5 mm, while AAA cells are smaller, with a diameter of 10.5 mm and a length of 44.5 mm. They are typically used in remote controls, flashlights, and other portable devices.
These lithium primary cells are commonly used in cameras, flashlights, and security systems. They have a diameter of 17 mm and a length of 34.5 mm, providing a high energy density in a compact form.
These larger cylindrical cells are often used in applications requiring higher current draw, such as flashlights and portable radios. C cells have a diameter of 26.2 mm and a length of 50 mm, while D cells are larger, with a diameter of 34.2 mm and a length of 61.5 mm.
Cylindrical cells are used in a wide range of applications due to their versatility and performance characteristics. Some common applications include:
Cylindrical cells are widely used in laptops, smartphones, tablets, and other portable electronic devices. Their high energy density and compact size make them ideal for powering these devices.
Many electric vehicles utilize cylindrical cells, particularly the 18650 and 21700 formats, in their battery packs. These cells provide the necessary energy storage and power delivery for electric propulsion.
Cordless power tools often use cylindrical cells due to their ability to deliver high currents and maintain performance over extended periods.
Cylindrical cells are used in various medical devices, including portable diagnostic equipment and implantable devices, where reliability and compactness are essential.
Cylindrical cells are increasingly being used in energy storage systems for solar and wind power applications, allowing for the efficient storage and use of renewable energy.
Cylindrical cells offer several advantages that make them a popular choice for various applications:
Cylindrical cells, particularly lithium-ion cells, provide high energy density, allowing for more energy storage in a compact form factor. This is crucial for applications where space is limited.
The cylindrical shape provides structural integrity, making these cells resistant to physical damage and deformation. This robustness is essential for applications in demanding environments.
The cylindrical design allows for better heat dissipation compared to other shapes, reducing the risk of overheating during operation.
Cylindrical cells can be easily scaled up or down in size, allowing manufacturers to create battery packs with varying capacities to meet specific application requirements.
The popularity of cylindrical cells has led to a wide range of options available in the market, making it easier for manufacturers to source components for their products.
Cylindrical cells are a vital component in modern energy storage and power delivery systems. Their unique design, high energy density, and robust construction make them suitable for a wide range of applications, from consumer electronics to electric vehicles. Understanding the structure, types, and benefits of cylindrical cells is essential for anyone involved in battery technology or energy storage solutions. As technology continues to advance, cylindrical cells will play an increasingly important role in powering the devices and systems of the future, contributing to a more sustainable and electrified world.
