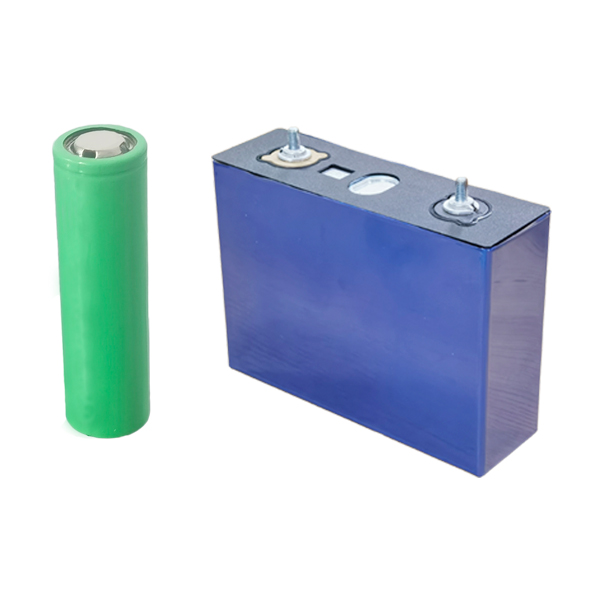

What Is the Difference Between Lithium Prismatic Cells and Cylindrical Cells?
Lithium-ion batteries have revolutionized the energy storage industry, powering everything from smartphones to electric vehicles (EVs) and renewable energy systems. However, not all lithium-ion cells are created equal. Two of the most common cell formats are prismatic and cylindrical cells. While both serve as building blocks for lithium-ion batteries, they have distinct characteristics that make them suitable for different applications. This article explores the differences between lithium prismatic cells and cylindrical cells, shedding light on their respective advantages and drawbacks.
Before diving into the differences, it is essential to understand what prismatic and cylindrical cells are.

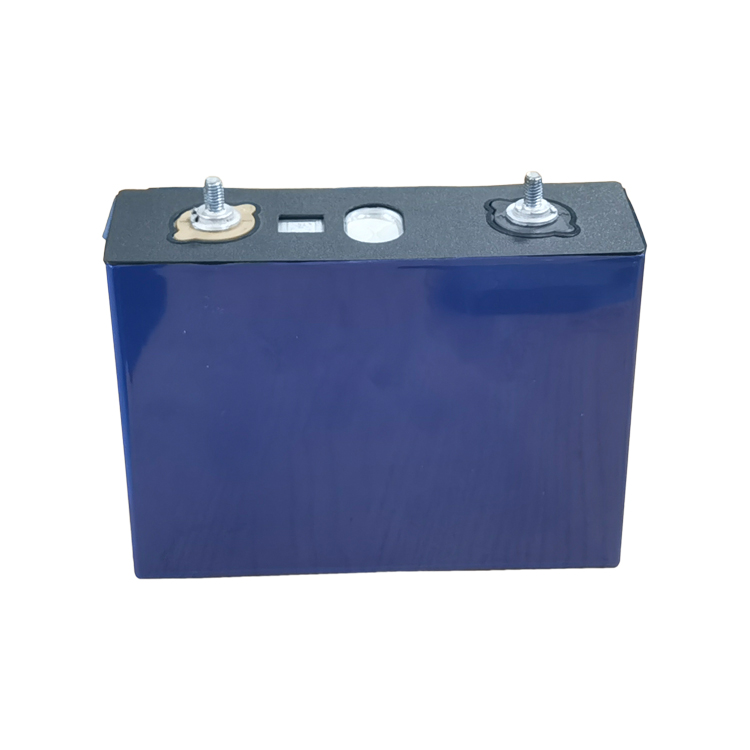

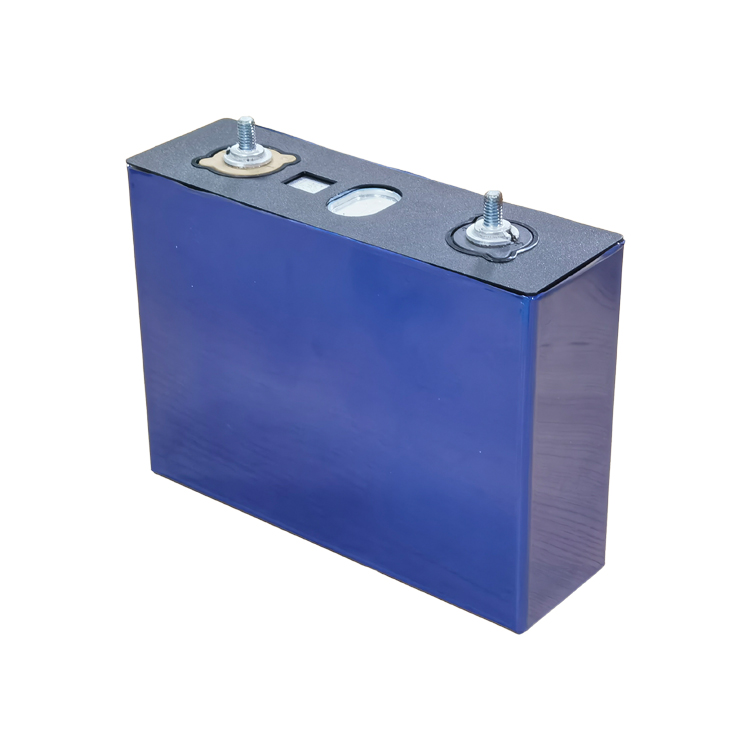

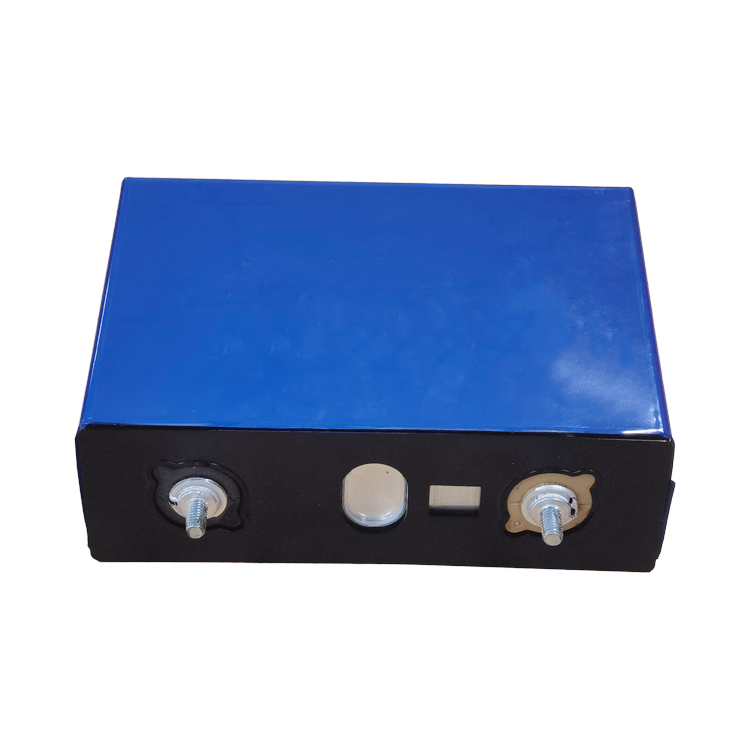

These cells have a flat, rectangular shape, typically encased in aluminum or steel. They are often used in applications requiring high energy densities and compact designs, such as electric vehicles and portable electronics.

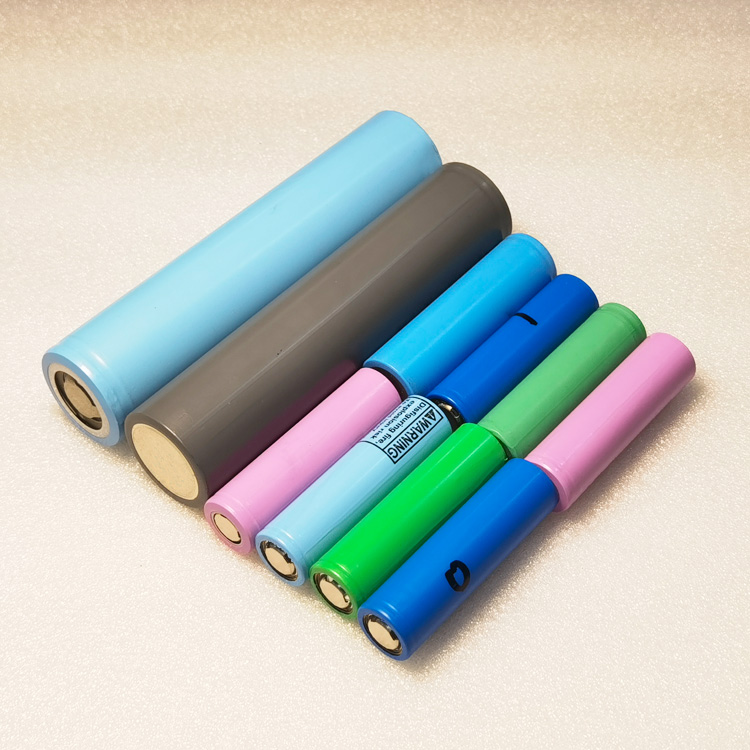

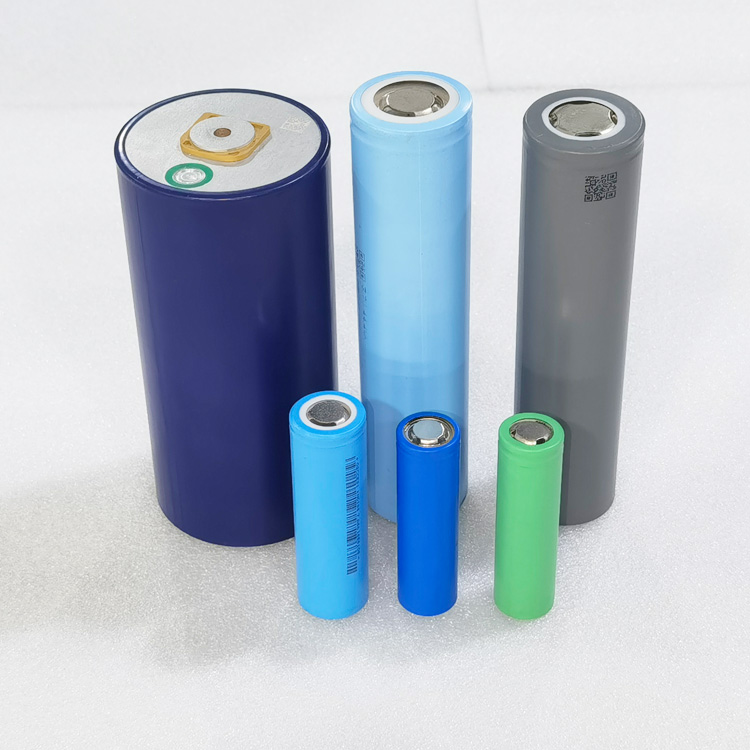

As the name suggests, these cells have a cylindrical shape and are encased in a rigid metal shell. Standard sizes, such as 18650 and 21700, are widely used in consumer electronics, power tools, and even EVs.
Shape and Design
Cylindrical Cells: Their round shape provides inherent structural integrity, making them highly resistant to deformation under pressure. The symmetrical design also allows for even distribution of internal pressure, enhancing durability.
Prismatic Cells: Prismatic cells have a rectangular shape, which makes them more space-efficient in tightly packed battery modules. However, their flat surfaces and edges are more prone to swelling and deformation over time compared to cylindrical cells.
Size Flexibility
Cylindrical Cells: Cylindrical cells come in standardized sizes, such as 18650 and 21700, which simplifies manufacturing and assembly processes. This standardization also makes them easier to source and replace.
Prismatic Cells: Prismatic cells can be custom-designed to fit specific applications, offering greater flexibility in terms of size and capacity. However, this customization often leads to higher manufacturing costs.
Energy density refers to the amount of energy a cell can store relative to its size or weight.
Cylindrical Cells: Cylindrical cells have slightly lower energy density compared to prismatic cells, mainly due to the unused space between cells when assembled in battery packs. However, advances in technology, such as the 21700 format, have significantly improved their energy density.
Prismatic Cells: Prismatic cells generally offer higher energy density because their rectangular shape allows for more efficient use of space in a battery pack. This makes them ideal for applications where maximizing energy storage in a compact area is critical.
Thermal management is crucial for battery performance, lifespan, and safety.
Cylindrical Cells: The cylindrical shape allows for better heat dissipation, as the rounded design facilitates even thermal distribution. Additionally, the gaps between cells in a battery pack can be used for cooling systems, improving thermal regulation.
Prismatic Cells: Prismatic cells, with their tightly packed design, can make heat dissipation more challenging. This increases the risk of hotspots and thermal runaway if not managed properly. Advanced cooling techniques are often required to address this issue in prismatic cell applications.
Cylindrical Cells: The robust metal casing of cylindrical cells provides excellent protection against physical damage, making them more durable under stress. They are also less prone to swelling, which contributes to a longer lifespan.
Prismatic Cells: While prismatic cells are space-efficient, their flat design makes them more susceptible to swelling and mechanical damage over time. This can negatively impact their longevity, particularly in high-stress applications.
Cylindrical Cells: The standardized production process for cylindrical cells makes them more cost-effective. Mass production has been optimized over decades, resulting in high consistency and lower costs per unit.
Prismatic Cells: Prismatic cells are typically more expensive to produce due to their custom designs and complex manufacturing processes. The higher costs can be justified for applications requiring specific shapes or energy densities.
Cylindrical cells are commonly used in:
Consumer electronics (e.g., laptops, power banks)
Power tools
Electric vehicles (notably Tesla uses cylindrical cells)
Renewable energy storage systems
Prismatic cells are commonly used in:
Electric vehicles (e.g., passenger cars, buses)
Portable electronics (e.g., tablets, medical devices)
Large-scale energy storage systems
Cylindrical cells often include built-in safety mechanisms such as pressure relief valves and thermal cut-offs. Their rigid casing also provides additional safety against external damage.
While prismatic cells can incorporate safety features, their larger size and flat design make them more vulnerable to internal short circuits and swelling, increasing the complexity of ensuring safety.
Advantages:
Robust and durable design
Standardized sizes simplify production
Better thermal management
Cost-effective
Disadvantages:
Lower energy density compared to prismatic cells
Inefficient use of space in battery packs
Advantages:
Higher energy density
Space-efficient design
Customizable for specific applications
Disadvantages:
Higher production costs
Prone to swelling and mechanical damage
Challenging thermal management
The choice between lithium prismatic cells and cylindrical cells ultimately depends on the specific requirements of the application. Cylindrical cells are a reliable and cost-effective option for applications where durability, scalability, and thermal management are priorities. On the other hand, prismatic cells are better suited for applications that demand high energy density and compact designs, despite their higher costs and thermal challenges.
Both formats have their strengths and weaknesses, and ongoing advancements in battery technology are continually narrowing the gaps between them. As industries like electric vehicles and renewable energy continue to grow, the demand for both prismatic and cylindrical cells will remain strong, each serving its unique role in powering the future.
