Potting compounds are widely used in electronics to protect sensitive components from moisture, dust, and mechanical stress. However, there are times when you may need to remove this compound for repairs or modifications. This article will guide you through various methods to effectively remove potting compound from electronics, ensuring you can access the components safely and efficiently.

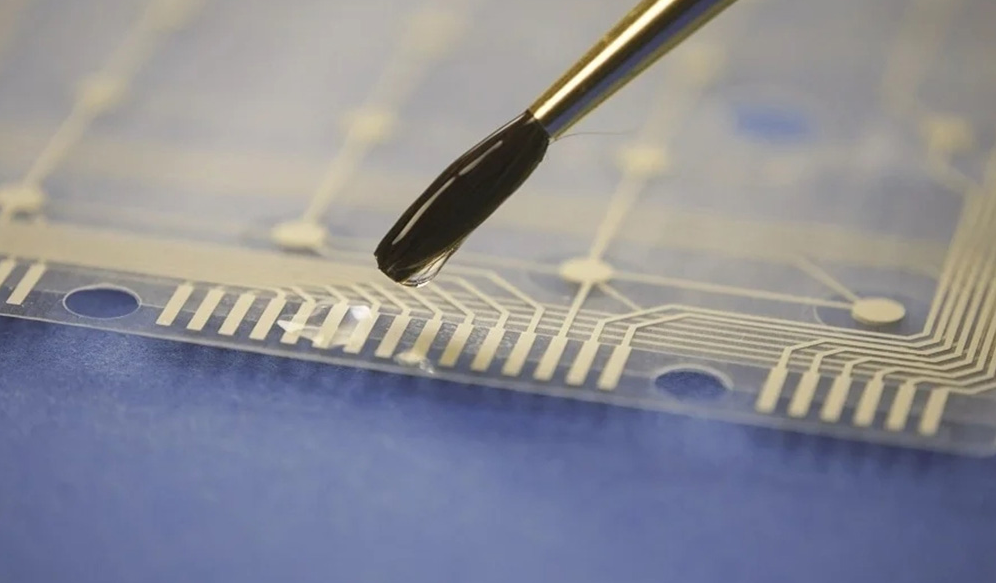

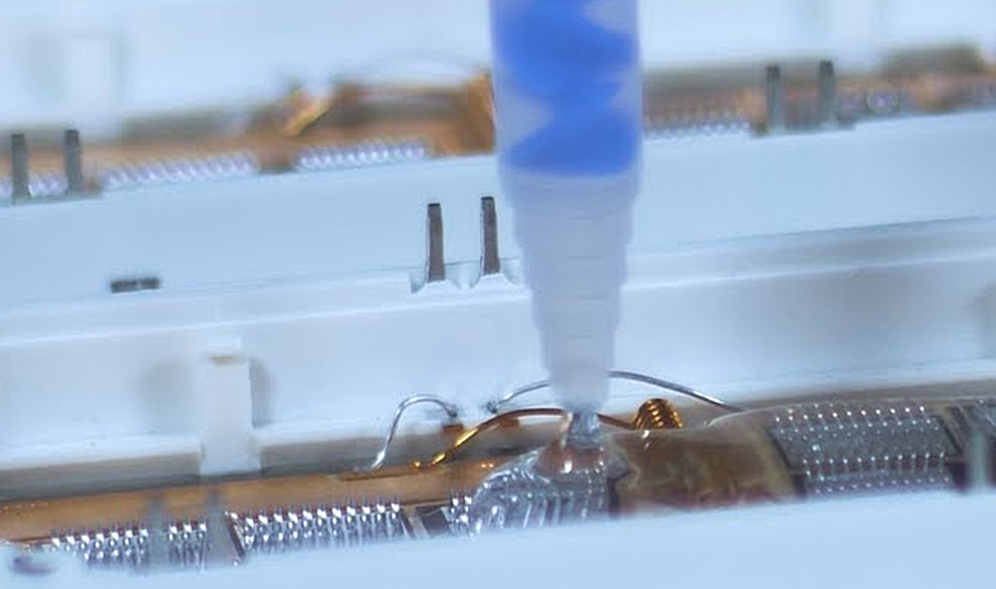

Potting compounds are materials used to encapsulate electronic components. They can be made from various substances, including epoxy, silicone, and polyurethane. These compounds provide excellent protection but can be challenging to remove once cured.
Potting compounds serve several critical functions in electronic devices. They not only protect against environmental factors such as moisture and dust but also provide mechanical support to delicate components, preventing them from vibrating or moving during operation. This encapsulation can significantly enhance the longevity and reliability of electronic devices, making potting compounds essential in industries ranging from automotive to consumer electronics. Understanding the properties of different potting materials can help you choose the right method for removal.
1. Repairing Damaged Components: If a component fails, you may need to access it for repair. This is particularly common in devices that have experienced physical damage or electrical failure.
2. Upgrading Electronics: Sometimes, upgrading components requires removing the potting material. As technology advances, older components may need to be replaced with newer, more efficient versions.
3. Recycling: For environmental reasons, you may want to recycle electronic parts. Removing potting compounds can facilitate the recycling process, allowing for the recovery of valuable materials.
Mechanical removal involves physically scraping or cutting away the potting compound. This method is straightforward but requires caution to avoid damaging the underlying components.
- Utility knife or box cutter
- Small chisel or scraper
- Pliers
- Safety goggles
1. Inspect the Device: Identify the areas where the potting compound is applied. Understanding the layout of the components will help you avoid damaging them during removal.
2. Use a Utility Knife: Carefully cut around the edges of the potting compound. Make shallow cuts to minimize the risk of damaging the circuit board or components.
3. Scrape Away the Compound: Use a chisel or scraper to gently pry off the potting material. Work slowly and methodically to ensure you remove the compound without harming the electronics.
4. Be Cautious: Avoid applying too much force, as this can damage the electronic components. If you encounter resistance, consider switching to another removal method.
Applying heat can soften potting compounds, making them easier to remove. This method is particularly effective for epoxy-based compounds, which tend to become pliable when heated.
- Heat gun or hairdryer
- Heat-resistant gloves
- Scraper
1. Heat the Compound: Use a heat gun to apply heat to the potting compound. Keep the gun moving to avoid overheating any one area, which could damage the components.
2. Scrape Off the Material: Once the compound softens, use a scraper to remove it. The heat will make the material more malleable, allowing for easier removal.
3. Repeat as Necessary: You may need to reapply heat several times to fully remove the compound. Be patient and take your time to ensure a thorough job.
Chemical solvents can dissolve potting compounds, making them easier to remove. However, it's essential to choose the right solvent based on the type of potting compound.
- Acetone: Effective for many types of potting compounds, acetone can break down the bonds in epoxy and other materials.
- Isopropyl Alcohol (IPA): Useful for softening some compounds, IPA is less aggressive than acetone and can be a safer choice for delicate components.
- Xylene: Works well for tougher materials, but it is more toxic and should be used with caution.
1. Apply the Solvent: Soak a cloth in the chosen solvent and apply it to the potting compound. Ensure the solvent saturates the material for effective penetration.
2. Let it Sit: Allow the solvent to penetrate for several minutes. This waiting period is crucial for the solvent to break down the potting material.
3. Scrape Away the Compound: Use a scraper to remove the softened material. If necessary, reapply the solvent and repeat the process until all the potting compound is removed.
Using cold temperatures can make potting compounds brittle, allowing for easier removal. This method is particularly effective for silicone-based compounds, which tend to become fragile when exposed to extreme cold.
- Dry ice or liquid nitrogen
- Hammer or chisel
1. Apply Cold: Place dry ice or liquid nitrogen on the potting compound for a few minutes. The extreme cold will cause the material to contract and become brittle.
2. Chisel Away: Once the compound is brittle, use a chisel or hammer to break it away. The cold will make it easier to chip off the material without damaging the underlying components.
This method involves using boiling water to soften the potting compound, making it easier to remove. It is a safe and effective technique, especially for certain types of epoxy.
1. Boil Water: Bring a pot of water to a boil. Ensure you have enough water to submerge the device completely.
2. Submerge the Device: Carefully place the potted device in the boiling water for a few minutes. The heat will soften the potting compound, making it easier to remove.
3. Remove and Scrape: Take the device out (using heat-resistant gloves) and scrape off the softened potting compound. Be cautious of any residual heat.
- Wear Protective Gear: Always wear safety goggles and gloves when working with solvents or sharp tools. This will protect your eyes and skin from potential harm.
- Work in a Ventilated Area: Ensure good ventilation when using chemical solvents to avoid inhaling fumes. If possible, work outdoors or in a well-ventilated workshop.
- Handle Hot Materials Carefully: Use heat-resistant gloves when working with hot tools or boiling water. Be mindful of your surroundings to prevent accidents.
Removing potting compound from electronics can be a challenging task, but with the right methods and tools, it can be done effectively. Whether you choose mechanical, thermal, chemical, or cold methods, always prioritize safety and take your time to avoid damaging the components. Understanding the properties of the potting compound you are dealing with will also help you select the most appropriate removal method.
- Potting compound is a material used to encapsulate electronic components for protection against environmental factors. It is designed to enhance the durability and reliability of electronic devices.
- No, it's essential to choose a solvent compatible with the specific type of potting compound. Using the wrong solvent can damage the components or be ineffective in removing the material.
- Yes, but it requires caution to avoid damaging the underlying components. Always inspect the device and work slowly to minimize the risk of harm.
- Consider using heat or chemical solvents to soften the compound before attempting removal. If necessary, combine methods for the best results.
- Yes, as long as the components are undamaged and functional after removal. Proper removal techniques can help preserve the integrity of the components.
